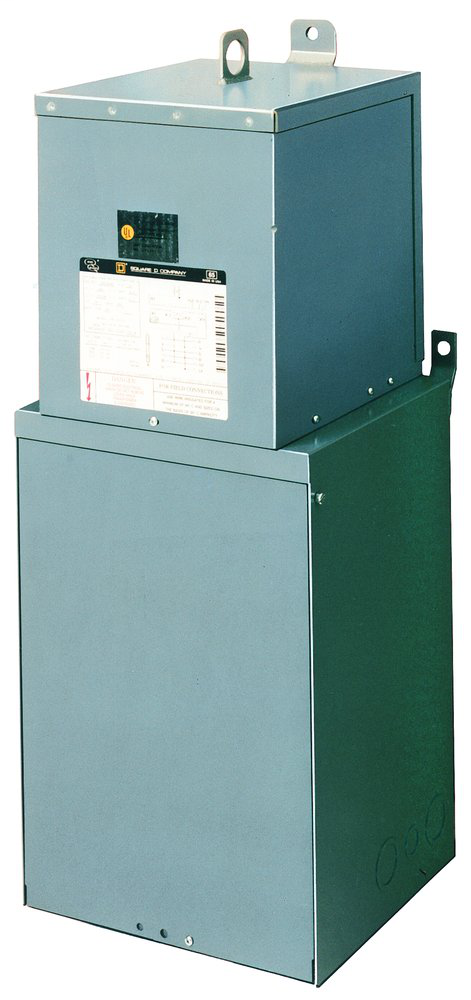

Square D™ MPZ25S40F MINI POWER-ZONE DRY 2
Mini Power Centers
99824
MFG #: MPZ25S40F
Square D™
14515.36000
/ ea
Square D MPZ25S40F MINI POWER-ZONE DRY 25KVA 480V-120/240V,1 phase,115C,120/240Vac,18 kAIR,185 deg.C,25 kVA,480Vac,Mini Power-Zone,Provides the requirements for a portable, compact power supply for small loads,Sealed Transformer,Standard Hot-Rolled Steel (powder coat painted) NEMA 3R - Rainproof and Ice/Sleet proof (Indoor/Outdoor),UL Listed,copper
- 360 Degree View URL(360 Degree View URL)
- Brochure URL - ab9c09c1053c310d7eaec36d39ae02f23f7f6099.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_eac2ccb2302aed78a3c3ef51d87828d39c49d0bbfd5557d9a7dca64f00431fe3.pdf(Catalog URL)
- Line Drawing URL - Square_D_MPZB15S40F_Line_Drawing.pdf(Line Drawing URL)
- ROHS Compliance URL - Square_D_MPZ25S40F_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - f6a8795e9a2e5d54e0b24c5ee72807d2389bc1b8.pdf(Spec Sheet URL)
- Tech Bulletin URL - b92bca6e605679553dcc83d8b500d89f0a1361cb.pdf(Tech Bulletin URL)
- Tech Drawing URL - 3643(Tech Drawing URL)
- Applications
- Features
| PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS |
| SEALED TRANSFORMER,COPPER |
| Standard steel or stainless steel enclosure - both type 3R enclosure |
| Device can be disassembled in the field for easier installation |
| Leverage standard schneider electric powerpact breakers for primary disconnect |
| Standard low voltage general purpose transformers |
| Secondary load center or NQ interior - with field installed QO branch breakers |
| Power coated painted |
| Copper winding |
| B enclosure code |
