Square D™

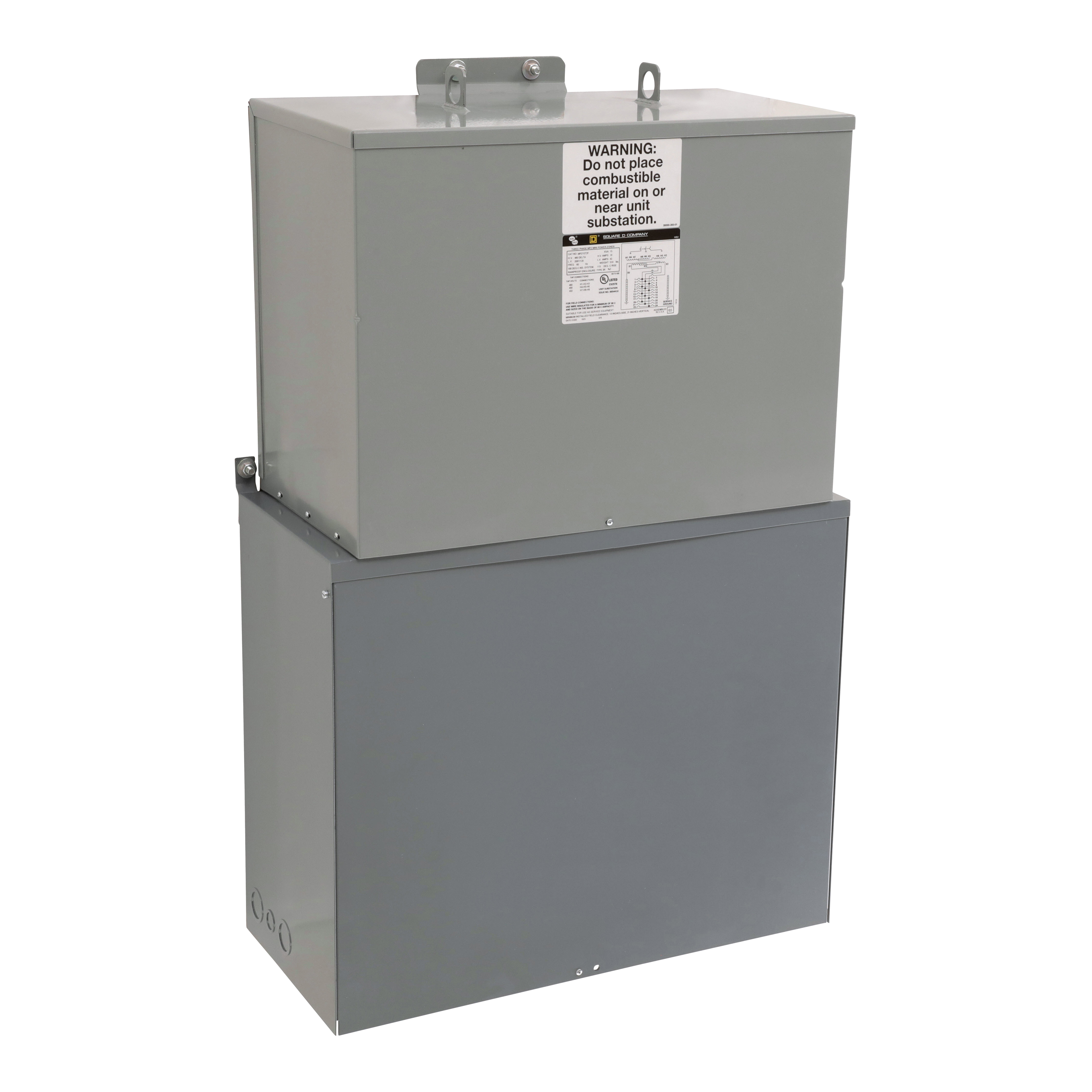

Square D™ MPZ15T2F MINI PWR-ZONE DRY 3P 1
Custom_Product_Images_Illustration
Square D™
Square D™ MPZ15T2F MINI PWR-ZONE DRY 3P 1
SKU99825
MFGR #MPZ15T2F
Your Cost: $15,317.05/ea
Square D MPZ15T2F MINI PWR-ZONE DRY 3P 15KVA 480V-208Y/120,(2) 5 FCBN,115deg.C,15 kVA,18 kAIR,185 deg.C,208Y/120Vac,3 phases,480Vac,Mini Power-Zone,Provides the requirements for a portable, compact power supply for small loads,Sealed Transformer,Standard Hot-Rolled Steel (powder coat painted) NEMA 3R - Rainproof and Ice/Sleet proof (Indoor/Outdoor),UL Listed,copper
Square D MPZ15T2F MINI PWR-ZONE DRY 3P 15KVA 480V-208Y/120,(2) 5 FCBN,115deg.C,15 kVA,18 kAIR,185 deg.C,208Y/120Vac,3 phases,480Vac,Mini Power-Zone,Provides the requirements for a portable, compact power supply for small loads,Sealed Transformer,Standard Hot-Rolled Steel (powder coat painted) NEMA 3R - Rainproof and Ice/Sleet proof (Indoor/Outdoor),UL Listed,copper
Alternate Catalog Number MPZ15T2F Application PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS ARRA Compliant N Buy American Compliant N Catalog Number MPZ15T2F Circuit Type Primary Main Breaker/Secondary Main Breaker/Feeder Breaker Country of Origin US Dimensions 27.4 in W x 13.6 in D x 45 in H Enclosure C Enclosure Type NEMA 3R EU RoHS Indicator Y Fuse Rating FEEDER BREAKER-PRIMARY MAIN BREAKER-SECONDARY MAIN BREAKER Gross Volume Per Pack 20102.00 Gross Volume per Pack Metric 329411.47 Gross Weight Per Pack 510.0000 lb Gross Weight per Pack Metric 231.33 Gross Weight UOM Metric kg Height 20.32 in Height [Metric] 52.1000 cm Housing Material Hot-Rolled Steel Insulation 185 Insulation Class 115 Item Group 16275 KVA Rating 15 Length 31.32 in Length [Metric] 80.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456925&lang=en-us Maximum Amperage Rating 40 A Number Of Taps 2 Returnable N Standard UL Listed Sub Brand MINI POWER-ZONE Temperature Rating 115 Type Sealed UNSPSC 39121001 UPC 11 78590183899 UPC 12 785901838999 Warranty Description Contractual Warranty: 18 months Width 47.54 in Width [Metric] 121.9000 cm Winding Copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Phase 3 pH Power Rating 15 kVA Primary Voltage 480 V Secondary Voltage 208Y/120 V PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS SEALED TRANSFORMER,COPPER Standard steel or stainless steel enclosure - both type 3R enclosure Device can be disassembled in the field for easier installation Leverage standard schneider electric powerpact breakers for primary disconnect Standard low voltage general purpose transformers Secondary load center or NQ interior - with field installed QO branch breakers Power coated painted Copper winding C enclosure code
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | MPZ15T2F |
| Application | PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MPZ15T2F |
| Circuit Type | Primary Main Breaker/Secondary Main Breaker/Feeder Breaker |
| Country of Origin | US |
| Dimensions | 27.4 in W x 13.6 in D x 45 in H |
| Enclosure | C |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Fuse Rating | FEEDER BREAKER-PRIMARY MAIN BREAKER-SECONDARY MAIN BREAKER |
| Gross Volume Per Pack | 20102.00 |
| Gross Volume per Pack Metric | 329411.47 |
| Gross Weight Per Pack | 510.0000 lb |
| Gross Weight per Pack Metric | 231.33 |
| Gross Weight UOM Metric | kg |
| Height | 20.32 in |
| Height [Metric] | 52.1000 cm |
| Housing Material | Hot-Rolled Steel |
| Insulation | 185 |
| Insulation Class | 115 |
| Item Group | 16275 |
| KVA Rating | 15 |
| Length | 31.32 in |
| Length [Metric] | 80.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456925&lang=en-us |
| Maximum Amperage Rating | 40 A |
| Number Of Taps | 2 |
| Returnable | N |
| Standard | UL Listed |
| Sub Brand | MINI POWER-ZONE |
| Temperature Rating | 115 |
| Type | Sealed |
| UNSPSC | 39121001 |
| UPC 11 | 78590183899 |
| UPC 12 | 785901838999 |
| Warranty Description | Contractual Warranty: 18 months |
| Width | 47.54 in |
| Width [Metric] | 121.9000 cm |
| Winding | Copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Phase | 3 pH |
| Power Rating | 15 kVA |
| Primary Voltage | 480 V |
| Secondary Voltage | 208Y/120 V |
| PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS |
| SEALED TRANSFORMER,COPPER |
| Standard steel or stainless steel enclosure - both type 3R enclosure |
| Device can be disassembled in the field for easier installation |
| Leverage standard schneider electric powerpact breakers for primary disconnect |
| Standard low voltage general purpose transformers |
| Secondary load center or NQ interior - with field installed QO branch breakers |
| Power coated painted |
| Copper winding |
| C enclosure code |
