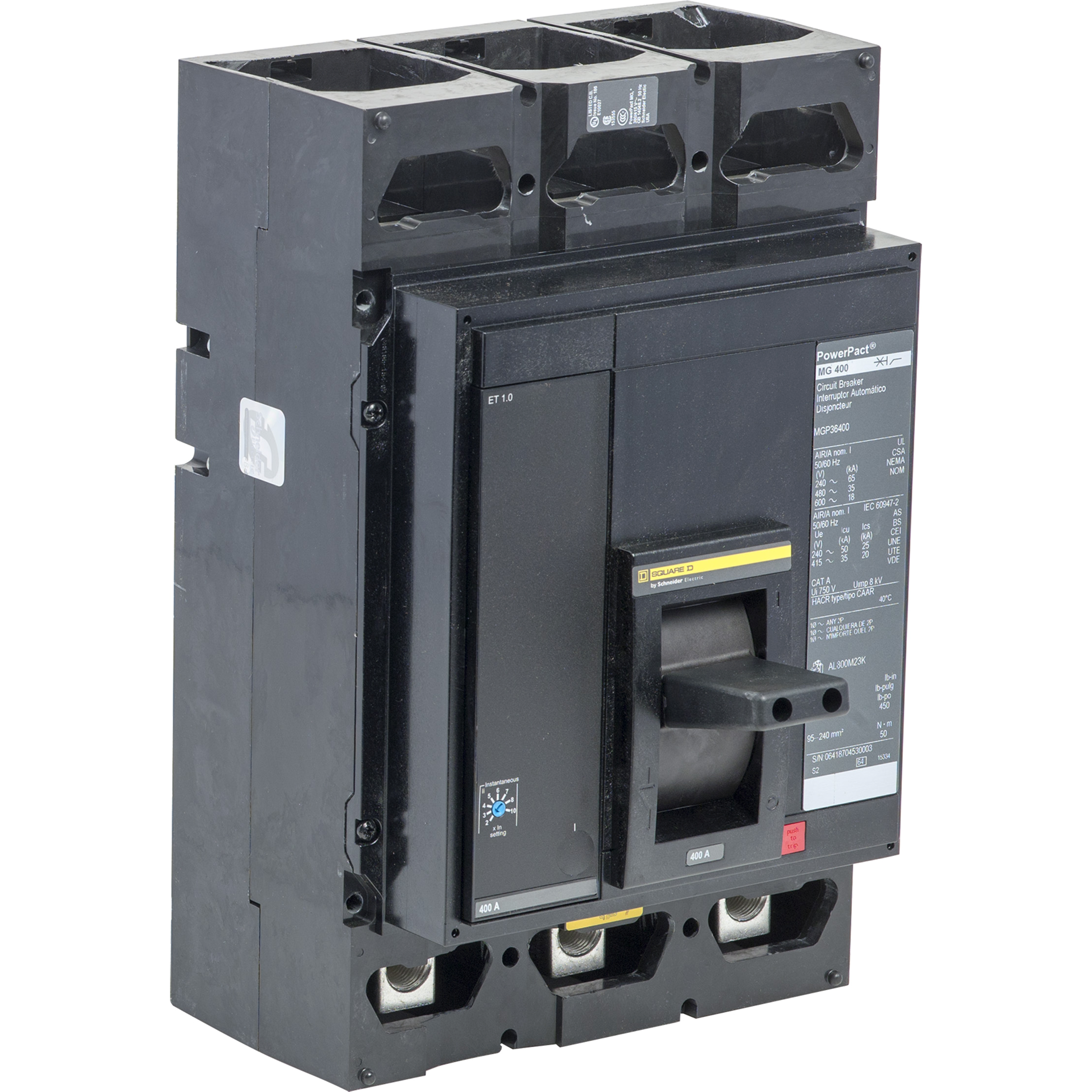

Square D™ MGP36400 80% Rated Molded Case Circuit Breaker, 600 VAC, 400 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, 3 Poles, Electronic Basic ET 1.0 LI Trip
Custom_Product_Images_Illustration
Square D™ MGP36400 80% Rated Molded Case Circuit Breaker, 600 VAC, 400 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, 3 Poles, Electronic Basic ET 1.0 LI Trip
SKUPDW~6409988
MFGR #MGP36400
Your Cost: $7,227.55/ea
List: Square D™ PowerPact™ Molded Case Circuit Breaker, 80% Rated, 600 VAC, 400 A, 50/60 Hz Frequency, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, M Frame Frame, Electronic Basic ET 1.0 LI Trip, 800 to 4000 A Trip, 3 Pole, 3 ph, Line Nut/Load Lug Connection, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Unit Mounting, 104 deg F, 8.1 in L x 8.3 in W x 12.8 in H Dimensions
Square D™ PowerPact™ Molded Case Circuit Breaker, 80% Rated, 600 VAC, 400 A, 50/60 Hz Frequency, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, M Frame Frame, Electronic Basic ET 1.0 LI Trip, 800 to 4000 A Trip, 3 Pole, 3 ph, Line Nut/Load Lug Connection, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Unit Mounting, 104 deg F, 8.1 in L x 8.3 in W x 12.8 in H Dimensions
Actuator Operating handle Alternate Catalog Number MGP36400 Application Distribution;HACR rated ARRA Compliant N Buy American Compliant N Catalog Number MGP36400 Connection Terminal nut line;lugs load; 3 x AWG 3/0...3 x 500 kcmil aluminium/copper Connection Type Line Nut/Load Lug Country of Origin US Currency USD Depth 8.05 in Dimensions 8.1 in L x 8.3 in W x 12.8 in H Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame M Frame Frequency Rating 50/60 Hz Gross Volume Per Pack 2305.80 Gross Volume per Pack Metric 37785.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1282 lb Gross Weight per Pack Metric 12.82 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 26.6700 in Height [Metric] 26.6700 cm Item Group 01205 Length 46.4820 in Length [Metric] 46.4820 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430947&lang=en-us Mounting Type Unit Number Of Poles 3 Phase 3 Returnable Y Standard CSA-IEC-UL LISTED Sub Brand PowerPact M Temperature Rating 104 Trip Range 800 to 4000 A Type 80% Rated UNSPSC 39121616 UPC 11 78590148133 UPC 12 785901481331 Warranty Description Contractual Warranty:18 months Width 30.4800 in Width [Metric] 30.4800 cm Wire Size 3/0 AWG to 500 kcmil Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Trip Type Electronic Basic ET 1.0 LI Voltage Rating 600 VAC Distribution;HACR rated 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Operating handle |
| Alternate Catalog Number | MGP36400 |
| Application | Distribution;HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MGP36400 |
| Connection | Terminal nut line;lugs load; 3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
| Connection Type | Line Nut/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Depth | 8.05 in |
| Dimensions | 8.1 in L x 8.3 in W x 12.8 in H |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | M Frame |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2305.80 |
| Gross Volume per Pack Metric | 37785.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1282 lb |
| Gross Weight per Pack Metric | 12.82 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 26.6700 in |
| Height [Metric] | 26.6700 cm |
| Item Group | 01205 |
| Length | 46.4820 in |
| Length [Metric] | 46.4820 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430947&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Standard | CSA-IEC-UL LISTED |
| Sub Brand | PowerPact M |
| Temperature Rating | 104 |
| Trip Range | 800 to 4000 A |
| Type | 80% Rated |
| UNSPSC | 39121616 |
| UPC 11 | 78590148133 |
| UPC 12 | 785901481331 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.4800 in |
| Width [Metric] | 30.4800 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC |
| Trip Type | Electronic Basic ET 1.0 LI |
| Voltage Rating | 600 VAC |
| Distribution;HACR rated |
