Square D™

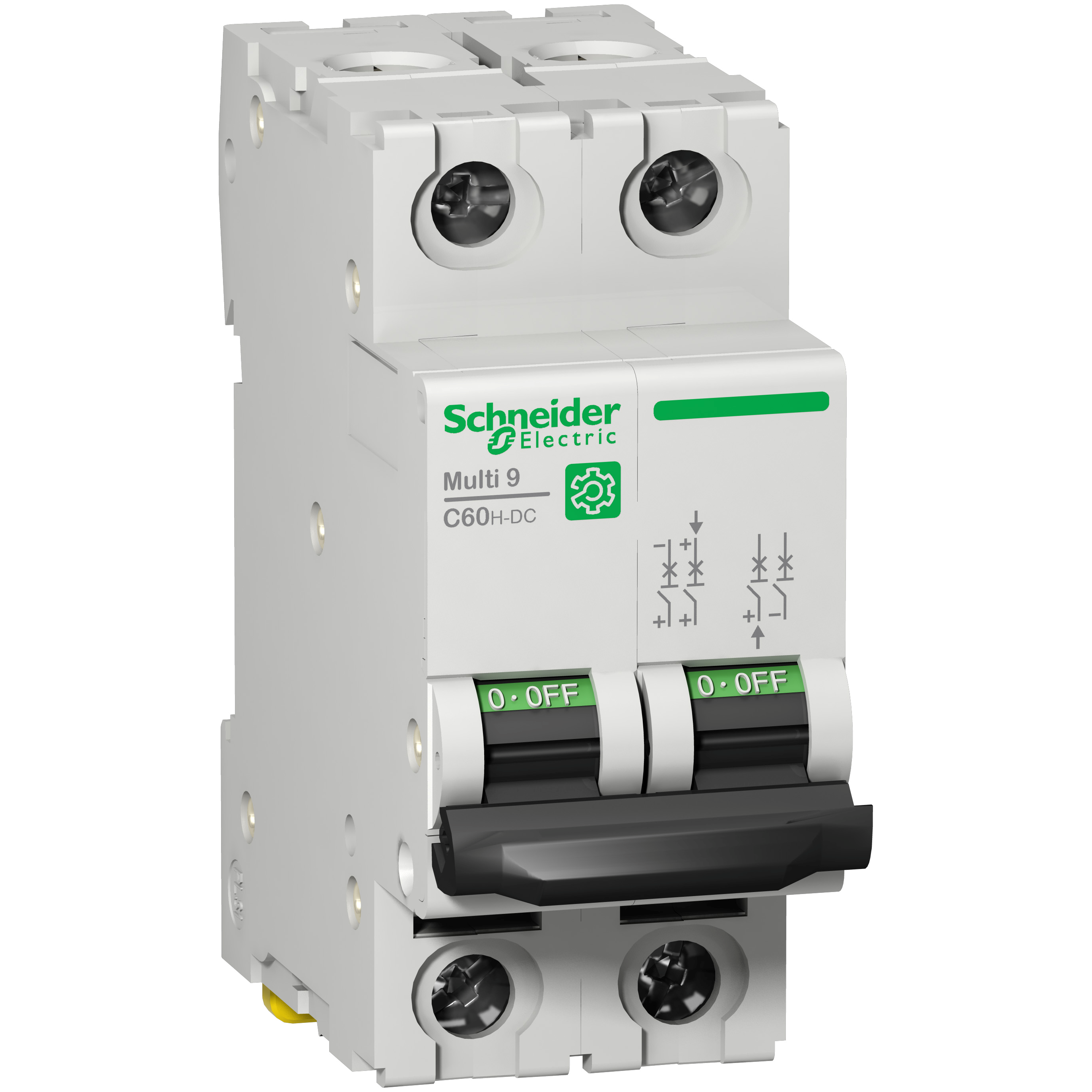

Square D™ M9U21210 C60H-DC Multi-Standard Miniature Circuit Breaker, 220/440/500 VAC/500 VDC, 10 A, 10 kA Interrupt, 2 Poles, C-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ M9U21210 C60H-DC Multi-Standard Miniature Circuit Breaker, 220/440/500 VAC/500 VDC, 10 A, 10 kA Interrupt, 2 Poles, C-Curve/Thermal Magnetic Trip
SKU1092517
MFGR #M9U21210
Call For Price
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 220/440/500 VAC/500 VDC, 10 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 7 to 10X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Connection, 18 to 4 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 3.19 in H x 1.42 in W x 2.87 in D Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 220/440/500 VAC/500 VDC, 10 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 7 to 10X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Connection, 18 to 4 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 3.19 in H x 1.42 in W x 2.87 in D Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9U21210 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9U21210 Color Gray Connection Type Tunnel Country of Origin CN Currency USD Dimensions 3.19 in H x 1.42 in W x 2.87 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50 to 60 Gross Volume Per Pack 15.30 Gross Volume per Pack Metric 250.72 Gross Weight Per Pack 2.2200 lb Gross Weight per Pack Metric 221.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.5000 in Height [Metric] 3.6000 cm Item Group 00948 Length 8.5000 in Length [Metric] 8.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710946&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 2 Returnable Y Series C60H-DC Standard EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR Sub Brand Multi9 C60H-DC;C60H-DC Substitute Product Catalog Number M9A26924 Temperature Rating -13 to 158 Trip Range 7 to 10X In DC Type Multi-Standard UNSPSC 39121603 Width 3.7000 in Width [Metric] 7.4000 cm Wire Size 18 to 4 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 10 Interrupt Rating 10 Trip Type Thermal Magnetic/C-Curve Voltage Rating 220/440/500 VAC/500 VDC Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9U21210 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9U21210 |
| Color | Gray |
| Connection Type | Tunnel |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 3.19 in H x 1.42 in W x 2.87 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50 to 60 |
| Gross Volume Per Pack | 15.30 |
| Gross Volume per Pack Metric | 250.72 |
| Gross Weight Per Pack | 2.2200 lb |
| Gross Weight per Pack Metric | 221.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.5000 in |
| Height [Metric] | 3.6000 cm |
| Item Group | 00948 |
| Length | 8.5000 in |
| Length [Metric] | 8.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710946&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | C60H-DC |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR |
| Sub Brand | Multi9 C60H-DC;C60H-DC |
| Substitute Product Catalog Number | M9A26924 |
| Temperature Rating | -13 to 158 |
| Trip Range | 7 to 10X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| Width | 3.7000 in |
| Width [Metric] | 7.4000 cm |
| Wire Size | 18 to 4 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 10 |
| Interrupt Rating | 10 |
| Trip Type | Thermal Magnetic/C-Curve |
| Voltage Rating | 220/440/500 VAC/500 VDC |
| Distribution |
| ON/OFF indication |
