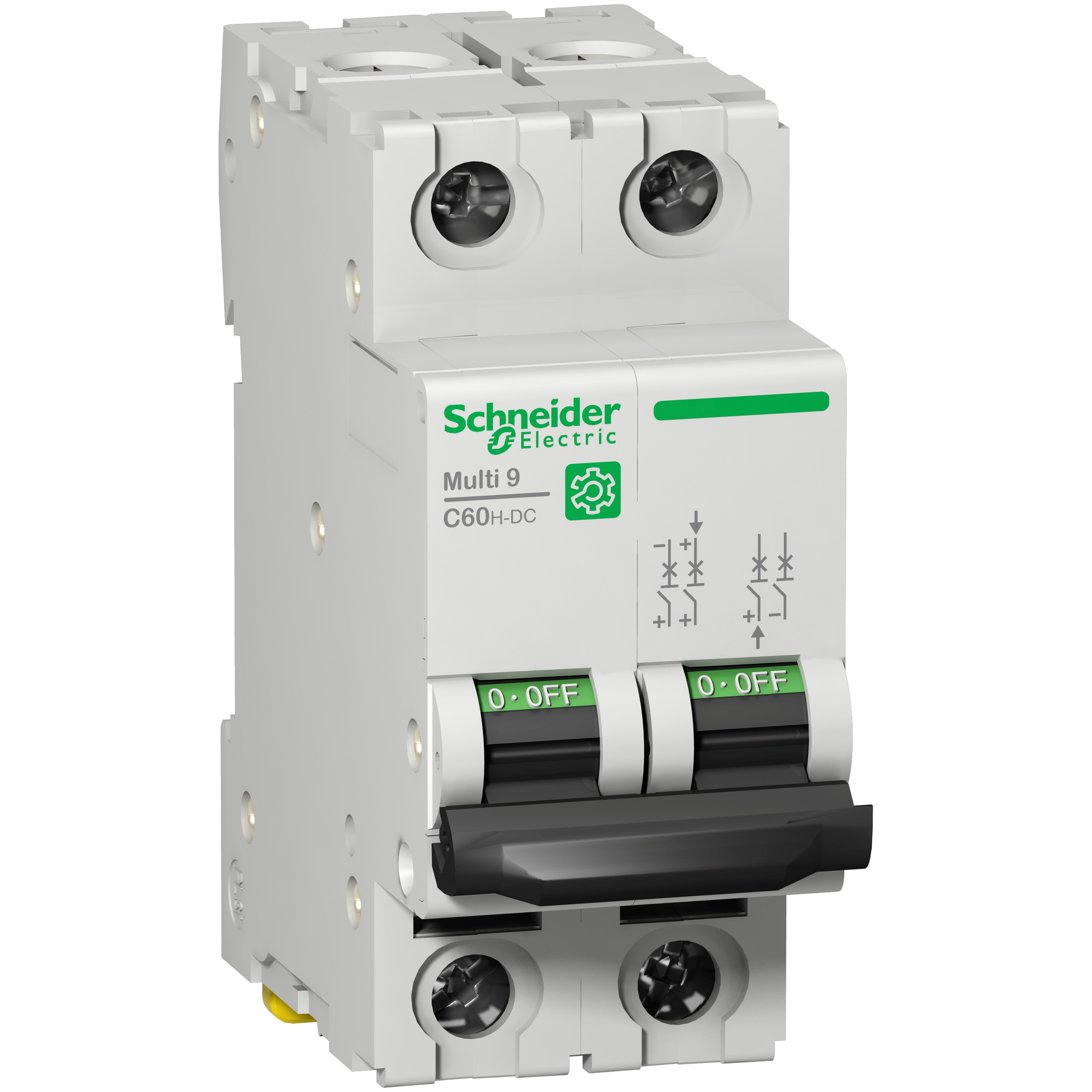

Square D™ M9U11240 C60H-DC Multi-Standard Miniature Circuit Breaker, 220/440/500 VAC, 500 VDC, 40 A, 10 kA Interrupt, 2 Poles, B-Curve Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ M9U11240 C60H-DC Multi-Standard Miniature Circuit Breaker, 220/440/500 VAC, 500 VDC, 40 A, 10 kA Interrupt, 2 Poles, B-Curve Thermal Magnetic Trip
SKUPDW~13031822
MFGR #M9U11240
Your Cost: $478.81/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 220/440/500 VAC, 500 VDC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 3 to 7X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 3.19 in H x 1.42 in W x 2.87 in D Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 220/440/500 VAC, 500 VDC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 3 to 7X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 3.19 in H x 1.42 in W x 2.87 in D Dimensions, Gray
Actuator Toggle Alternate Catalog Number M9U11240 Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number M9U11240 Country of Origin CN Currency USD EU RoHS Indicator Y Gross Volume Per Pack 15.30 Gross Volume per Pack Metric 250.72 Gross Weight Per Pack 0.5400 lb Gross Weight per Pack Metric 243.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 3.1496 in Height [Metric] 8.5000 cm Item Group 00948 Length 3.1496 in Length [Metric] 7.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710914&lang=en-us Number Of Poles 2 Returnable N Standard EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR Sub Brand Multi9 C60H-DC;C60H-DC Substitute Product Catalog Number M9A26946 Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 785901773832 UPC 12 785901773832 Upsell Product Catalog Number MGN26380 Width 1.5748 in Width [Metric] 3.6000 cm Brand Square D™ Manufacturer Schneider Electric Trip Type Thermal-magnetic Voltage Rating 220 V DC;440 V DC;500 V DC Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | M9U11240 |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9U11240 |
| Country of Origin | CN |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 15.30 |
| Gross Volume per Pack Metric | 250.72 |
| Gross Weight Per Pack | 0.5400 lb |
| Gross Weight per Pack Metric | 243.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.1496 in |
| Height [Metric] | 8.5000 cm |
| Item Group | 00948 |
| Length | 3.1496 in |
| Length [Metric] | 7.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710914&lang=en-us |
| Number Of Poles | 2 |
| Returnable | N |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR |
| Sub Brand | Multi9 C60H-DC;C60H-DC |
| Substitute Product Catalog Number | M9A26946 |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 785901773832 |
| UPC 12 | 785901773832 |
| Upsell Product Catalog Number | MGN26380 |
| Width | 1.5748 in |
| Width [Metric] | 3.6000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 220 V DC;440 V DC;500 V DC |
| Distribution |
| ON/OFF indication |
