Square D™

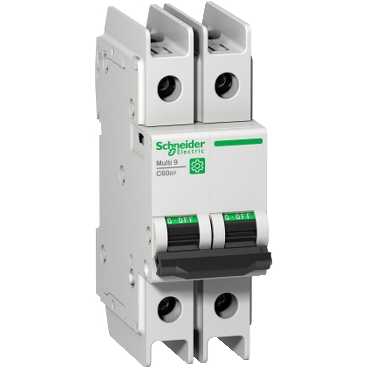

Square D™ M9F43220 C60BP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 20 A, 10 kA Interrupt, 2 Poles, D-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ M9F43220 C60BP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 20 A, 10 kA Interrupt, 2 Poles, D-Curve/Thermal Magnetic Trip
SKU1185135
MFGR #M9F43220
Your Cost: $156.79/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415/440 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC/17X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 1.42 in W x 2.83 in D x 4.06 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415/440 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC/17X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 1.42 in W x 2.83 in D x 4.06 in H Dimensions, Gray
Actuator Toggle Alternate Catalog Number M9F43220 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F43220 Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 16.07 Gross Volume per Pack Metric 263.34 Gross Weight Per Pack 0.5400 lb Gross Weight per Pack Metric 245.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.6000 in Height [Metric] 3.6000 cm Item Group 00949 Length 10.3000 in Length [Metric] 10.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710454&lang=en-us Number Of Poles 2 Returnable Y Standard EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL Sub Brand Multi9 C60;C60BP Substitute Product Catalog Number M9A26927 Type MINIATURE CIRCUIT-BREAKER UNSPSC 39121603 UPC 11 78590169694 UPC 12 785901696940 Width 7.2000 in Width [Metric] 7.2000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Trip Type Thermal-magnetic Voltage Rating 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | M9F43220 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F43220 |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 16.07 |
| Gross Volume per Pack Metric | 263.34 |
| Gross Weight Per Pack | 0.5400 lb |
| Gross Weight per Pack Metric | 245.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.6000 in |
| Height [Metric] | 3.6000 cm |
| Item Group | 00949 |
| Length | 10.3000 in |
| Length [Metric] | 10.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710454&lang=en-us |
| Number Of Poles | 2 |
| Returnable | Y |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL |
| Sub Brand | Multi9 C60;C60BP |
| Substitute Product Catalog Number | M9A26927 |
| Type | MINIATURE CIRCUIT-BREAKER |
| UNSPSC | 39121603 |
| UPC 11 | 78590169694 |
| UPC 12 | 785901696940 |
| Width | 7.2000 in |
| Width [Metric] | 7.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz |
| Distribution |
| ON/OFF indication |
