Square D™

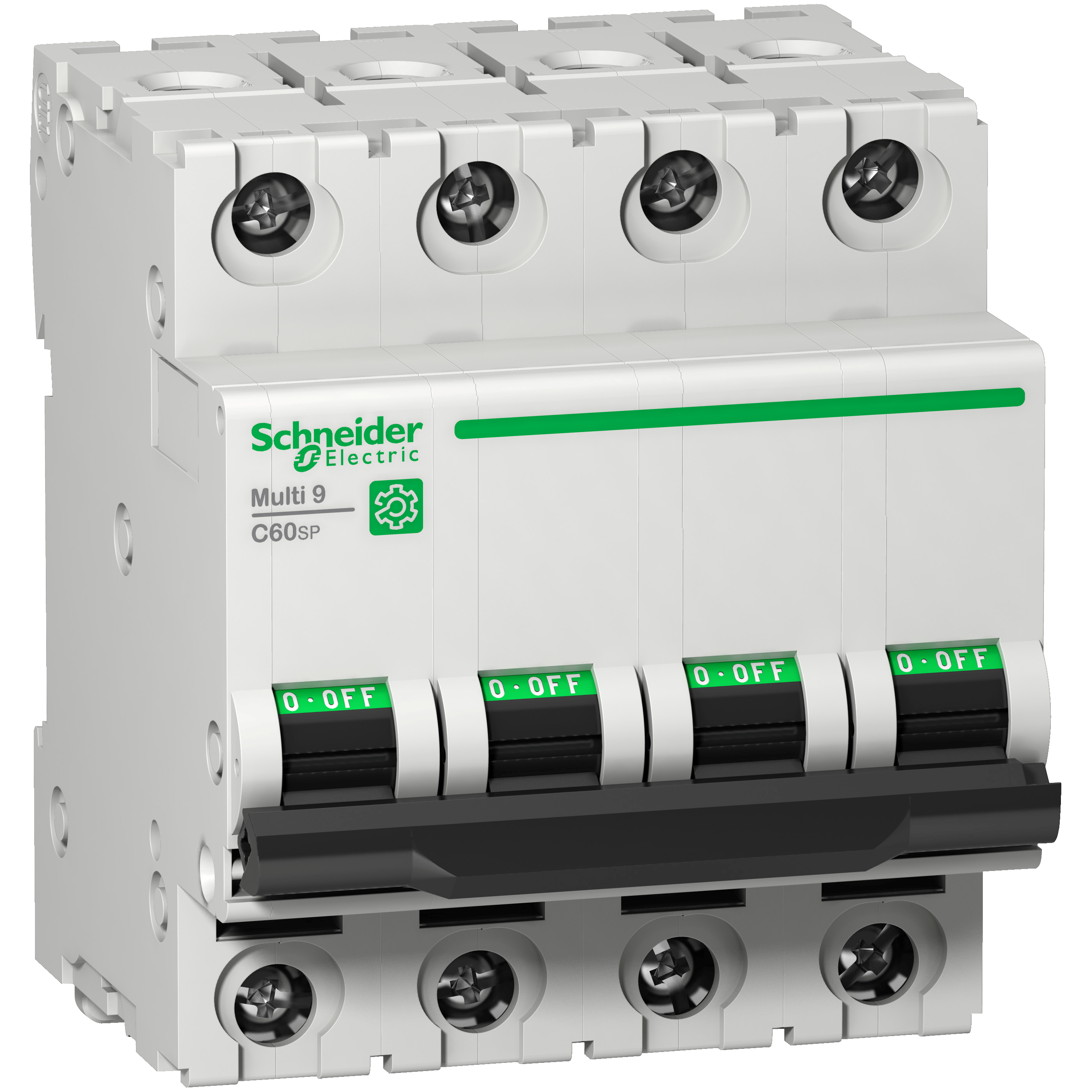

Square D™ M9F21425 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 25 A, 10 kA Interrupt, 4 Poles, B-Curve Thermal Magnetic Trip
Square D™
Square D™ M9F21425 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 25 A, 10 kA Interrupt, 4 Poles, B-Curve Thermal Magnetic Trip
SKUPDW~13031565
MFGR #M9F21425
Your Cost: $516.00/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 25 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 4X In AC Trip, 4 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 2.83 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 25 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 4X In AC Trip, 4 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 2.83 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Actuator Toggle Alternate Catalog Number M9F21425 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F21425 Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 29.58 Gross Volume per Pack Metric 484.73 Gross Weight Per Pack 4.6300 lb Gross Weight per Pack Metric 445.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.0000 in Height [Metric] 7.2000 cm Item Group 00948 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710711&lang=en-us Number Of Poles 4 Returnable N Standard EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA Sub Brand Multi9 C60;C60SP Substitute Product Catalog Number M9A26927 Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 78590174686 UPC 12 785901746867 Width 7.5000 in Width [Metric] 7.5000 cm Brand Square D™ Manufacturer Schneider Electric Trip Type Thermal-magnetic Voltage Rating 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | M9F21425 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F21425 |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 29.58 |
| Gross Volume per Pack Metric | 484.73 |
| Gross Weight Per Pack | 4.6300 lb |
| Gross Weight per Pack Metric | 445.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.0000 in |
| Height [Metric] | 7.2000 cm |
| Item Group | 00948 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710711&lang=en-us |
| Number Of Poles | 4 |
| Returnable | N |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA |
| Sub Brand | Multi9 C60;C60SP |
| Substitute Product Catalog Number | M9A26927 |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 78590174686 |
| UPC 12 | 785901746867 |
| Width | 7.5000 in |
| Width [Metric] | 7.5000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz |
| Distribution |
| ON/OFF indication |
