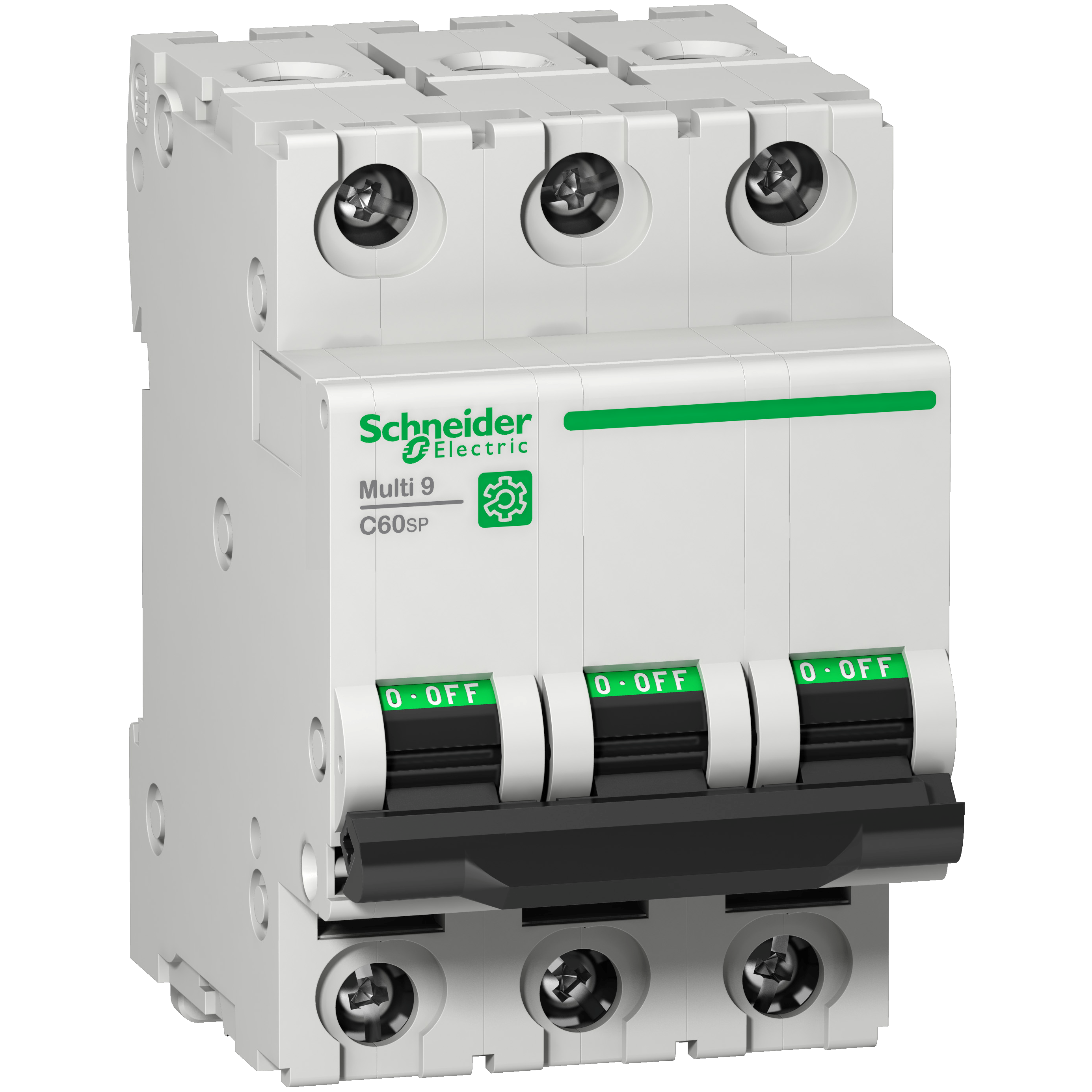

Square D™ M9F21325 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 25 A, 10 kA Interrupt, 3 Poles, B-Curve Thermal Magnetic Trip
Square D™ M9F21325 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 25 A, 10 kA Interrupt, 3 Poles, B-Curve Thermal Magnetic Trip
SKUPDW~13031552
MFGR #M9F21325
Your Cost: $260.48/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 25 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 4X In AC Trip, 3 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 2.13 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 25 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 4X In AC Trip, 3 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 2.13 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Actuator Toggle Alternate Catalog Number M9F21325 Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number M9F21325 Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 21.00 Gross Volume per Pack Metric 344.13 Gross Weight Per Pack 3.5300 lb Gross Weight per Pack Metric 353.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.5000 in Height [Metric] 5.4000 cm Item Group 00948 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710692&lang=en-us Number Of Poles 3 Returnable Y Standard EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA Sub Brand Multi9 C60;C60SP Substitute Product Catalog Number M9A26927 Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 785901741572 UPC 12 785901741572 Width 5.4000 in Width [Metric] 7.5000 cm Brand Square D™ Manufacturer Schneider Electric Trip Type Thermal-magnetic Voltage Rating 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | M9F21325 |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F21325 |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 21.00 |
| Gross Volume per Pack Metric | 344.13 |
| Gross Weight Per Pack | 3.5300 lb |
| Gross Weight per Pack Metric | 353.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.5000 in |
| Height [Metric] | 5.4000 cm |
| Item Group | 00948 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710692&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA |
| Sub Brand | Multi9 C60;C60SP |
| Substitute Product Catalog Number | M9A26927 |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 785901741572 |
| UPC 12 | 785901741572 |
| Width | 5.4000 in |
| Width [Metric] | 7.5000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz |
| Distribution |
| ON/OFF indication |
