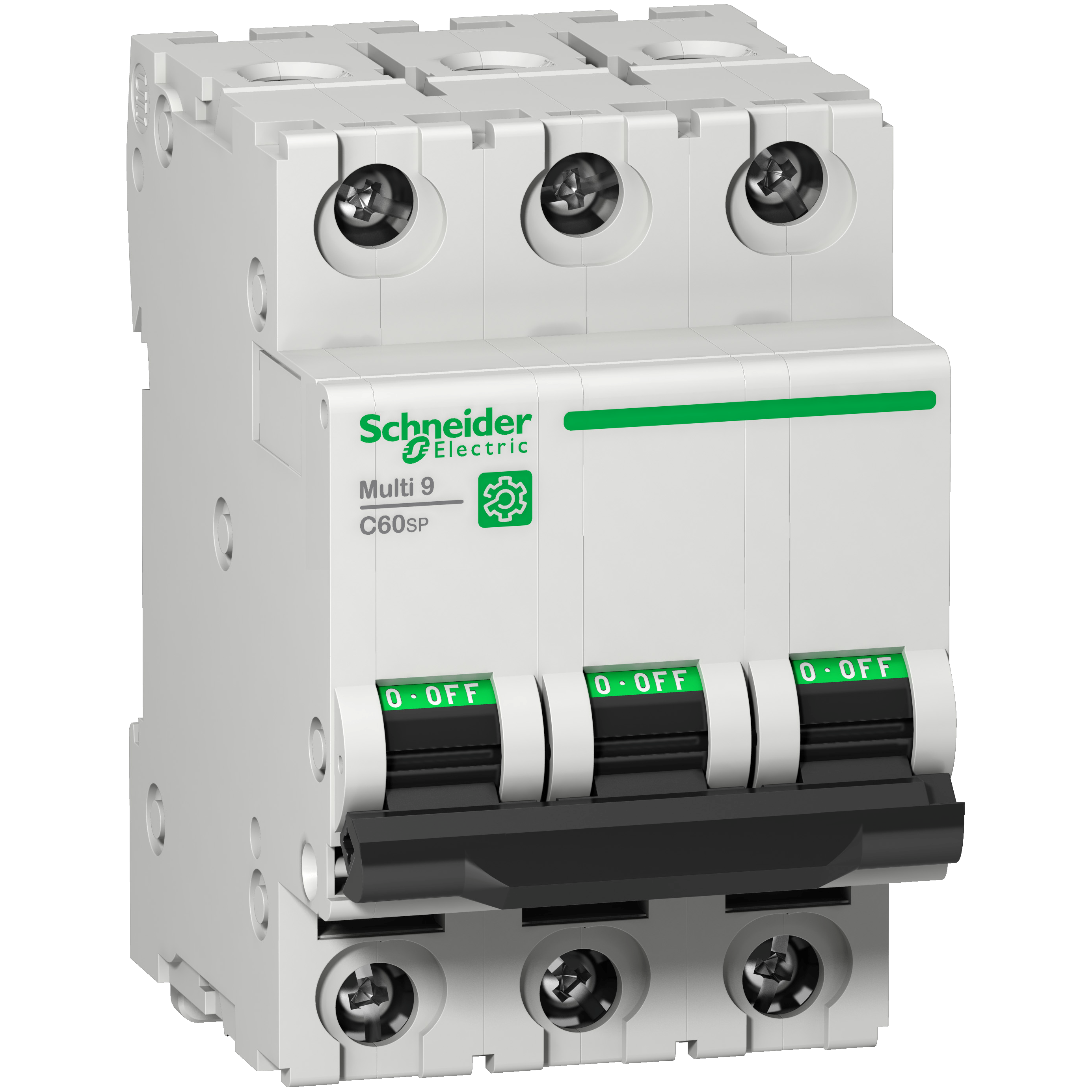

Square D™ M9F21310 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 10 A, 10 kA Interrupt, 3 Poles, B-Curve Thermal Magnetic Trip

Square D™ M9F21310 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 10 A, 10 kA Interrupt, 3 Poles, B-Curve Thermal Magnetic Trip

SKU1137912

MFGR #M9F21310

Your Cost: $229.93/ea
List: $315.00 /ea
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 10 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 4X In AC Trip, 3 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 2.13 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 10 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 4X In AC Trip, 3 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 2.13 in W x 2.83 in D x 3.19 in H Dimensions, Gray

Actuator

Toggle

Alternate Catalog Number

M9F21310

Application

Distribution

ARRA Compliant

N

Buy American Compliant

N

Catalog Number

M9F21310

Connection

Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible

Country of Origin

FR

Currency

USD

EU RoHS Indicator

Y

Gross Volume Per Pack

20.79

Gross Volume per Pack Metric

340.69

Gross Weight Per Pack

0.7400 lb

Gross Weight per Pack Metric

337.00

Gross Weight UOM Metric

g

Harmonization Tariff Schedule Code

8536200040

Height

7.5000 in

Height [Metric]

7.5000 cm

Item Group

00948

Length

8.5000 in

Length [Metric]

8.5000 cm

Material Composition Declaration

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710698&lang=en-us

Number Of Poles

3

Returnable

Y

Standard

EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA

Sub Brand

Multi9 C60;C60SP

Substitute Product Catalog Number

M9A26960

Type

Miniature circuit-breaker

UNSPSC

39121603

UPC 11

78590173612

UPC 12

785901736127

Width

5.4000 in

Width [Metric]

5.4000 cm

Stock Status

NONSTOCK

Brand

Square D™

Manufacturer

Schneider Electric

Trip Type

Thermal-magnetic

Voltage Rating

240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz
