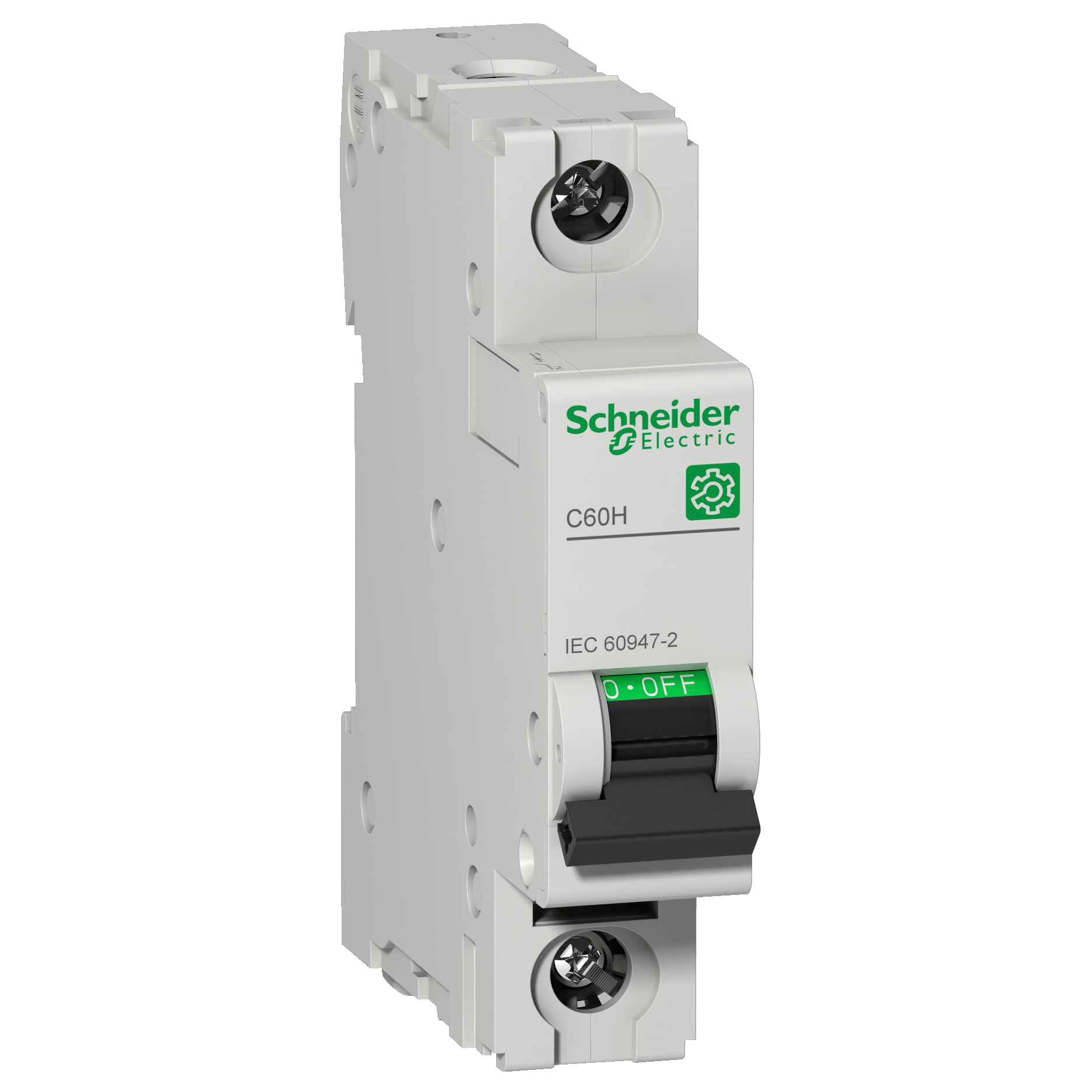

Square D™ M9F15110 C60H Miniature Circuit Breaker, 240/415 VAC, 10 A, 15 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ M9F15110 C60H Miniature Circuit Breaker, 240/415 VAC, 10 A, 15 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
SKUPDW~11743105
MFGR #M9F15110
Your Cost: $172.44/ea
List: Schneider Electric Miniature Circuit Breaker, Series: C60H, 240/415 VAC, 10 A, 50/60 Hz Frequency, 15 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC/17X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 3.19 in H x 0.71 in W x 2.83 in D Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Series: C60H, 240/415 VAC, 10 A, 50/60 Hz Frequency, 15 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC/17X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 3.19 in H x 0.71 in W x 2.83 in D Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F15110 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F15110 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule Connection Type Tunnel Country of Origin FR Currency USD Dimensions 3.19 in H x 0.71 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 6.64 Gross Volume per Pack Metric 108.81 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2300 lb Gross Weight per Pack Metric 106.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 0.7874 in Height [Metric] 1.8000 cm Item Group 00908 Length 3.1496 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804324&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Operating Temperature -30-70 A°C Returnable N Series C60H Standard EN/IEC 60947-2;EAC;CCC Sub Brand Multi9 C60;C60H Substitute Product Catalog Number A9XPH124 Temperature Rating -22 to 158 Trip Range 12X In AC/17X In DC Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 785901485780 UPC 12 785901485780 Upsell Product Catalog Number M9A26960 Width 3.1496 in Width [Metric] 7.5000 cm Wire Size 1 to 25 Brand Square D™ Manufacturer Schneider Electric Amperage Rating 10 Interrupt Rating 15 Trip Type D-Curve/Thermal Magnetic Voltage Rating 240/415 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F15110 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F15110 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule |
| Connection Type | Tunnel |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.19 in H x 0.71 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 6.64 |
| Gross Volume per Pack Metric | 108.81 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2300 lb |
| Gross Weight per Pack Metric | 106.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 0.7874 in |
| Height [Metric] | 1.8000 cm |
| Item Group | 00908 |
| Length | 3.1496 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804324&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Operating Temperature | -30-70 A°C |
| Returnable | N |
| Series | C60H |
| Standard | EN/IEC 60947-2;EAC;CCC |
| Sub Brand | Multi9 C60;C60H |
| Substitute Product Catalog Number | A9XPH124 |
| Temperature Rating | -22 to 158 |
| Trip Range | 12X In AC/17X In DC |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 785901485780 |
| UPC 12 | 785901485780 |
| Upsell Product Catalog Number | M9A26960 |
| Width | 3.1496 in |
| Width [Metric] | 7.5000 cm |
| Wire Size | 1 to 25 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 10 |
| Interrupt Rating | 15 |
| Trip Type | D-Curve/Thermal Magnetic |
| Voltage Rating | 240/415 |
| Distribution |
| ON/OFF indication |
