Square D™

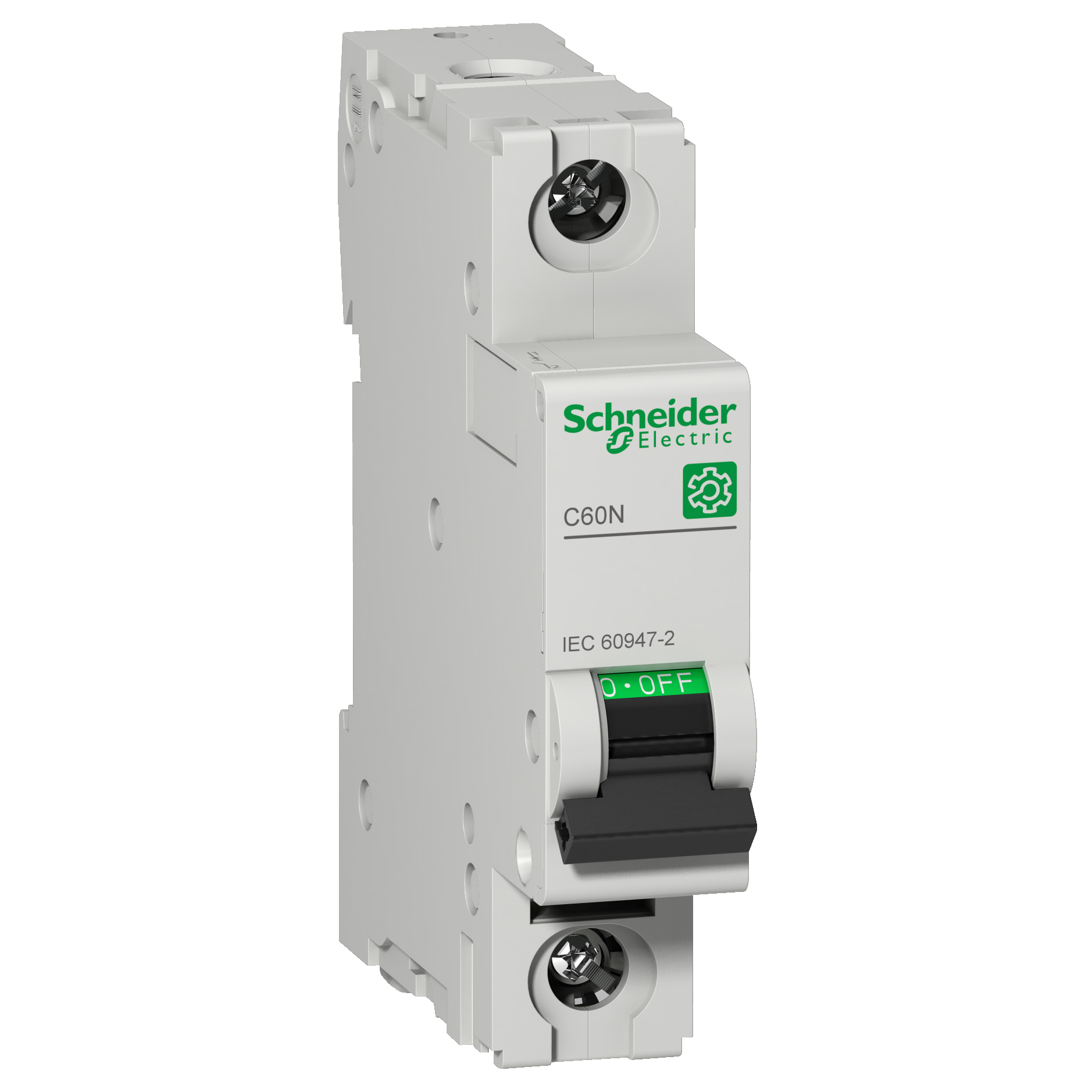

Square D™ M9F12106 C60N Miniature Circuit Breaker, 240/415 VAC, 6 A, 10 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ M9F12106 C60N Miniature Circuit Breaker, 240/415 VAC, 6 A, 10 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
SKUPDW~11743018
MFGR #M9F12106
Your Cost: $88.29/ea
List: Schneider Electric Miniature Circuit Breaker, Series: C60N, 240/415 VAC, 6 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC/17X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 0.71 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Series: C60N, 240/415 VAC, 6 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC/17X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 0.71 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F12106 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F12106 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule Connection Type Tunnel Terminal Country of Origin US Currency USD Dimensions 0.71 in W x 2.83 in D x 3.19 in H Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 8.40 Gross Volume per Pack Metric 137.65 Gross Weight Per Pack 0.2300 lb Gross Weight per Pack Metric 103.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.1496 in Height [Metric] 8.5000 cm Item Group 00908 Length 3.1496 in Length [Metric] 7.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804202&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Operating Temperature -30-70 A°C Returnable Y Series C60N Standard EN/IEC 60947-2;EAC;KC;CCC Sub Brand Multi9 C60;C60N Substitute Product Catalog Number M9A26478 Temperature Rating -22 to 158 Trip Range 12X In AC/17X In DC Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 785901341239 UPC 12 785901341239 Width 0.7874 in Width [Metric] 1.8000 cm Wire Size 1 to 25 Brand Square D™ Manufacturer Schneider Electric Amperage Rating 6 Interrupt Rating 10 Trip Type D-Curve/Thermal Magnetic Voltage Rating 240/415 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F12106 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F12106 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule |
| Connection Type | Tunnel Terminal |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 0.71 in W x 2.83 in D x 3.19 in H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 8.40 |
| Gross Volume per Pack Metric | 137.65 |
| Gross Weight Per Pack | 0.2300 lb |
| Gross Weight per Pack Metric | 103.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.1496 in |
| Height [Metric] | 8.5000 cm |
| Item Group | 00908 |
| Length | 3.1496 in |
| Length [Metric] | 7.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804202&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Operating Temperature | -30-70 A°C |
| Returnable | Y |
| Series | C60N |
| Standard | EN/IEC 60947-2;EAC;KC;CCC |
| Sub Brand | Multi9 C60;C60N |
| Substitute Product Catalog Number | M9A26478 |
| Temperature Rating | -22 to 158 |
| Trip Range | 12X In AC/17X In DC |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 785901341239 |
| UPC 12 | 785901341239 |
| Width | 0.7874 in |
| Width [Metric] | 1.8000 cm |
| Wire Size | 1 to 25 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 6 |
| Interrupt Rating | 10 |
| Trip Type | D-Curve/Thermal Magnetic |
| Voltage Rating | 240/415 |
| Distribution |
| ON/OFF indication |
