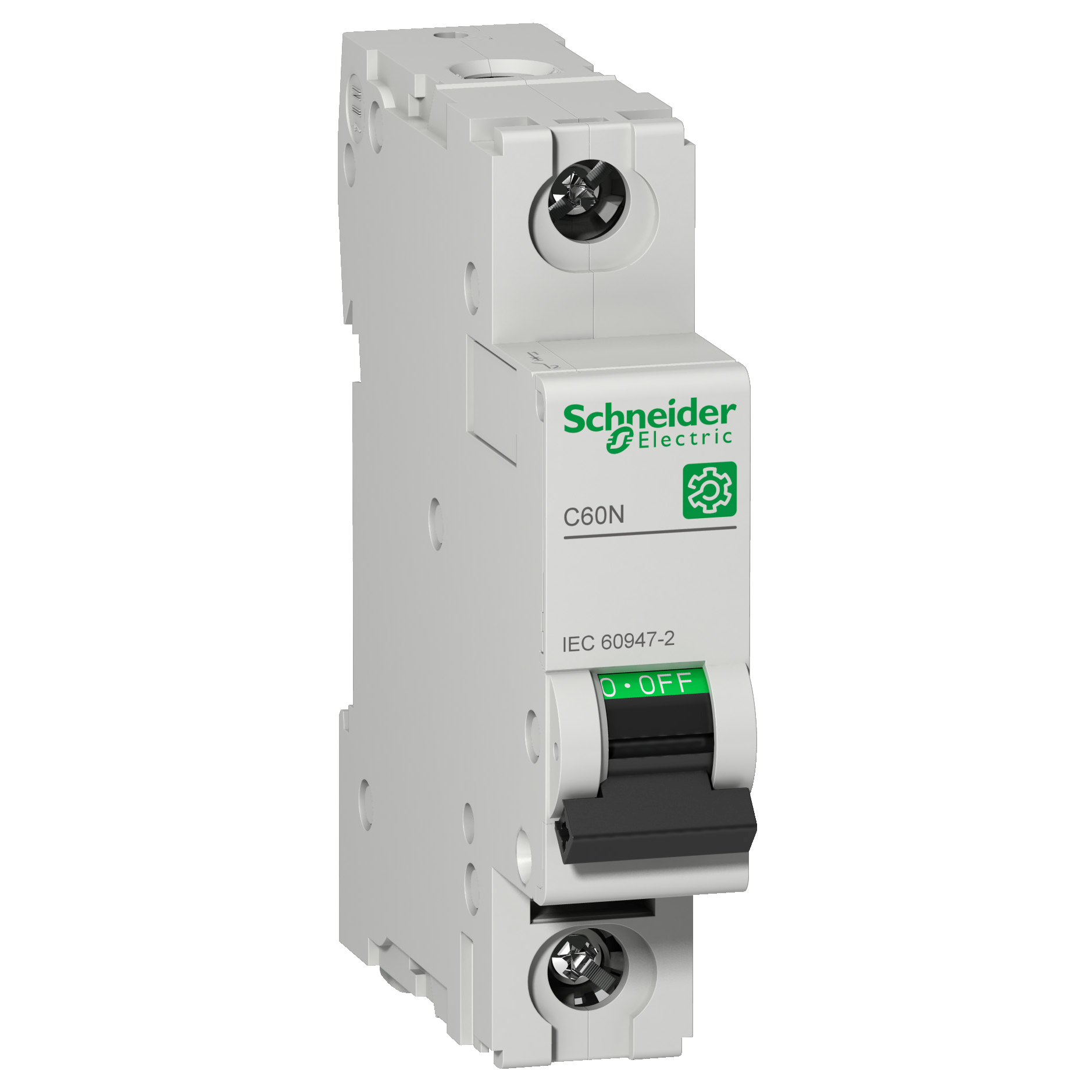

Square D™ M9F11116 C60N Miniature Circuit Breaker, 240/415 VAC, 16 A, 10 kA Interrupt, 1 Poles, C-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ M9F11116 C60N Miniature Circuit Breaker, 240/415 VAC, 16 A, 10 kA Interrupt, 1 Poles, C-Curve/Thermal Magnetic Trip
SKU1191105
MFGR #M9F11116
Your Cost: $105.83/ea
Schneider Electric Miniature Circuit Breaker, Series: C60N, 240/415 VAC, 16 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 0.71 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Series: C60N, 240/415 VAC, 16 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 0.71 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F11116 Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number M9F11116 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule Connection Type Tunnel Terminal Country of Origin BG Currency USD Dimensions 0.71 in W x 2.83 in D x 3.19 in H Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50 to 60 Hz Gross Volume Per Pack 6.47 Gross Volume per Pack Metric 106.02 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2300 lb Gross Weight per Pack Metric 105.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.5000 in Height [Metric] 7.5000 cm Item Group 00908 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804148&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Operating Temperature -30-70 A°C Returnable Y Series C60N Standard EN/IEC 60947-2;EAC;KC;CCC Sub Brand Multi9 C60;C60N Substitute Product Catalog Number M9A26478 Temperature Rating -22 to 158 Trip Range 8.5X In AC/12X In DC Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 78590164658 UPC 12 785901646587 Width 1.8000 in Width [Metric] 1.8000 cm Wire Size 1 to 25 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 16 Interrupt Rating 10 Trip Type Thermal Magnetic/C-Curve Voltage Rating 240/415 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F11116 |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F11116 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule |
| Connection Type | Tunnel Terminal |
| Country of Origin | BG |
| Currency | USD |
| Dimensions | 0.71 in W x 2.83 in D x 3.19 in H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50 to 60 Hz |
| Gross Volume Per Pack | 6.47 |
| Gross Volume per Pack Metric | 106.02 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2300 lb |
| Gross Weight per Pack Metric | 105.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.5000 in |
| Height [Metric] | 7.5000 cm |
| Item Group | 00908 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804148&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Operating Temperature | -30-70 A°C |
| Returnable | Y |
| Series | C60N |
| Standard | EN/IEC 60947-2;EAC;KC;CCC |
| Sub Brand | Multi9 C60;C60N |
| Substitute Product Catalog Number | M9A26478 |
| Temperature Rating | -22 to 158 |
| Trip Range | 8.5X In AC/12X In DC |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 78590164658 |
| UPC 12 | 785901646587 |
| Width | 1.8000 in |
| Width [Metric] | 1.8000 cm |
| Wire Size | 1 to 25 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 16 |
| Interrupt Rating | 10 |
| Trip Type | Thermal Magnetic/C-Curve |
| Voltage Rating | 240/415 |
| Distribution |
| ON/OFF indication |
