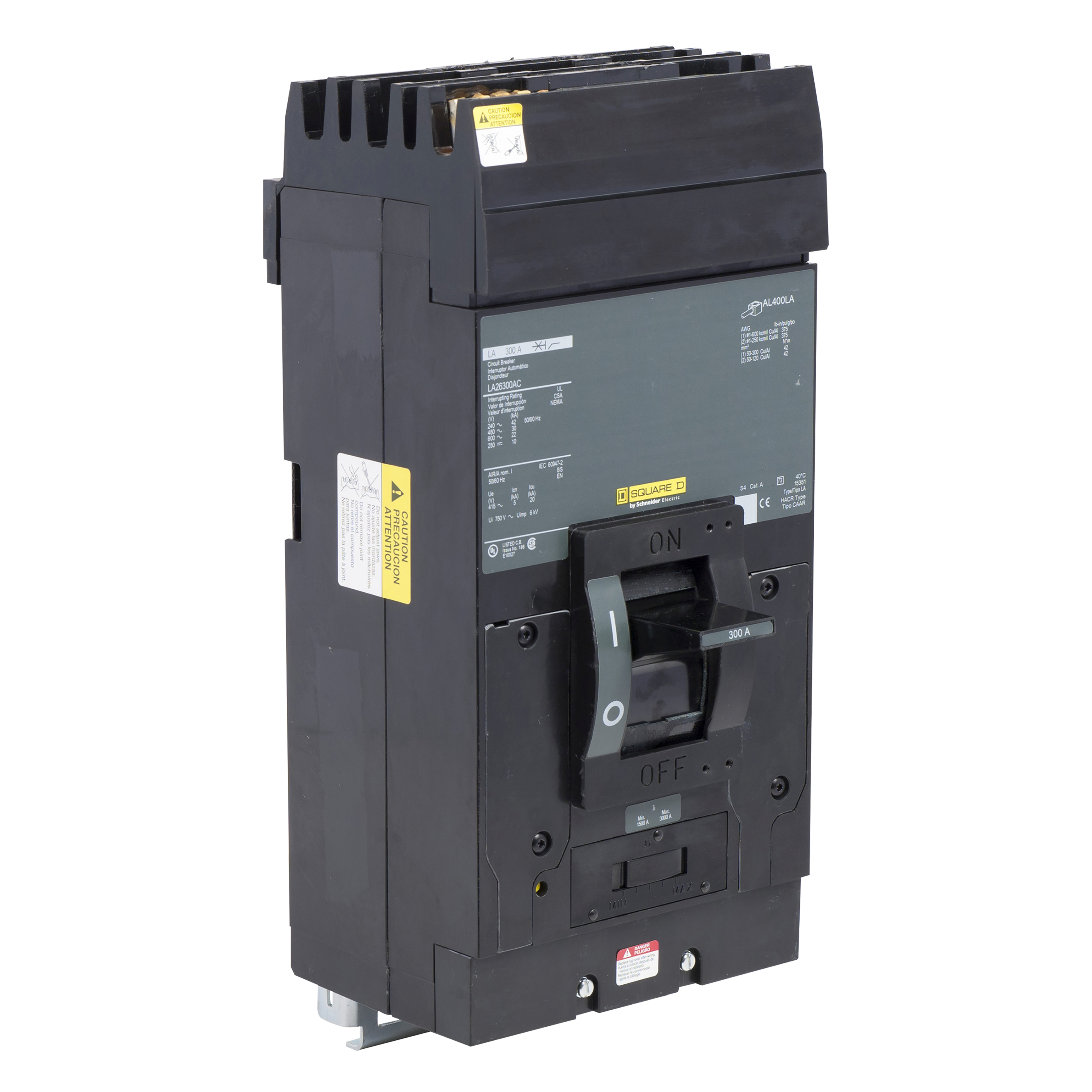

Square D™ LA26300BC 4-Wire Adjustable Standard Interrupt Molded Case Circuit Breaker With Alarm Switch, 600 VAC/250 VDC, 300 A, 25 kA at 600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/250 VDC/600 VAC Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ LA26300BC 4-Wire Adjustable Standard Interrupt Molded Case Circuit Breaker With Alarm Switch, 600 VAC/250 VDC, 300 A, 25 kA at 600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/250 VDC/600 VAC Interrupt, 2 Poles, Thermal Magnetic Trip
SKUPDW~6406298
MFGR #LA26300BC
Your Cost: $5,848.27/ea
List: Square D™ I-Line™ Molded Case Circuit Breaker, 4-Wire Adjustable Standard Interrupt, 600 VAC/250 VDC, 300 A, 50/60 Hz, 25 kA at 600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/250 VDC/600 VAC Interrupt, LA Series Frame, Thermal Magnetic Trip, 1500 to 3000 A Trip, 2 Pole, 1, Plug-On/Line/Load Lug, 1A-1B Auxiliary, (1) 1 AWG to 600 kcmil/(2)1 AWG to 250 kcmil Al/Cu Wire, NEMA 1/3R/12/4/4X/5, 104 deg F, 11 in H x 6 in W x 5.84 in D
Square D™ I-Line™ Molded Case Circuit Breaker, 4-Wire Adjustable Standard Interrupt, 600 VAC/250 VDC, 300 A, 50/60 Hz, 25 kA at 600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/250 VDC/600 VAC Interrupt, LA Series Frame, Thermal Magnetic Trip, 1500 to 3000 A Trip, 2 Pole, 1, Plug-On/Line/Load Lug, 1A-1B Auxiliary, (1) 1 AWG to 600 kcmil/(2)1 AWG to 250 kcmil Al/Cu Wire, NEMA 1/3R/12/4/4X/5, 104 deg F, 11 in H x 6 in W x 5.84 in D
Alternate Catalog Number LA26300BC ARRA Compliant N Auxiliary Contact Rating 1A-1B Buy American Compliant N Catalog Number LA26300BC Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-I-LINE CONNECTION LINE Connection Type Plug-On/Line/Load Lug Country of Origin US Currency USD Dimensions 11 in H x 6 in W x 5.84 in D Enclosure Type NEMA 1/3R/12/4/4X/5 EU RoHS Indicator Y Frame LA Series Frequency Rating 50/60 Gross Weight Per Pack 0.0719 lb Gross Weight per Pack Metric 7.19 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 21.4330 in Height [Metric] 21.4330 cm Item Group 01040 Length 43.4980 in Length [Metric] 43.4980 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=427095&lang=en-us Number Of Poles 2 Phase 1 Returnable Y Standard UL LISTED-CSA Temperature Rating 104 Trip Range 1500 to 3000 Type 4-Wire Adjustable Standard Interrupt UNSPSC 39121601 UPC 11 78590135842 UPC 12 785901358428 Warranty Description Contractual Warranty:18 months Width 28.2580 in Width [Metric] 28.2580 cm Wire Size (1) 1 AWG to 600 kcmil/(2)1 AWG to 250 kcmil Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 300 A Interrupt Rating 25 kA at 600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/250 VDC/600 VAC Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC I-LINE
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LA26300BC |
| ARRA Compliant | N |
| Auxiliary Contact Rating | 1A-1B |
| Buy American Compliant | N |
| Catalog Number | LA26300BC |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-I-LINE CONNECTION LINE |
| Connection Type | Plug-On/Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.84 in D |
| Enclosure Type | NEMA 1/3R/12/4/4X/5 |
| EU RoHS Indicator | Y |
| Frame | LA Series |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 0.0719 lb |
| Gross Weight per Pack Metric | 7.19 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 21.4330 in |
| Height [Metric] | 21.4330 cm |
| Item Group | 01040 |
| Length | 43.4980 in |
| Length [Metric] | 43.4980 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=427095&lang=en-us |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Temperature Rating | 104 |
| Trip Range | 1500 to 3000 |
| Type | 4-Wire Adjustable Standard Interrupt |
| UNSPSC | 39121601 |
| UPC 11 | 78590135842 |
| UPC 12 | 785901358428 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 28.2580 in |
| Width [Metric] | 28.2580 cm |
| Wire Size | (1) 1 AWG to 600 kcmil/(2)1 AWG to 250 kcmil Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 300 A |
| Interrupt Rating | 25 kA at 600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/250 VDC/600 VAC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC |
| I-LINE |
