Square D™

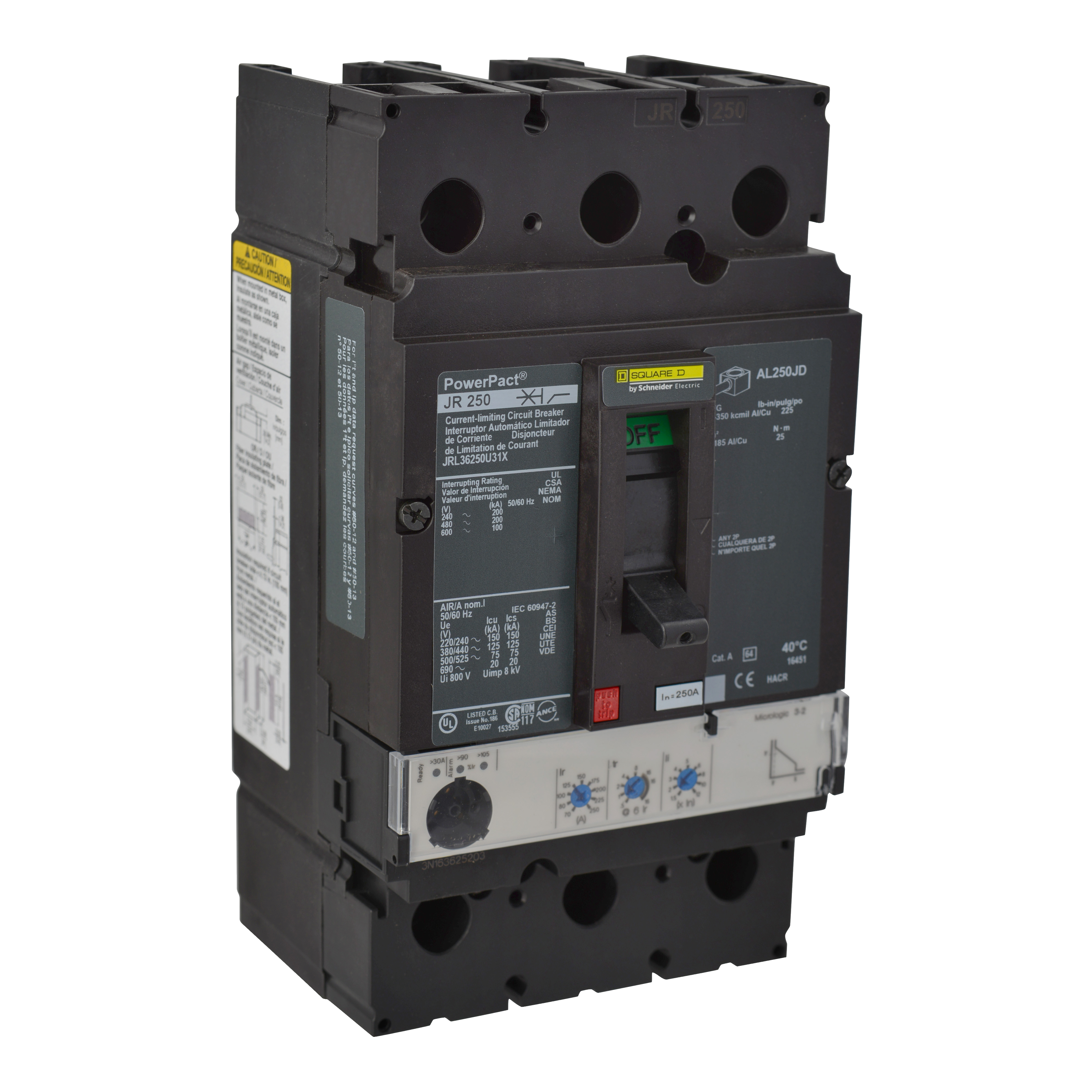

Square D™ JRL36250CU31X Molded Case Circuit Breaker, 600 VAC, 250 A, 100 kA Interrupt, 3 Poles, Electronic Standard Micrologic 3.2 LI Trip
Custom_Product_Images_Illustration
Square D™
Square D™ JRL36250CU31X Molded Case Circuit Breaker, 600 VAC, 250 A, 100 kA Interrupt, 3 Poles, Electronic Standard Micrologic 3.2 LI Trip
SKUPDW~11730724
MFGR #JRL36250CU31X
Your Cost: $9,712.87/ea
List: Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 50/60 Hz Frequency, 100 kA Interrupt, J Frame, Electronic Standard Micrologic 3.2 LI Trip, 1250 to 2500 A Trip, 3 Poles, Lug Line/Load Connection, 3/0 AWG to 350 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Backplate/DIN Rail/Flush Mounting, 104 deg F
Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 50/60 Hz Frequency, 100 kA Interrupt, J Frame, Electronic Standard Micrologic 3.2 LI Trip, 1250 to 2500 A Trip, 3 Poles, Lug Line/Load Connection, 3/0 AWG to 350 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Backplate/DIN Rail/Flush Mounting, 104 deg F
Alternate Catalog Number JRL36250CU31X ARRA Compliant N Buy American Compliant N Catalog Number JRL36250CU31X Connection Lugs, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals Country of Origin US Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.0227 lb Harmonization Tariff Schedule Code 8536200020 Height 13.0180 in Item Group 01108 Length 21.4330 in Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423266355&lang=en-us Number Of Poles 3 Returnable Y Type Circuit Breaker UNSPSC 39121601 Width 18.4150 in Brand Square D™ Manufacturer Schneider Electric Trip Type Electronic, standard, Micrologic 3.2, LI Modbus
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | JRL36250CU31X |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JRL36250CU31X |
| Connection | Lugs, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0227 lb |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.0180 in |
| Item Group | 01108 |
| Length | 21.4330 in |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423266355&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| Width | 18.4150 in |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | Electronic, standard, Micrologic 3.2, LI |
| Modbus |
