Square D™

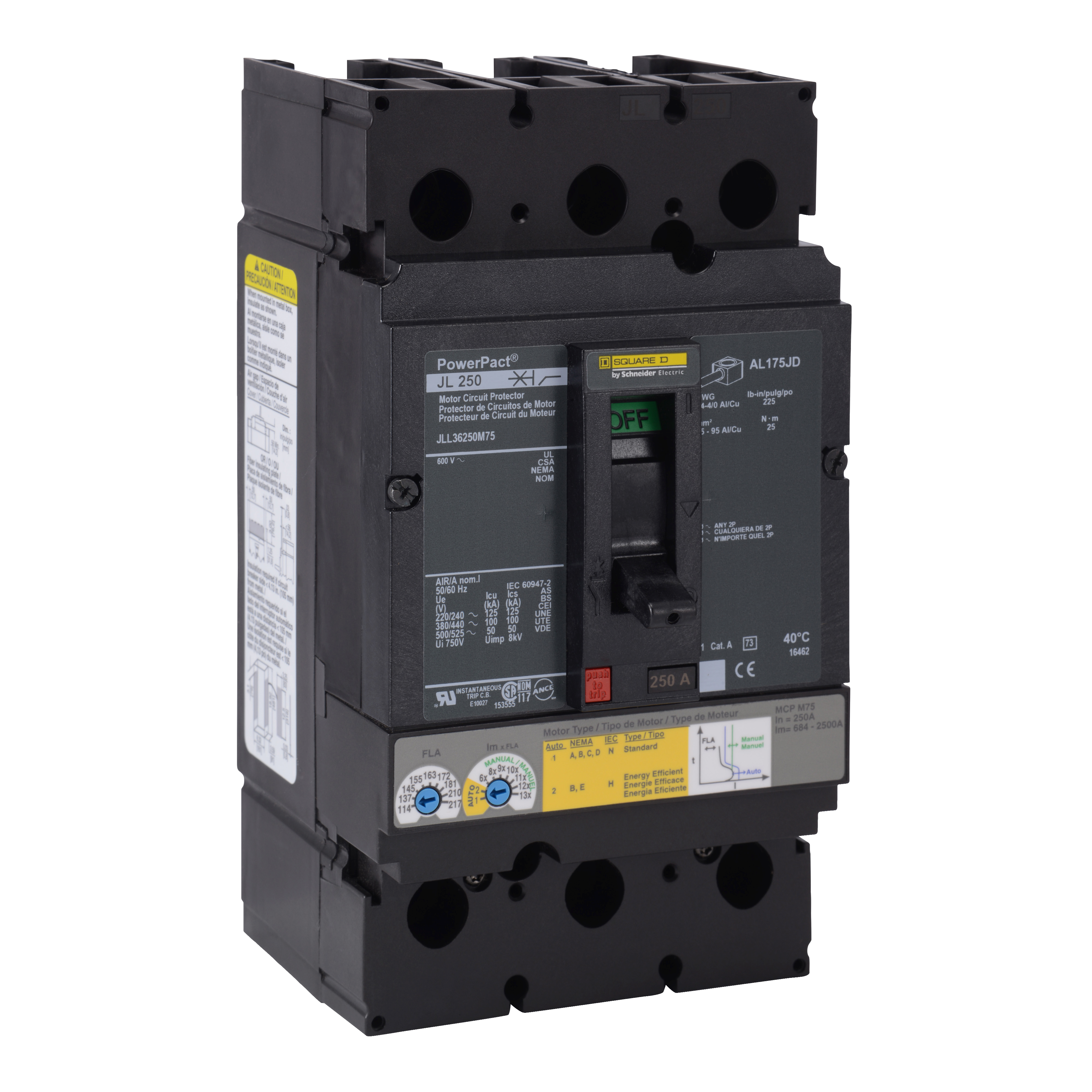

Square D™ JLL36250M75 MOTOR CIRCUIT PROTE
Custom_Product_Images_Illustration
Square D™
Square D™ JLL36250M75 MOTOR CIRCUIT PROTE
SKU620239
MFGR #JLL36250M75
Your Cost: $2,317.87/ea
List: Square D JLL36250M75 MOTOR CIRCUIT PROTECTOR 600V 250A,250 A,3P,600 V,J-Frame,Motor Circuit Protector,PowerPact,UL, CSA, IEC
Square D JLL36250M75 MOTOR CIRCUIT PROTECTOR 600V 250A,250 A,3P,600 V,J-Frame,Motor Circuit Protector,PowerPact,UL, CSA, IEC
Actuator Toggle Alternate Catalog Number JLL36250M75 ARRA Compliant N Buy American Compliant N Catalog Number JLL36250M75 Connection AWG 3/0...350 KCMIL ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE Country of Origin MX Currency USD Dimensions 7.52 in H x 4.12 in W x 5 in D EU RoHS Indicator Y Frame L Frequency Rating 50/60 Hz Gross Volume Per Pack 366.97 Gross Volume per Pack Metric 6013.47 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.2200 lb Gross Weight per Pack Metric 2.37 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.1000 in Height [Metric] 14.4780 cm Item Group 01127 Length 21.5000 in Length [Metric] 22.0980 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=56036663&lang=en-us Mounting Type Unit Number Of Poles 3 Operating Temperature 40 °C Returnable Y Standard IEC-UR-CE-CCC Sub Brand POWERPACT Substitute Product Catalog Number S29386 Temperature Rating 104 °F Trip Range 250 A,684...2500 A Type Motor Circuit Protector UNSPSC 39121616 UPC 11 78590166100 UPC 12 785901661009 Warranty Description Contractual Warranty:18 months Width 18.5000 in Width [Metric] 18.7960 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 125 KA 240 V AC-100 KA 480 V AC-50 KA 600 V AC,600 V AC Trip Type Electronic Voltage Rating 600 VAC UNIT MOUNT
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | JLL36250M75 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JLL36250M75 |
| Connection | AWG 3/0...350 KCMIL ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.52 in H x 4.12 in W x 5 in D |
| EU RoHS Indicator | Y |
| Frame | L |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 366.97 |
| Gross Volume per Pack Metric | 6013.47 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.2200 lb |
| Gross Weight per Pack Metric | 2.37 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.1000 in |
| Height [Metric] | 14.4780 cm |
| Item Group | 01127 |
| Length | 21.5000 in |
| Length [Metric] | 22.0980 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=56036663&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Returnable | Y |
| Standard | IEC-UR-CE-CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29386 |
| Temperature Rating | 104 °F |
| Trip Range | 250 A,684...2500 A |
| Type | Motor Circuit Protector |
| UNSPSC | 39121616 |
| UPC 11 | 78590166100 |
| UPC 12 | 785901661009 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.5000 in |
| Width [Metric] | 18.7960 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 125 KA 240 V AC-100 KA 480 V AC-50 KA 600 V AC,600 V AC |
| Trip Type | Electronic |
| Voltage Rating | 600 VAC |
| UNIT MOUNT |
