Square D™ JJL36250U54X MOLDED CASE CIRCUI
SKUPDW~11730140
MFGR #JJL36250U54X
Price Not Available

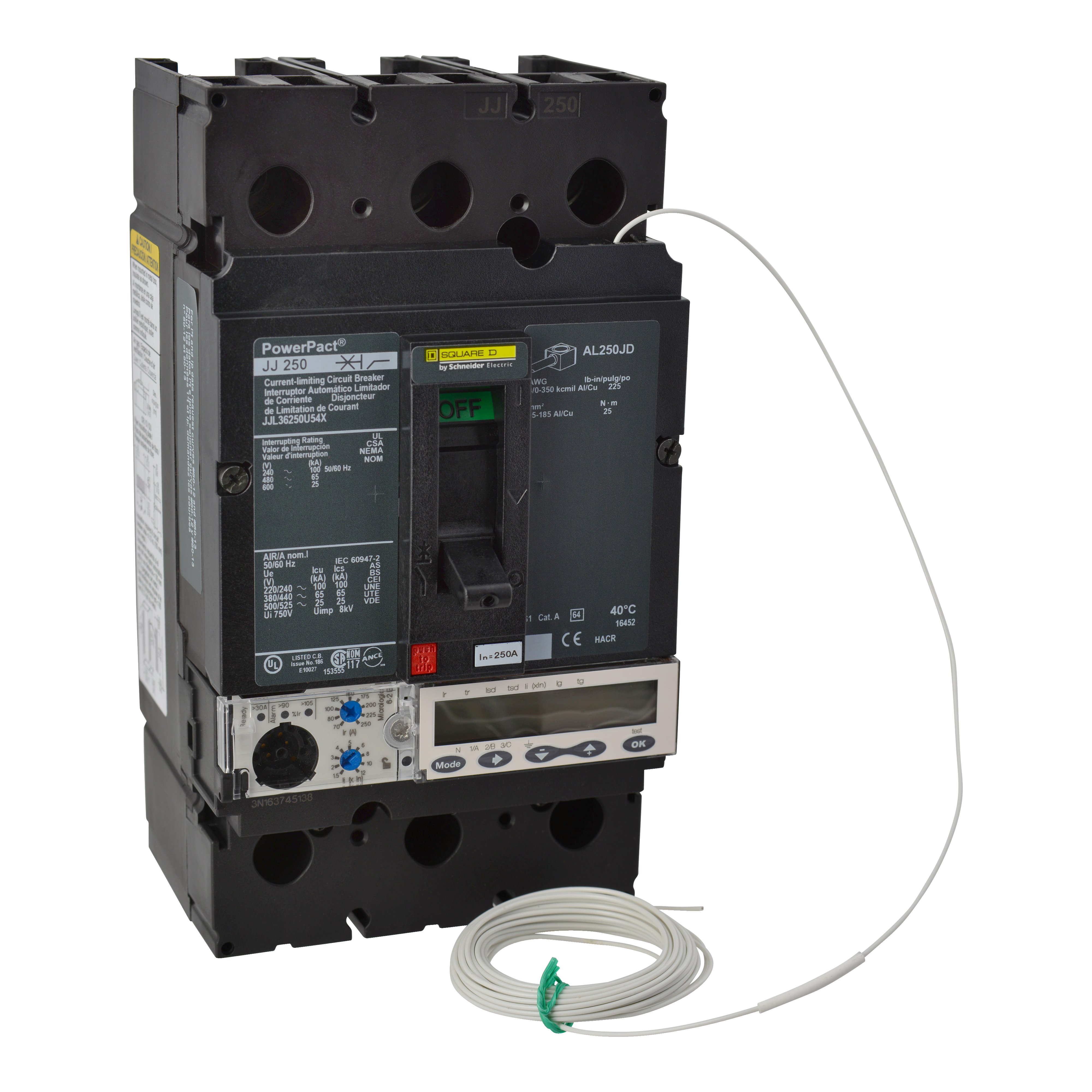

Square D JJL36250U54X MOLDED CASE CIRCUIT BREAKER 600V 250A
Square D JJL36250U54X MOLDED CASE CIRCUIT BREAKER 600V 250A
Actuator Type Toggle Alternate Catalog Number JJL36250U54X ARRA Compliant N Buy American Compliant N Catalog Number JJL36250U54X Connection AWG 3/0...350 KCMIL ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE Connection Type Feed-Through/Line/Load Lug Country of Origin US Currency USD Dimensions 7.52 in H x 4.12 in W x 5 in D EU RoHS Indicator Y Frame J Frequency Rating 50/60 Hz Gross Weight Per Pack 5.0000 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 5.1181 in Height [Metric] 13.0180 cm Item Group 01107 Length 8.2677 in Length [Metric] 21.4330 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980482&lang=en-us Mounting Type Unit Number Of Poles 3 Operating Temperature 50 °C Phase 3 pH Returnable Y Standard CE-UL LISTED-IEC-CCC-CSA Temperature Rating 122 °F Trip Range 250 A Type Type JJL UNSPSC 39121616 UPC 11 78590198216 UPC 12 785901982166 Warranty Description Contractual Warranty:18 months Width 7.0866 in Width [Metric] 18.4150 cm Wire Size 3/0 AWG to 350 kcmil (Al/Cu) Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Trip Type Electronic Energy Micrologic 6.2 E LSIG Voltage Rating 600 VAC UNIT MOUNT 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | JJL36250U54X |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JJL36250U54X |
| Connection | AWG 3/0...350 KCMIL ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE |
| Connection Type | Feed-Through/Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 7.52 in H x 4.12 in W x 5 in D |
| EU RoHS Indicator | Y |
| Frame | J |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 5.0000 lb |
| Gross Weight per Pack Metric | 2.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.1181 in |
| Height [Metric] | 13.0180 cm |
| Item Group | 01107 |
| Length | 8.2677 in |
| Length [Metric] | 21.4330 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980482&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Operating Temperature | 50 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | CE-UL LISTED-IEC-CCC-CSA |
| Temperature Rating | 122 °F |
| Trip Range | 250 A |
| Type | Type JJL |
| UNSPSC | 39121616 |
| UPC 11 | 78590198216 |
| UPC 12 | 785901982166 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.0866 in |
| Width [Metric] | 18.4150 cm |
| Wire Size | 3/0 AWG to 350 kcmil (Al/Cu) |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC |
| Trip Type | Electronic Energy Micrologic 6.2 E LSIG |
| Voltage Rating | 600 VAC |
| UNIT MOUNT |
| 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC interrupt rating |
