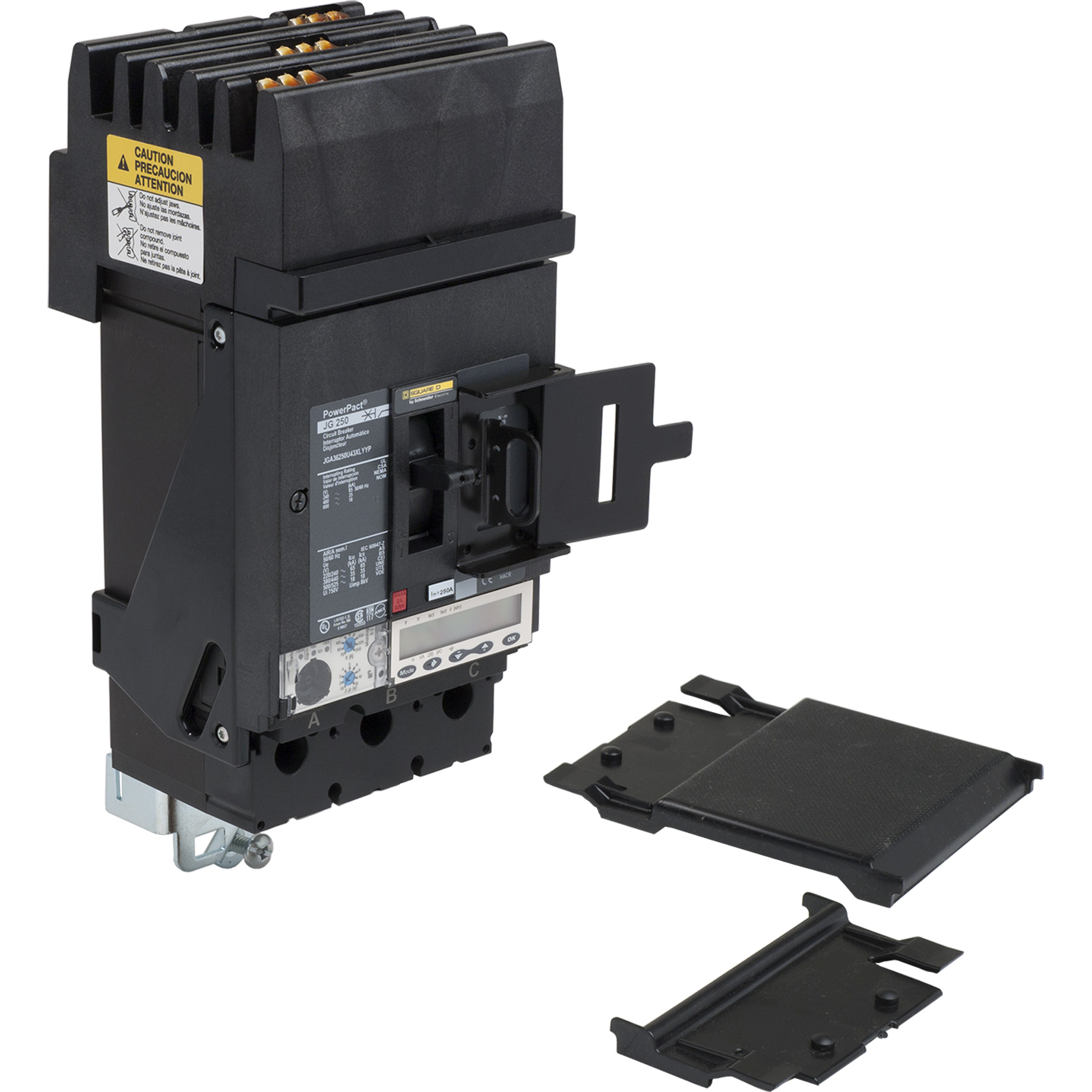

Square D™ JGA36250U43XLYYP Molded Case Circuit Breaker, 600 VAC, 250 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Interrupt, 3 Poles, Electronic Trip
Custom_Product_Images_Illustration
Square D™ JGA36250U43XLYYP Molded Case Circuit Breaker, 600 VAC, 250 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Interrupt, 3 Poles, Electronic Trip
SKUPDW~10430292
MFGR #JGA36250U43XLYYP
Your Cost: $3,455.00/ea
List: Schneider Electric I-Line™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Interrupt, J Frame, Electronic Trip, 3 Pole, Padlock-Off Handle Actuator, Line/Load Lug Connection, 4 to 4/0 AWG Wire, NEMA AB1 Enclosure, Surface Mounting, 104 deg F, 6.4 in H x 4.12 in W x 4.36 in D Dimensions
Schneider Electric I-Line™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Interrupt, J Frame, Electronic Trip, 3 Pole, Padlock-Off Handle Actuator, Line/Load Lug Connection, 4 to 4/0 AWG Wire, NEMA AB1 Enclosure, Surface Mounting, 104 deg F, 6.4 in H x 4.12 in W x 4.36 in D Dimensions
Actuator Toggle Alternate Catalog Number JGA36250U43XLYYP Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number JGA36250U43XLYYP Connection I-Line connection line;lugs load; AWG 3/0...350 kcmil aluminium/copper terminals Country of Origin US Currency USD EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 761.10 Gross Volume per Pack Metric 12472.22 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0367 lb Gross Weight per Pack Metric 3.67 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 14.9860 in Height [Metric] 14.9860 cm Item Group 01104 Length 38.1000 in Length [Metric] 38.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268666971&lang=en-us Number Of Poles 3 Returnable N Sub Brand PowerPact J Type Motor Circuit Protector;Padlocking device ON and OFF end;low amperage lug UNSPSC 39121616 UPC 11 78590108749 UPC 12 785901087496 Warranty Description Contractual Warranty:18 months Width 21.8440 in Width [Metric] 21.8440 cm Brand Square D™ Manufacturer Schneider Electric Trip Type Electronic, ammeter, Micrologic 5.2 A, LSI Distribution Modbus;Ethernet;Overload protection;short-circuit protection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | JGA36250U43XLYYP |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JGA36250U43XLYYP |
| Connection | I-Line connection line;lugs load; AWG 3/0...350 kcmil aluminium/copper terminals |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 761.10 |
| Gross Volume per Pack Metric | 12472.22 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0367 lb |
| Gross Weight per Pack Metric | 3.67 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 14.9860 in |
| Height [Metric] | 14.9860 cm |
| Item Group | 01104 |
| Length | 38.1000 in |
| Length [Metric] | 38.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268666971&lang=en-us |
| Number Of Poles | 3 |
| Returnable | N |
| Sub Brand | PowerPact J |
| Type | Motor Circuit Protector;Padlocking device ON and OFF end;low amperage lug |
| UNSPSC | 39121616 |
| UPC 11 | 78590108749 |
| UPC 12 | 785901087496 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.8440 in |
| Width [Metric] | 21.8440 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | Electronic, ammeter, Micrologic 5.2 A, LSI |
| Distribution |
| Modbus;Ethernet;Overload protection;short-circuit protection |
