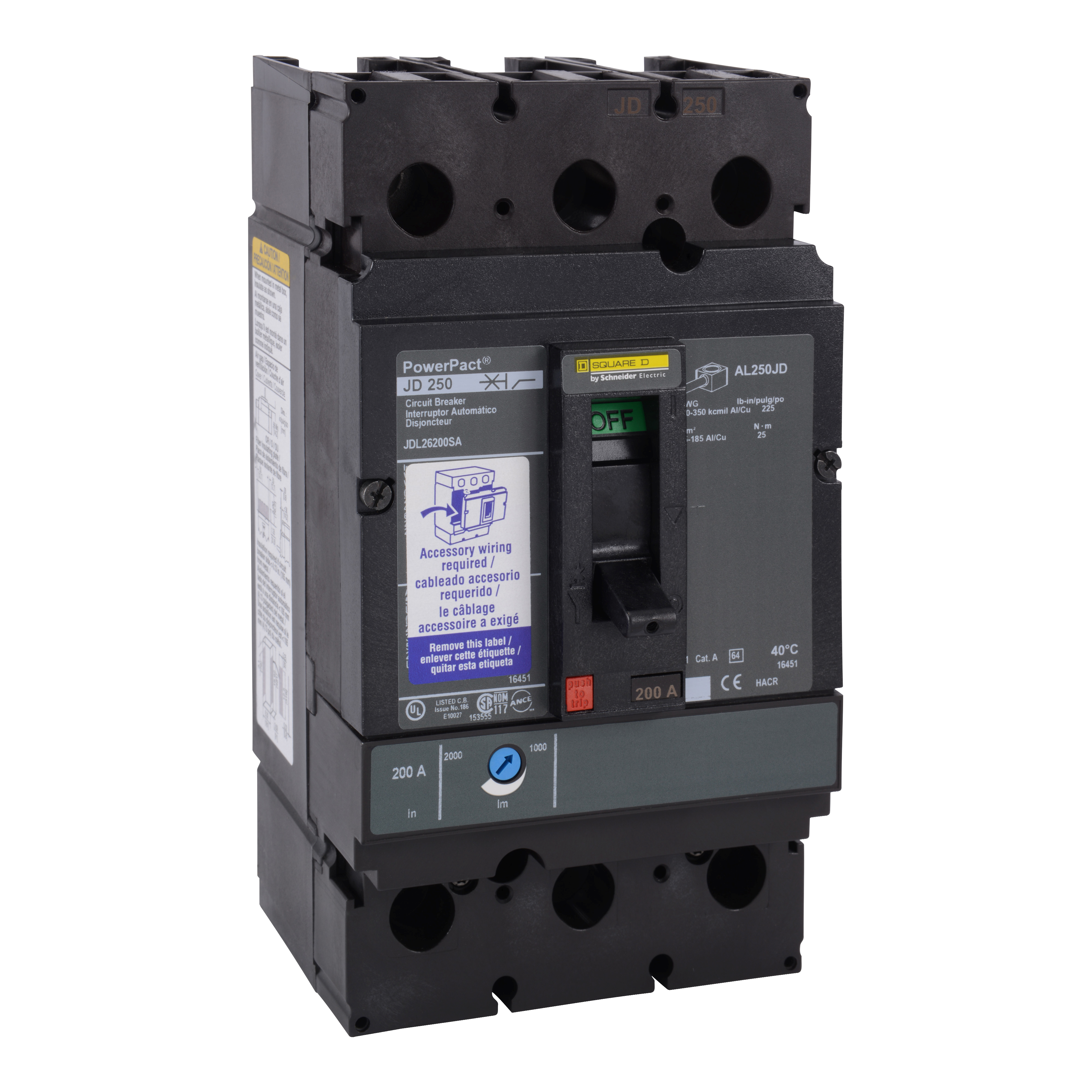

Square D™ JDL26200CLC Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC Interrupt, 2 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™ JDL26200CLC Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC Interrupt, 2 Poles, Thermal/Magnetic Trip
SKUPDW~11729062
MFGR #JDL26200CLC
Your Cost: $1,766.73/ea
List: Schneider Electric PowerPact™ Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC Interrupt, J Frame, Thermal/Magnetic Trip, 2 Pole, Cable Line/Load Lug Connection, 1/0 AWG to300 kcmil (Cu) Wire, Unit Mounting, 104 deg F, 7.52 in H x 4.12 in W x 5 in D Dimensions
Schneider Electric PowerPact™ Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC Interrupt, J Frame, Thermal/Magnetic Trip, 2 Pole, Cable Line/Load Lug Connection, 1/0 AWG to300 kcmil (Cu) Wire, Unit Mounting, 104 deg F, 7.52 in H x 4.12 in W x 5 in D Dimensions
Alternate Catalog Number JDL26200CLC ARRA Compliant N Buy American Compliant N Catalog Number JDL26200CLC Connection AWG 1/0...300 KCMIL COPPER,COPPER CABLE LUG LOAD-COPPER CABLE LUG LINE Connection Type Cable Line/Load Lug Country of Origin US Currency USD Dimensions 7.52 in H x 4.12 in W x 5 in D EU RoHS Indicator Y Frame J Gross Weight Per Pack 0.0227 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.0180 in Height [Metric] 13.0180 cm Item Group 01110 Length 21.4330 in Length [Metric] 21.4330 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268666837&lang=en-us Mounting Type Unit Number Of Poles 2 Operating Temperature 40 A°C Returnable N Standard CE-IEC-UL LISTED-CSA-CCC Temperature Rating 104 Trip Range 1000 A,200 A,2000 A Type Circuit Breaker UNSPSC 39121601 UPC 11 78590195205 UPC 12 785901952053 Warranty Description Contractual Warranty:18 months Width 18.4150 in Width [Metric] 18.4150 cm Wire Size 1/0 AWG to300 kcmil (Cu) Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Interrupt Rating 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC UNIT MOUNT
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | JDL26200CLC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JDL26200CLC |
| Connection | AWG 1/0...300 KCMIL COPPER,COPPER CABLE LUG LOAD-COPPER CABLE LUG LINE |
| Connection Type | Cable Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 7.52 in H x 4.12 in W x 5 in D |
| EU RoHS Indicator | Y |
| Frame | J |
| Gross Weight Per Pack | 0.0227 lb |
| Gross Weight per Pack Metric | 2.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.0180 in |
| Height [Metric] | 13.0180 cm |
| Item Group | 01110 |
| Length | 21.4330 in |
| Length [Metric] | 21.4330 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268666837&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 2 |
| Operating Temperature | 40 A°C |
| Returnable | N |
| Standard | CE-IEC-UL LISTED-CSA-CCC |
| Temperature Rating | 104 |
| Trip Range | 1000 A,200 A,2000 A |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| UPC 11 | 78590195205 |
| UPC 12 | 785901952053 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.4150 in |
| Width [Metric] | 18.4150 cm |
| Wire Size | 1/0 AWG to300 kcmil (Cu) |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Interrupt Rating | 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC |
| UNIT MOUNT |
