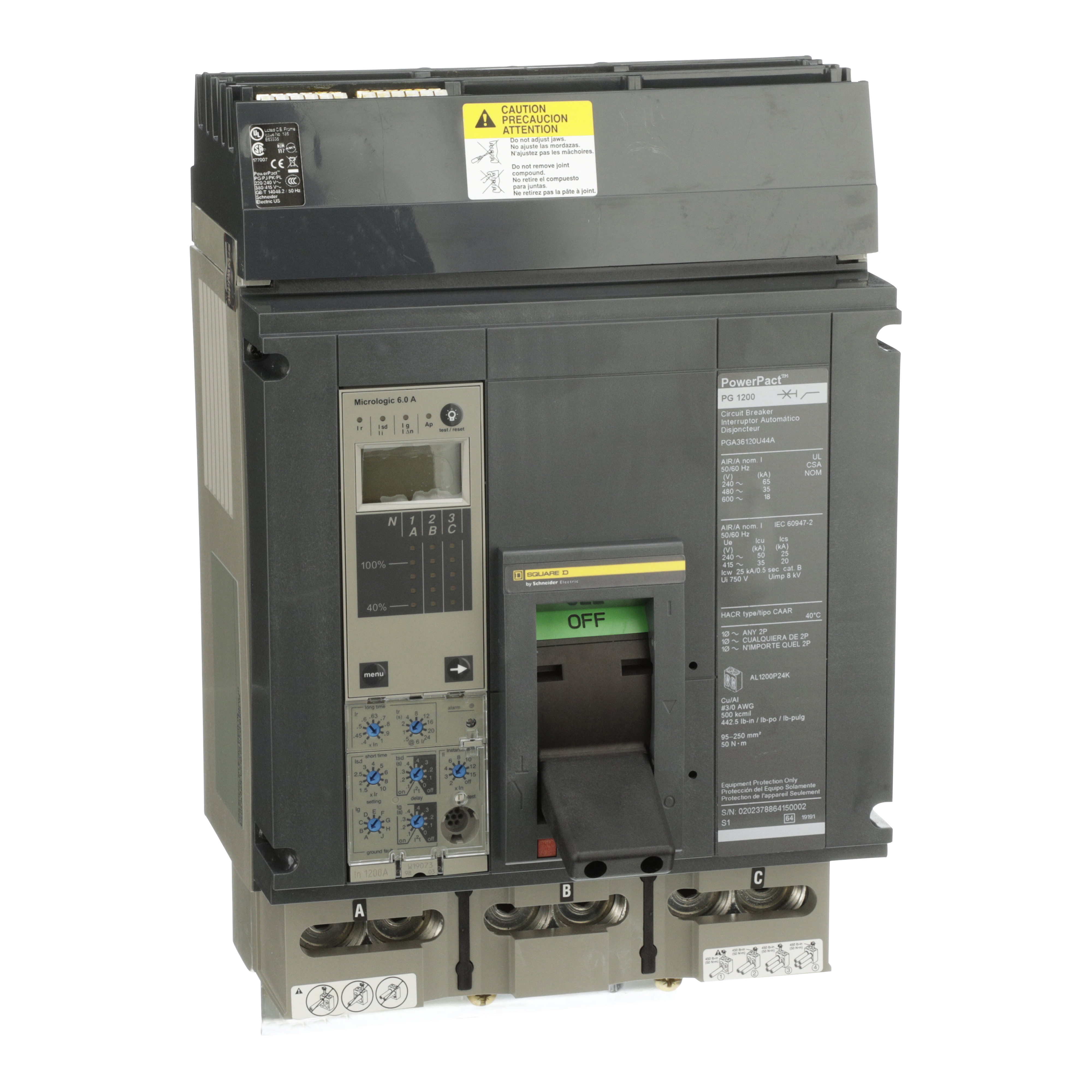

Square D™ I-Line™ PowerPact™ PGA36120U44A Type PGA Molded Case Circuit Breaker, 600 VAC, 1200 A, 3 Poles
Molded Case Circuit Breakers
240506
MFG #: PGA36120U44A
Square D™
20438.24000
/ ea
Square D PGA36120U44A MOLDED CASE CIRCUIT BREAKER 600V 1200A,100-1200A,1200A,16.20 in.,3-Phase,3P,40deg Celsius,50/60Hz,600 Vac,65kA240Vac - 35kA480Vac - 18kA600Vac,8.10 in.,8.30 in.,Ambient environment,Electronic,Electronic Trip Circuit Breaker,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Micrologic Ammeter Trip Unit (6.0A) LSIG,P-Frame,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,Various
- 360 Degree View URL - index.html?pid=11003&id=9113381360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=PGA36120U44A_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Line Drawing URL(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Service Manual URL - 11003_0MVS43HU5R1IP2LW.pdf(Service Manual URL)
- Video - https://www.youtube.com/embed/NhNfYyoXvv0(Video)
- Video - https://www.youtube.com/embed/aAAHsXct5NE(Video)
- Spec Sheet URL - 11003_MK35SVLUCJOZBD61.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_I7XAGM3SY05VCROL.zip(Tech Drawing URL)
- Tech Bulletin URL - 11003_VEU5NXPTYBM814LQ.pdf(Tech Bulletin URL)
- User Manual URL - files?p_enDocType=User+guide&p_File_Name=48049-148-05.pdf(User Manual URL)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact™ and P-frame circuit breakers |
| Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
