Square D™

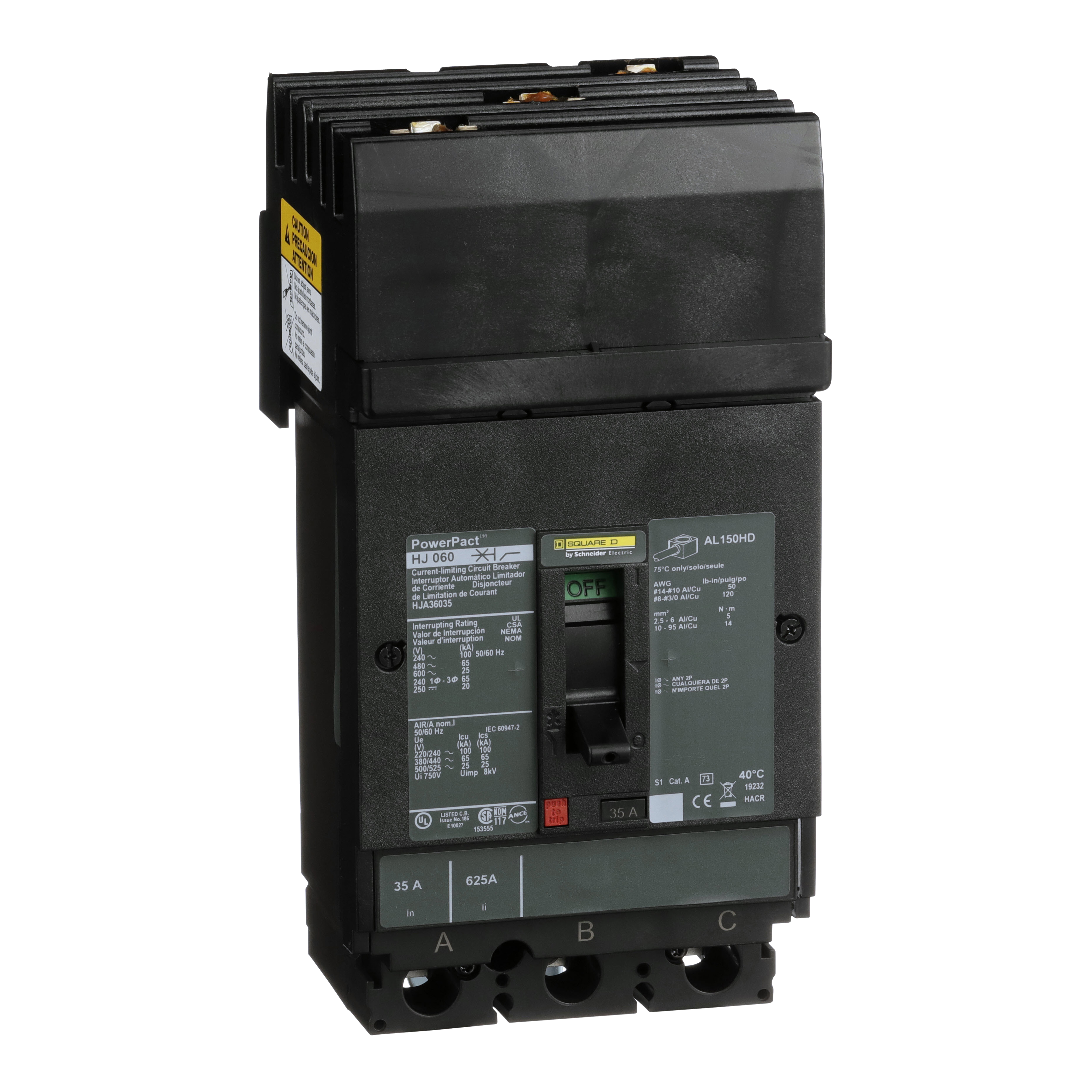

Square D™ I-Line™ PowerPact™ HJA36035 Type HJA Molded Case Circuit Breaker, 600 VAC/250 VDC, 35 A, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ I-Line™ PowerPact™ HJA36035 Type HJA Molded Case Circuit Breaker, 600 VAC/250 VDC, 35 A, 3 Poles
SKU241262
MFGR #HJA36035
Your Cost: $1,267.06/ea
List: Square D HJA36035 MOLDED CASE CIRCUIT BREAKER 600V 35A,100 kA 240 V AC-65 kA 480 V AC-25 kA 600 V AC,600 V AC,3-Pole,35 A,35 A,400 A,850 A,600 V AC,I-Line Connection (ON end) - Lugs (OFF end) ABC,J,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in,thermal-magnetic
Square D HJA36035 MOLDED CASE CIRCUIT BREAKER 600V 35A,100 kA 240 V AC-65 kA 480 V AC-25 kA 600 V AC,600 V AC,3-Pole,35 A,35 A,400 A,850 A,600 V AC,I-Line Connection (ON end) - Lugs (OFF end) ABC,J,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in,thermal-magnetic
Actuator Type Toggle Alternate Catalog Number HJA36035 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HJA36035 Connection AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD Connection Type A-Line/Line/Load Lugs Country of Origin US Currency USD Dimensions 9.73 in H x 4.48 in W x 4.8 in D EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 765.00 Gross Volume per Pack Metric 12536.06 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.3600 lb Gross Weight per Pack Metric 2.43 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.4940 in Height [Metric] 15.0000 cm Item Group 01117 Length 37.8460 in Length [Metric] 37.8000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423419&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard CSA-CE-UL LISTED-IEC Sub Brand POWERPACT Substitute Product Catalog Number S29386 Temperature Rating 104 °F Trip Range 400 to 850 A Type Type HJA UNSPSC 39121601 UPC 11 78590142239 UPC 12 785901422396 Warranty Description Contractual Warranty:18 months Width 21.8440 in Width [Metric] 21.6000 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 35 A Interrupt Rating 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency 65 kA at 480 VAC, 25 kA at 600 VAC, 100 kA at 240 VAC, 20 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | HJA36035 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HJA36035 |
| Connection | AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | A-Line/Line/Load Lugs |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 9.73 in H x 4.48 in W x 4.8 in D |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 765.00 |
| Gross Volume per Pack Metric | 12536.06 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.3600 lb |
| Gross Weight per Pack Metric | 2.43 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.4940 in |
| Height [Metric] | 15.0000 cm |
| Item Group | 01117 |
| Length | 37.8460 in |
| Length [Metric] | 37.8000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423419&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | CSA-CE-UL LISTED-IEC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29386 |
| Temperature Rating | 104 °F |
| Trip Range | 400 to 850 A |
| Type | Type HJA |
| UNSPSC | 39121601 |
| UPC 11 | 78590142239 |
| UPC 12 | 785901422396 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.8440 in |
| Width [Metric] | 21.6000 cm |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 35 A |
| Interrupt Rating | 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
| 65 kA at 480 VAC, 25 kA at 600 VAC, 100 kA at 240 VAC, 20 kA at 250 VDC interrupt rating |
