Square D™

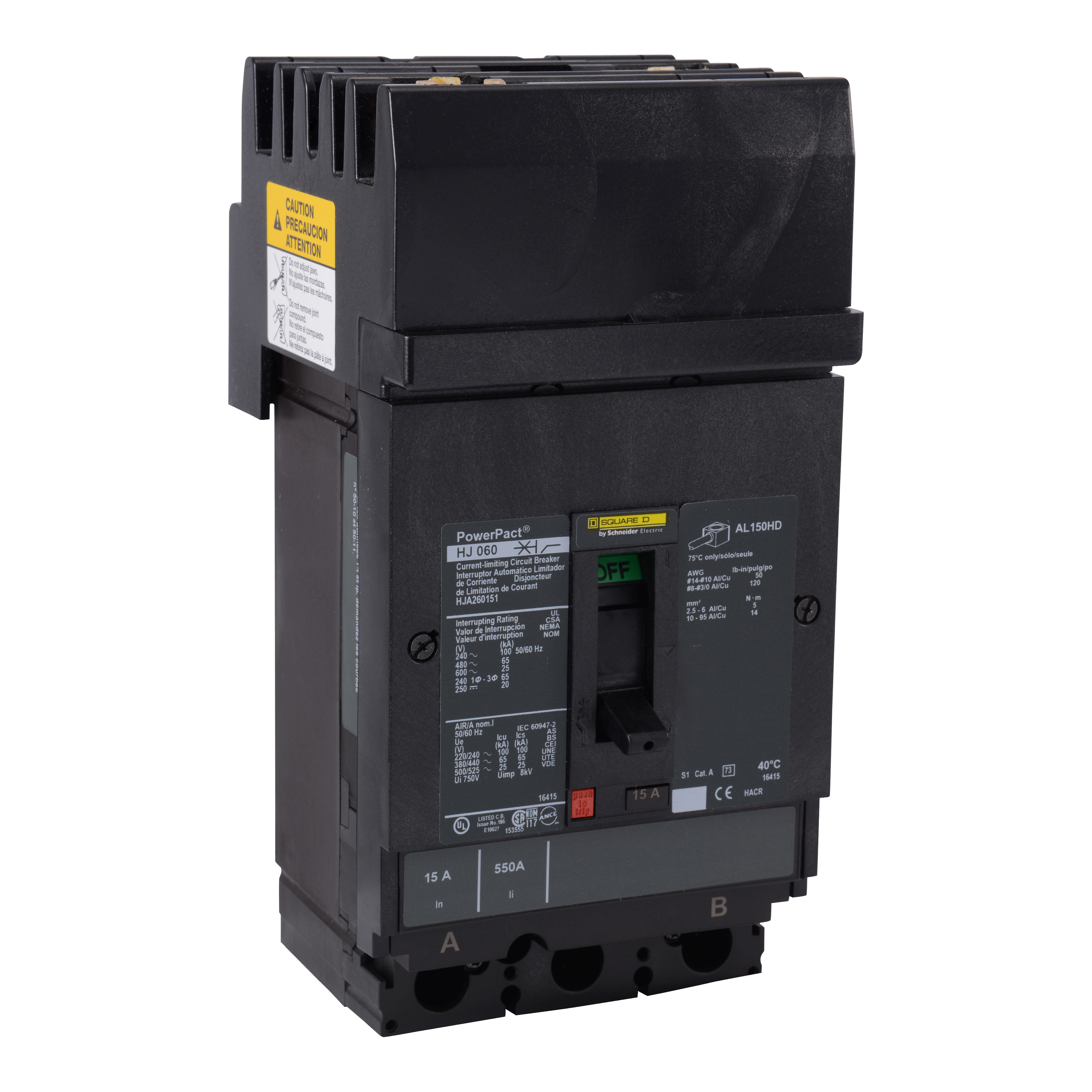

Square D™ I-Line™ PowerPact™ HJA260151 Type HJA Molded Case Circuit Breaker, 600 VAC/250 VDC, 15 A, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ I-Line™ PowerPact™ HJA260151 Type HJA Molded Case Circuit Breaker, 600 VAC/250 VDC, 15 A, 2 Poles
SKU781607
MFGR #HJA260151
Your Cost: $1,012.75/ea
List: Square D HJA260151 MOLDED CASE CIRCUIT BREAKER 600V 15A,100 kA 240 V AC-25 kA 600 V AC-65 kA 480 V AC,600 V AC,15 A,15 A,350 A,750 A,2-Pole,600 V AC,I-Line Connection (ON end) - Lugs (OFF end) AB,J,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in,thermal-magnetic
Square D HJA260151 MOLDED CASE CIRCUIT BREAKER 600V 15A,100 kA 240 V AC-25 kA 600 V AC-65 kA 480 V AC,600 V AC,15 A,15 A,350 A,750 A,2-Pole,600 V AC,I-Line Connection (ON end) - Lugs (OFF end) AB,J,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in,thermal-magnetic
Actuator Type Toggle Alternate Catalog Number HJA260151 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HJA260151 Connection AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD Connection Type A-Line/Load Lug Country of Origin US Currency USD Dimensions 9.73 in H x 2.94 in W x 4.8 in D EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Weight Per Pack 5.2900 lb Gross Weight per Pack Metric 2.40 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.7000 in Height [Metric] 9.8430 cm Item Group 01117 Length 37.2000 in Length [Metric] 37.1480 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423117&lang=en-us Mounting Type Plug-In Number Of Poles 2 Operating Temperature 40 °C Phase 1 pH Returnable Y Standard CSA-CE-IEC-UL LISTED Sub Brand POWERPACT Temperature Rating 104 °F Trip Range 350 to 750 A Type Type HJA UNSPSC 39121601 UPC 11 78590183418 UPC 12 785901834182 Warranty Description Contractual Warranty:18 months Width 20.7000 in Width [Metric] 20.6380 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 65/25/100/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency 65 kA at 480 VAC, 25 kA at 600 VAC, 100 kA at 240 VAC, 20 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | HJA260151 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HJA260151 |
| Connection | AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | A-Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 9.73 in H x 2.94 in W x 4.8 in D |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 5.2900 lb |
| Gross Weight per Pack Metric | 2.40 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.7000 in |
| Height [Metric] | 9.8430 cm |
| Item Group | 01117 |
| Length | 37.2000 in |
| Length [Metric] | 37.1480 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423117&lang=en-us |
| Mounting Type | Plug-In |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | CSA-CE-IEC-UL LISTED |
| Sub Brand | POWERPACT |
| Temperature Rating | 104 °F |
| Trip Range | 350 to 750 A |
| Type | Type HJA |
| UNSPSC | 39121601 |
| UPC 11 | 78590183418 |
| UPC 12 | 785901834182 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 20.7000 in |
| Width [Metric] | 20.6380 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 65/25/100/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
| 65 kA at 480 VAC, 25 kA at 600 VAC, 100 kA at 240 VAC, 20 kA at 250 VDC interrupt rating |
