Square D™

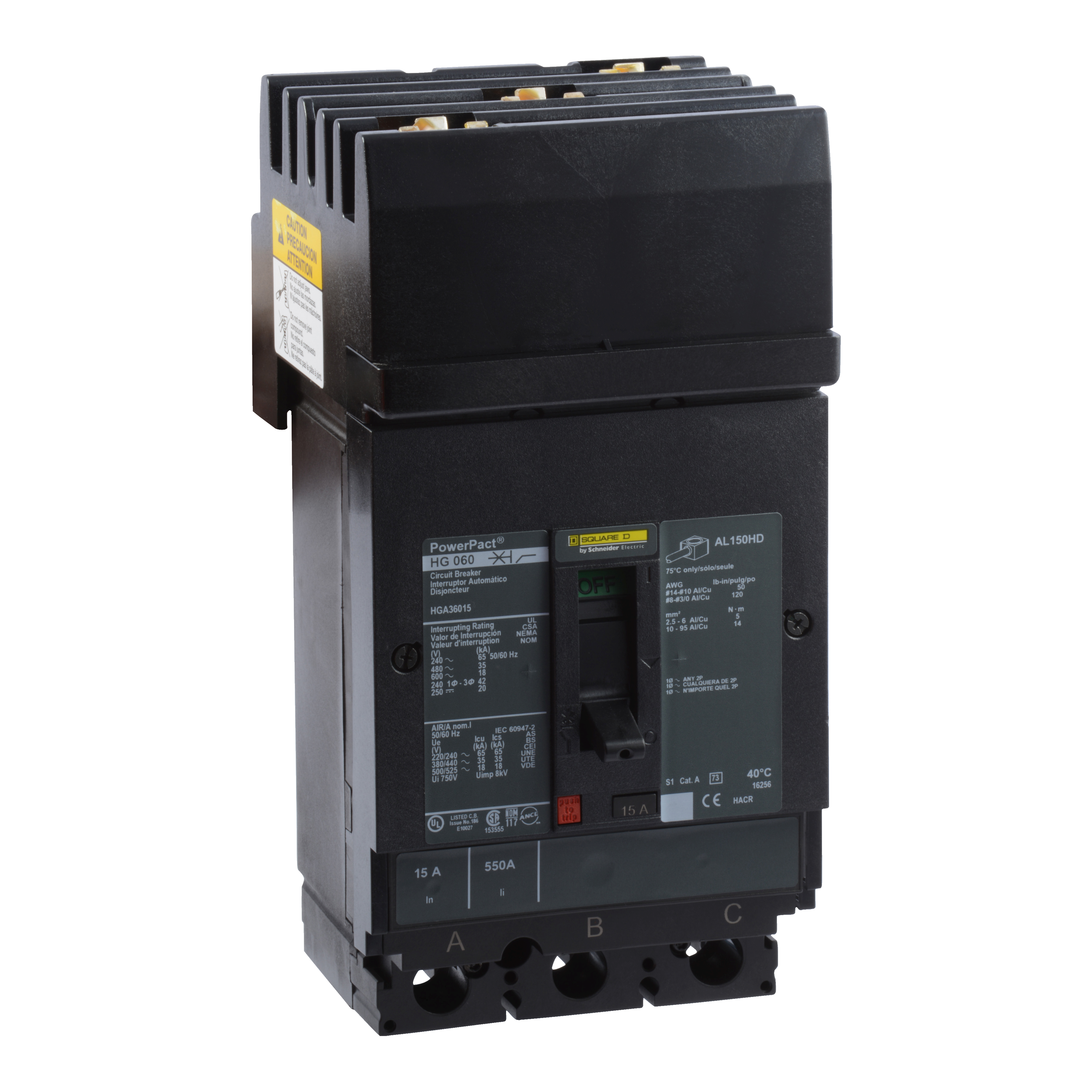

Square D™ I-Line™ PowerPact™ HGA36015 Molded Case Circuit Breaker, 600 VAC, 15 A, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ I-Line™ PowerPact™ HGA36015 Molded Case Circuit Breaker, 600 VAC, 15 A, 3 Poles, Thermal Magnetic Trip
SKU305954
MFGR #HGA36015
$/ea
Square D HGA36015 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 15A,-13F and 158F (-25 C and +70 C),15A,3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,H-Frame,Hold 350A - Trip 750A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Square D HGA36015 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 15A,-13F and 158F (-25 C and +70 C),15A,3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,H-Frame,Hold 350A - Trip 750A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Actuator Toggle Alternate Catalog Number HGA36015 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number HGA36015 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type I-Line® Lug Country of Origin US Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 828.75 Gross Volume per Pack Metric 13580.73 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0247 lb Gross Weight per Pack Metric 2.46 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 16.5100 in Height [Metric] 15.2000 cm Item Group 01117 Length 38.1000 in Length [Metric] 37.8000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422405&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 3 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number PDC3HD2 Temperature Rating -13 to 158 °F Trip Range 350 to 750 A Type Type HGA UNSPSC 39121616 UPC 11 78590163256 UPC 12 785901632566 Warranty Description Contractual Warranty:18 months Width 21.5900 in Width [Metric] 21.6000 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 18/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Distribution I-LINE PLUG-ON Easy to install, extremely versatile, a wide variety of terminal Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | HGA36015 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HGA36015 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | I-Line® Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 828.75 |
| Gross Volume per Pack Metric | 13580.73 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0247 lb |
| Gross Weight per Pack Metric | 2.46 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 16.5100 in |
| Height [Metric] | 15.2000 cm |
| Item Group | 01117 |
| Length | 38.1000 in |
| Length [Metric] | 37.8000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422405&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | PDC3HD2 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 350 to 750 A |
| Type | Type HGA |
| UNSPSC | 39121616 |
| UPC 11 | 78590163256 |
| UPC 12 | 785901632566 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.5900 in |
| Width [Metric] | 21.6000 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 18/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Distribution |
| I-LINE PLUG-ON |
| Easy to install, extremely versatile, a wide variety of terminal |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
