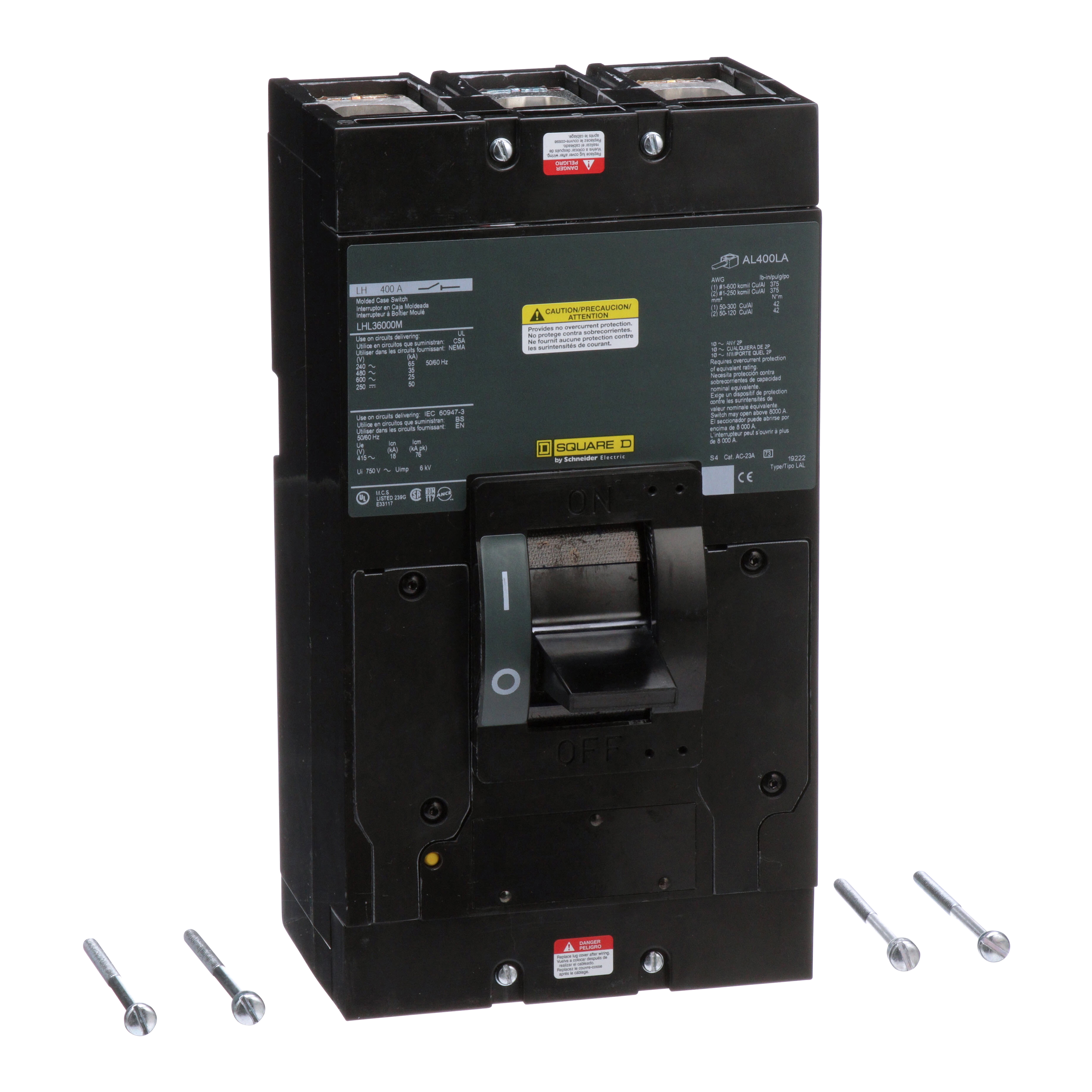

Square D™ I-Line™ LHL36000M Type LHL Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ LHL36000M Type LHL Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 25 kA Interrupt, 3 Poles
SKU95958
MFGR #LHL36000M
Your Cost: $2,440.31/ea
List: Square D LHL36000M AUTOMATIC MOLDED CASE SWITCH 600V 400A,400 A,50/60 Hz,600 V,L-Frame,Molded Case Switch,Thermal Magnetic
Square D LHL36000M AUTOMATIC MOLDED CASE SWITCH 600V 400A,400 A,50/60 Hz,600 V,L-Frame,Molded Case Switch,Thermal Magnetic
Alternate Catalog Number LHL36000M ARRA Compliant N Buy American Compliant N Catalog Number LHL36000M Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 11 in H x 6 in W x 5.8 in D EU RoHS Indicator Y Frame L Frequency Rating 50/60 Hz Gross Volume Per Pack 3141.36 Gross Volume per Pack Metric 51477.50 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 16.2500 lb Gross Weight per Pack Metric 7.37 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 30.2260 in Height [Metric] 30.2260 cm Item Group 00935 Length 50.0380 in Length [Metric] 50.0380 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430121&lang=en-us Mounting Type Unit Number Of Poles 3 Phase 3 pH Returnable Y Standard IEC-CSA-UL LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedCCC MarkedIEC CertifiedECCN EAR99 Substitute Product Catalog Number S29452 Temperature Rating 104 °F Trip Range 8000 to 9600 A Type Type LHL High Interrupting UNSPSC 39121601 UPC 11 78590104227 UPC 12 785901042273 Warranty Description Contractual Warranty:18 months Width 34.0360 in Width [Metric] 34.0360 cm Wire Size 1 AWG to 600 kcmil, 1 AWG to 250 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 25/10 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC V UNIT MOUNT Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions Thermal magnetic circuit breakers use bi-metals and electromagnetic assemblies to provide overcurrent protection Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125 VDC, 10 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LHL36000M |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LHL36000M |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.8 in D |
| EU RoHS Indicator | Y |
| Frame | L |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3141.36 |
| Gross Volume per Pack Metric | 51477.50 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 16.2500 lb |
| Gross Weight per Pack Metric | 7.37 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 30.2260 in |
| Height [Metric] | 30.2260 cm |
| Item Group | 00935 |
| Length | 50.0380 in |
| Length [Metric] | 50.0380 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430121&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | IEC-CSA-UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedCCC MarkedIEC CertifiedECCN EAR99 |
| Substitute Product Catalog Number | S29452 |
| Temperature Rating | 104 °F |
| Trip Range | 8000 to 9600 A |
| Type | Type LHL High Interrupting |
| UNSPSC | 39121601 |
| UPC 11 | 78590104227 |
| UPC 12 | 785901042273 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 34.0360 in |
| Width [Metric] | 34.0360 cm |
| Wire Size | 1 AWG to 600 kcmil, 1 AWG to 250 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 25/10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC V |
| UNIT MOUNT |
| Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions |
| Thermal magnetic circuit breakers use bi-metals and electromagnetic assemblies to provide overcurrent protection |
| Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads |
| 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125 VDC, 10 kA at 250 VDC interrupt rating |
