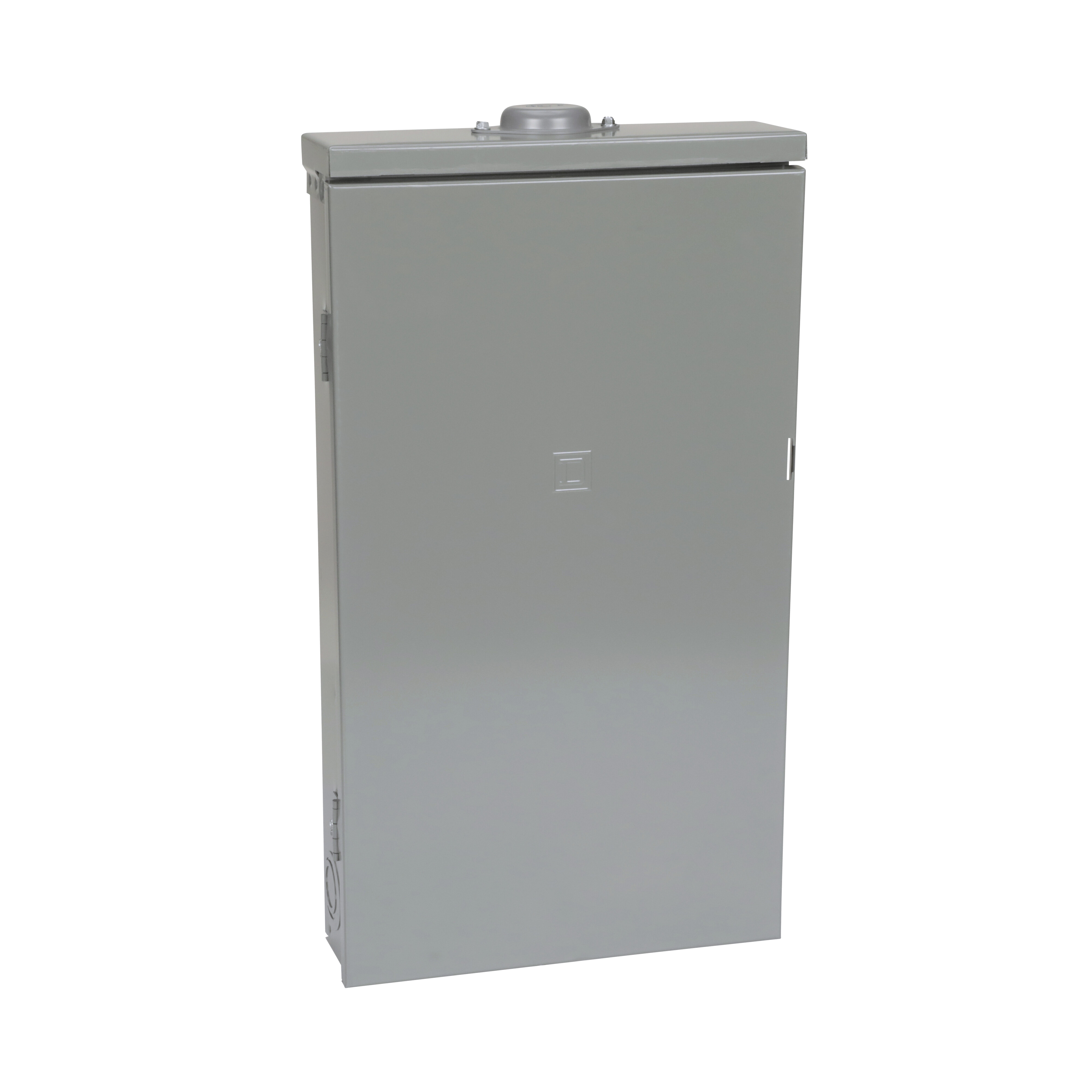

Square D™ Homeline® HOM12L225PRB Single Phase Main Lug Load Center, 120/240 VAC, 225 A, 1 Pole, 10 kA Interrupt
Custom_Product_Images_Illustration
Square D™ Homeline® HOM12L225PRB Single Phase Main Lug Load Center, 120/240 VAC, 225 A, 1 Pole, 10 kA Interrupt
SKU938198
MFGR #HOM12L225PRB
Your Cost: $109.10/ea
List: Square D by Schneider Electric HOM12L225PRB Square D by HOM OUTD 225A MLO 12CIR,#6 to #1 AWG(Cu)/#6 to #2/0 AWG(Al),1-Phase,120/240 V AC,120/240 V AC,225 A,3-Wire,Convertible Mains - Lugs,Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Homeline,Load Center,NEMA 3R,Tin Plated Aluminium,UL Listed
Square D by Schneider Electric HOM12L225PRB Square D by HOM OUTD 225A MLO 12CIR,#6 to #1 AWG(Cu)/#6 to #2/0 AWG(Al),1-Phase,120/240 V AC,120/240 V AC,225 A,3-Wire,Convertible Mains - Lugs,Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Homeline,Load Center,NEMA 3R,Tin Plated Aluminium,UL Listed
Alternate Catalog Number HOM12L225PRB Application DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. ARRA Compliant N Breaker Mounting Panel Bus Rating TIN PLATED ALUMINIUM Buy American Compliant N Cable Size AWG 4...250 KCMIL COPPER-AWG 4...300 KCMIL ALUMINIUM Catalog Number HOM12L225PRB Country of Origin US Cover Type SURFACE COVER Currency USD Depth 4.5276 in Dimensions 26.04 in H x 14.75 in W x 4.52 in D Enclosure Baked enamel Gray;Welded galvannealed steel;5R Enclosure Box Size 5R Enclosure Type NEMA 3R EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 2170.00 Gross Volume per Pack Metric 35559.79 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 27.3600 lb Gross Weight per Pack Metric 12.41 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 12.7000 in Height [Metric] 12.7000 cm Housing Material Steel Item Group 00145 Length 71.1200 in Length [Metric] 71.1200 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253889&lang=en-us Mounting Type Plug-On Number of Circuits 12 Number Of Feeders 12 Number Of Poles 1 Number Of Spaces 12 Phase 1 Returnable Y Standard UL E-6294 Sub Brand HOMELINE Substitute Product Catalog Number HOM250PSPD Type 1-Phase Convertible Neutral Rainproof UNSPSC 39121101 UPC 11 78590186110 UPC 12 785901861102 Width 39.3700 in Width [Metric] 39.3700 cm Wire Size 6 to 1 AWG, 6 to 2/0 AWG Wiring Configuration 3-wire Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 225 A Interrupt Rating 10 kA Voltage Rating 120/240 VAC DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. MAIN LUGS,TIN PLATED ALUMINIUM BUSBAR Tin plated aluminum bus construction on main lug or main circuit breaker panels Service entrance equipment capable panels Straight-in wiring to help minimize service cable installation Single captive screw interior mounting on indoor panels to ease removal New side hinge doors on outdoor convertible main panels Outdoor panel covers are lockable with padlock Gray baked enamel electrodeposited over cleaned, phosphatized steel Top or bottom feed by rotating convertible mains panels 180 deg Split branch neutral for clutter-free wiring Provisions for door lock on convertible mains panel covers Lug electrical connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HOM12L225PRB |
| Application | DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| ARRA Compliant | N |
| Breaker Mounting | Panel |
| Bus Rating | TIN PLATED ALUMINIUM |
| Buy American Compliant | N |
| Cable Size | AWG 4...250 KCMIL COPPER-AWG 4...300 KCMIL ALUMINIUM |
| Catalog Number | HOM12L225PRB |
| Country of Origin | US |
| Cover Type | SURFACE COVER |
| Currency | USD |
| Depth | 4.5276 in |
| Dimensions | 26.04 in H x 14.75 in W x 4.52 in D |
| Enclosure | Baked enamel Gray;Welded galvannealed steel;5R |
| Enclosure Box Size | 5R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2170.00 |
| Gross Volume per Pack Metric | 35559.79 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 27.3600 lb |
| Gross Weight per Pack Metric | 12.41 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 12.7000 in |
| Height [Metric] | 12.7000 cm |
| Housing Material | Steel |
| Item Group | 00145 |
| Length | 71.1200 in |
| Length [Metric] | 71.1200 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253889&lang=en-us |
| Mounting Type | Plug-On |
| Number of Circuits | 12 |
| Number Of Feeders | 12 |
| Number Of Poles | 1 |
| Number Of Spaces | 12 |
| Phase | 1 |
| Returnable | Y |
| Standard | UL E-6294 |
| Sub Brand | HOMELINE |
| Substitute Product Catalog Number | HOM250PSPD |
| Type | 1-Phase Convertible Neutral Rainproof |
| UNSPSC | 39121101 |
| UPC 11 | 78590186110 |
| UPC 12 | 785901861102 |
| Width | 39.3700 in |
| Width [Metric] | 39.3700 cm |
| Wire Size | 6 to 1 AWG, 6 to 2/0 AWG |
| Wiring Configuration | 3-wire |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 225 A |
| Interrupt Rating | 10 kA |
| Voltage Rating | 120/240 VAC |
| DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| MAIN LUGS,TIN PLATED ALUMINIUM BUSBAR |
| Tin plated aluminum bus construction on main lug or main circuit breaker panels |
| Service entrance equipment capable panels |
| Straight-in wiring to help minimize service cable installation |
| Single captive screw interior mounting on indoor panels to ease removal |
| New side hinge doors on outdoor convertible main panels |
| Outdoor panel covers are lockable with padlock |
| Gray baked enamel electrodeposited over cleaned, phosphatized steel |
| Top or bottom feed by rotating convertible mains panels 180 deg |
| Split branch neutral for clutter-free wiring |
| Provisions for door lock on convertible mains panel covers |
| Lug electrical connection |
