Square D™

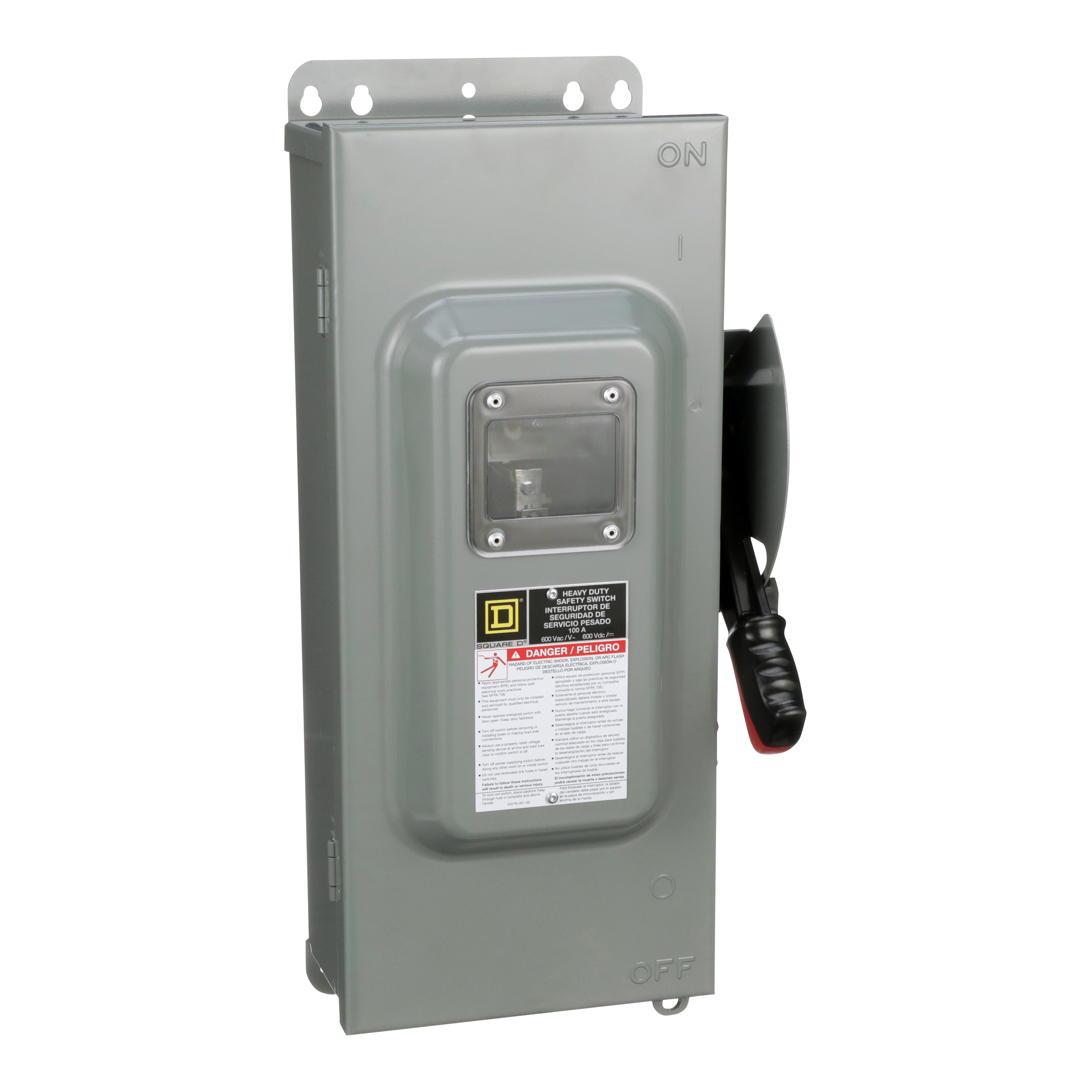

Square D™ HU363AWKVW Non-Fusible Heavy Duty Safety Switch With Viewing Window, 600 VAC, 100 A, 100 hp, 3 Poles, TPST
Custom_Product_Images_Illustration
Square D™
Square D™ HU363AWKVW Non-Fusible Heavy Duty Safety Switch With Viewing Window, 600 VAC, 100 A, 100 hp, 3 Poles, TPST
SKU898816
MFGR #HU363AWKVW
Your Cost: $1,016.23/ea
List: Square D HU363AWKVW SW UNFUSED HD 100A 3P NEMA12/VIEW WINDOW,100A,600V,Galvannealed Steel,Lugs,NEMA 3R/12,Non-Fusible,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Safety Switch,UL Listed,heavy duty,surface
Square D HU363AWKVW SW UNFUSED HD 100A 3P NEMA12/VIEW WINDOW,100A,600V,Galvannealed Steel,Lugs,NEMA 3R/12,Non-Fusible,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Safety Switch,UL Listed,heavy duty,surface
Alternate Catalog Number HU363AWKVW Application Heavy application ARRA Compliant N Buy American Compliant N Catalog Number HU363AWKVW Connection LUGS Country of Origin US Currency USD Enclosure NEMA 3R/12 Enclosure Type NEMA 3R/12 Environmental Conditions RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) EU RoHS Indicator Y Gross Volume Per Pack 1860.73 Gross Volume per Pack Metric 30491.78 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 19.4400 lb Gross Weight per Pack Metric 8.82 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 23.6220 in Height [Metric] 59.6900 cm Item Group 00117 Length 10.6299 in Length [Metric] 27.1780 cm Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365429&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Number of Wires 3 Returnable N Size 10.5 IN,20.5 IN,7 IN in Standard UL listed file E2875 Standards UL Listed Substitute Product Catalog Number EIK1 Terminal Type Lug Type Heavy Duty Non-Fusible Single Throw UNSPSC 39122218 UPC 11 78590120888 UPC 12 785901208884 Warranty Description Contractual Warranty:18 months Width 7.4803 in Width [Metric] 18.7960 cm Wire Type AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Horsepower 100 hp Voltage Rating 600 VAC Heavy application LUGS 12 to 1/0 AWG copper, 14 to 1/0 AWG aluminum wire Without knockouts Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Without knockouts Without electrical interlock Disconnect switch for rain proof, sleet/ice proof and dusttight (indoor/outdoor) environment conditions
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HU363AWKVW |
| Application | Heavy application |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HU363AWKVW |
| Connection | LUGS |
| Country of Origin | US |
| Currency | USD |
| Enclosure | NEMA 3R/12 |
| Enclosure Type | NEMA 3R/12 |
| Environmental Conditions | RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 1860.73 |
| Gross Volume per Pack Metric | 30491.78 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 19.4400 lb |
| Gross Weight per Pack Metric | 8.82 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 23.6220 in |
| Height [Metric] | 59.6900 cm |
| Item Group | 00117 |
| Length | 10.6299 in |
| Length [Metric] | 27.1780 cm |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365429&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Returnable | N |
| Size | 10.5 IN,20.5 IN,7 IN in |
| Standard | UL listed file E2875 |
| Standards | UL Listed |
| Substitute Product Catalog Number | EIK1 |
| Terminal Type | Lug |
| Type | Heavy Duty Non-Fusible Single Throw |
| UNSPSC | 39122218 |
| UPC 11 | 78590120888 |
| UPC 12 | 785901208884 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.4803 in |
| Width [Metric] | 18.7960 cm |
| Wire Type | AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Horsepower | 100 hp |
| Voltage Rating | 600 VAC |
| Heavy application |
| LUGS |
| 12 to 1/0 AWG copper, 14 to 1/0 AWG aluminum wire |
| Without knockouts |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Without knockouts |
| Without electrical interlock |
| Disconnect switch for rain proof, sleet/ice proof and dusttight (indoor/outdoor) environment conditions |
