Square D™

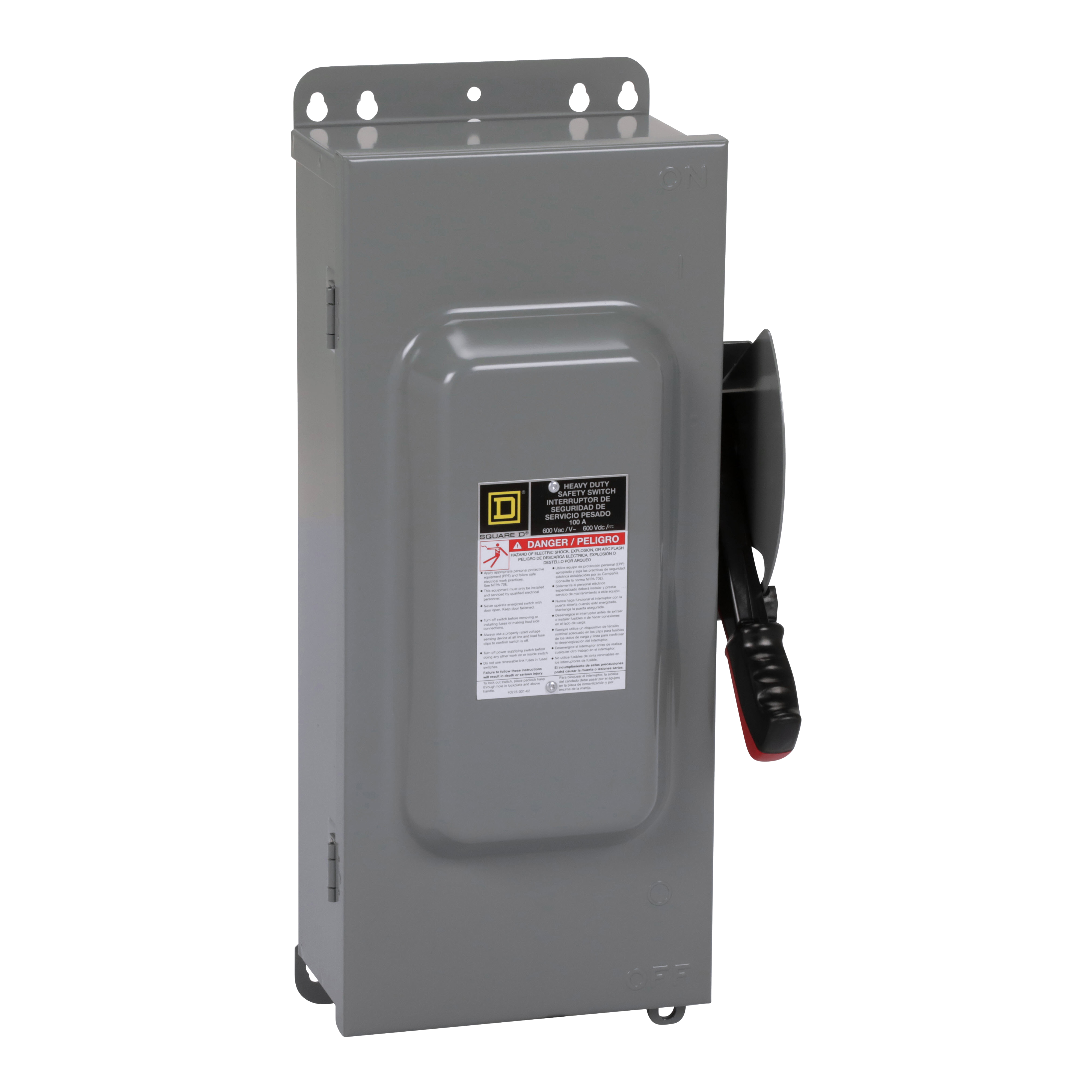

Square D™ HU363AWKEI Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC/VDC, 100 A, 40 hp, 2NO-2NC Contact Form
Custom_Product_Images_Illustration
Square D™
Square D™ HU363AWKEI Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC/VDC, 100 A, 40 hp, 2NO-2NC Contact Form
SKU96376
MFGR #HU363AWKEI
Your Cost: $1,359.93/ea
List: Square D HU363AWKEI SWITCH UNFUSED HD 100A 3P /INTERLOCK,100A,600V,Galvannealed Steel,Lugs,NEMA 3R/12,Non-Fusible,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Safety Switch,UL Listed,heavy duty,surface
Square D HU363AWKEI SWITCH UNFUSED HD 100A 3P /INTERLOCK,100A,600V,Galvannealed Steel,Lugs,NEMA 3R/12,Non-Fusible,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Safety Switch,UL Listed,heavy duty,surface
Actuator Type Handle Alternate Catalog Number HU363AWKEI Application Heavy application ARRA Compliant N Buy American Compliant N Catalog Number HU363AWKEI Color Gray Connection LUGS Contact Configuration 1 NO/1 NC Country of Origin US Currency USD Dimensions 20-1/2 in H x 10-1/2 in W x 7 in D Enclosure NEMA 3R/12 Enclosure Type NEMA 12 Environmental Conditions RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed/Painted Gross Volume Per Pack 1778.28 Gross Volume per Pack Metric 29140.67 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 19.9100 lb Gross Weight per Pack Metric 9.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 7.4803 in Height [Metric] 18.5420 cm Item Group 00113 Length 23.2283 in Length [Metric] 58.9280 cm Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365421&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Phase 1/2/3 Returnable N Series F6 Short Circuit Current Rating 200 kA Size 10.5 IN,20.5 IN,7 IN Standard UL listed file E2875 Substitute Product Catalog Number EIK1 Temperature Rating -22 to 104 °F Terminal Type Lug Type Dust-Tight Driptight Iceproof Non-Fusible Rainproof Sleetproof UNSPSC 39122218 UPC 11 78590107800 UPC 12 785901078005 Warranty Description Contractual Warranty:18 months Width 10.6299 in Width [Metric] 26.6700 cm Wire Type AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Contact Form 2NO/2NC/TPST Horsepower 40 hp, 100 hp Voltage Rating 600 VAC//VDC Heavy application LUGS Visible blades for positive indication that switch is "OFF" Quick make, quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Without knockouts Electrical interlock kit Disconnect switch for rain proof, sleet/ice proof and dusttight (indoor/outdoor) environmental conditions Without knockouts Factory-installed electrical interlock
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | HU363AWKEI |
| Application | Heavy application |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HU363AWKEI |
| Color | Gray |
| Connection | LUGS |
| Contact Configuration | 1 NO/1 NC |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 20-1/2 in H x 10-1/2 in W x 7 in D |
| Enclosure | NEMA 3R/12 |
| Enclosure Type | NEMA 12 |
| Environmental Conditions | RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed/Painted |
| Gross Volume Per Pack | 1778.28 |
| Gross Volume per Pack Metric | 29140.67 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 19.9100 lb |
| Gross Weight per Pack Metric | 9.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 7.4803 in |
| Height [Metric] | 18.5420 cm |
| Item Group | 00113 |
| Length | 23.2283 in |
| Length [Metric] | 58.9280 cm |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365421&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Phase | 1/2/3 |
| Returnable | N |
| Series | F6 |
| Short Circuit Current Rating | 200 kA |
| Size | 10.5 IN,20.5 IN,7 IN |
| Standard | UL listed file E2875 |
| Substitute Product Catalog Number | EIK1 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Dust-Tight Driptight Iceproof Non-Fusible Rainproof Sleetproof |
| UNSPSC | 39122218 |
| UPC 11 | 78590107800 |
| UPC 12 | 785901078005 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 10.6299 in |
| Width [Metric] | 26.6700 cm |
| Wire Type | AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Contact Form | 2NO/2NC/TPST |
| Horsepower | 40 hp, 100 hp |
| Voltage Rating | 600 VAC//VDC |
| Heavy application |
| LUGS |
| Visible blades for positive indication that switch is "OFF" |
| Quick make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Without knockouts |
| Electrical interlock kit |
| Disconnect switch for rain proof, sleet/ice proof and dusttight (indoor/outdoor) environmental conditions |
| Without knockouts |
| Factory-installed electrical interlock |
