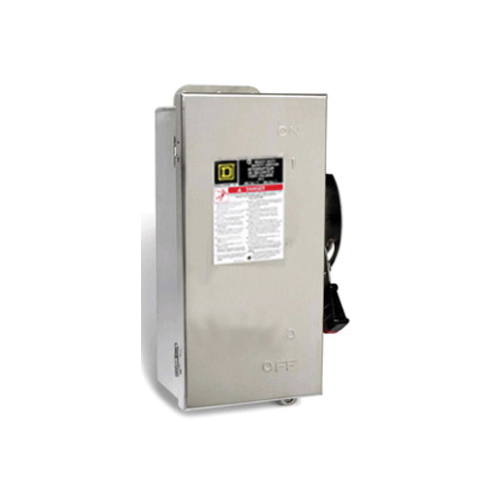

Square D™ HU361DSWA F7 Corrosion Resistant Dusttight Non-Fusible Watertight Heavy Duty Safety Switch With Appleton™ Interlocked Receptacle, 600 VAC/VDC, 30 A, 30 hp at 600 VAC, Single Throw Contact Form, 3 Poles
Custom_Product_Images_Illustration
Square D™ HU361DSWA F7 Corrosion Resistant Dusttight Non-Fusible Watertight Heavy Duty Safety Switch With Appleton™ Interlocked Receptacle, 600 VAC/VDC, 30 A, 30 hp at 600 VAC, Single Throw Contact Form, 3 Poles
SKU661239
MFGR #HU361DSWA
Your Cost: $3,705.97/ea
List: Square D HU361DSWA SW NOT FUSIBLE HD 30A STAINLESS/RECEP,20HP480VAC - 30HP600VAC,3-Pole,304 Stainless Steel,30A,600VAC/250VDC,NEMA 3/3R/4/4X/5/12,Non-Fusible,Receptacle Switch,Receptacle for ACP3034BC Plug Appleton Powertite,UL Listed,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor),surface
Square D HU361DSWA SW NOT FUSIBLE HD 30A STAINLESS/RECEP,20HP480VAC - 30HP600VAC,3-Pole,304 Stainless Steel,30A,600VAC/250VDC,NEMA 3/3R/4/4X/5/12,Non-Fusible,Receptacle Switch,Receptacle for ACP3034BC Plug Appleton Powertite,UL Listed,Water tight, Dust tight and Corrosion Resistant (Indoor/Outdoor),surface
Actuator Type Handle Catalog Number HU361DSWA Country of Origin US Currency USD Dimensions 16.87 in H x 10.81 in W x 5.11 in D Enclosure Type NEMA 4/4X/5 Gross Weight Per Pack 10.0100 lb Gross Weight per Pack Metric 4.54 Gross Weight UOM Metric kg Height 13.0000 in Item Group 00124 Length 42.8000 in Material 304 Stainless Steel Mounting Type Surface Number Of Poles 3 Number of Wires 4 Phase 1/3 Returnable Y Series F7 Short Circuit Current Rating 200 kA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865CUL 98 File No. E2875eccn: EAR99 Temperature Rating -22 to 104 °F Terminal Type Lug Type Corrosion-Resistant Dust-Tight Non-Fusible Watertight UNSPSC 39122218 UPC 11 78590187825 UPC 12 785901878254 Width 27.5000 in Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Contact Form TPST Horsepower 10 hp, 30 hp, 15 hp Voltage Rating 600 VAC//VDC RECEPTACLE Visible blades for positive indication that switch is "OFF" Quick make, quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Receptacle for ACP3034BC Appleton Powertite™ plug
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Handle |
| Catalog Number | HU361DSWA |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 16.87 in H x 10.81 in W x 5.11 in D |
| Enclosure Type | NEMA 4/4X/5 |
| Gross Weight Per Pack | 10.0100 lb |
| Gross Weight per Pack Metric | 4.54 |
| Gross Weight UOM Metric | kg |
| Height | 13.0000 in |
| Item Group | 00124 |
| Length | 42.8000 in |
| Material | 304 Stainless Steel |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Phase | 1/3 |
| Returnable | Y |
| Series | F7 |
| Short Circuit Current Rating | 200 kA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865CUL 98 File No. E2875eccn: EAR99 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Corrosion-Resistant Dust-Tight Non-Fusible Watertight |
| UNSPSC | 39122218 |
| UPC 11 | 78590187825 |
| UPC 12 | 785901878254 |
| Width | 27.5000 in |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Contact Form | TPST |
| Horsepower | 10 hp, 30 hp, 15 hp |
| Voltage Rating | 600 VAC//VDC |
| RECEPTACLE |
| Visible blades for positive indication that switch is "OFF" |
| Quick make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Receptacle for ACP3034BC Appleton Powertite™ plug |
