Square D™

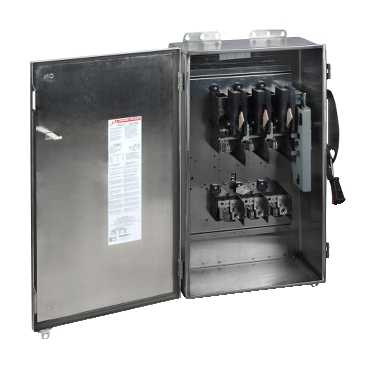

Square D™ H464DS F6 Corrosion Resistant Dusttight Fusible Rainproof Watertight Heavy Duty Safety Switch, 600 VAC/VDC, 200 A, 150 hp at 600 VAC/50 hp at 600 VDC, Single Throw Contact Form, 4 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ H464DS F6 Corrosion Resistant Dusttight Fusible Rainproof Watertight Heavy Duty Safety Switch, 600 VAC/VDC, 200 A, 150 hp at 600 VAC/50 hp at 600 VDC, Single Throw Contact Form, 4 Poles
SKU253720
MFGR #H464DS
Call For Price
List: Square D H464DS SWITCH FUSIBLE HD 600V 200A 4P NEMA44X5,200 A,4P,600 V AC/DC,NEMA 3/3R/4/4X/12,Single Throw Safety Switch,UL listed,heavy duty,heavy duty,lugs,stainless steel 304,surface
Square D H464DS SWITCH FUSIBLE HD 600V 200A 4P NEMA44X5,200 A,4P,600 V AC/DC,NEMA 3/3R/4/4X/12,Single Throw Safety Switch,UL listed,heavy duty,heavy duty,lugs,stainless steel 304,surface
Actuator Type Handle Catalog Number H464DS Country of Origin US Currency USD Dimensions 29 in H x 25.25 in W x 8.88 in D Enclosure Type NEMA 4/4X/5 Gross Weight Per Pack 0.2132 lb Gross Weight per Pack Metric 21.32 Gross Weight UOM Metric kg Height 26.5120 in Item Group 00160 Length 79.3750 in Material 304 Stainless Steel Mounting Type Surface Number Of Poles 4 Number of Wires 4 Phase 1/2/3 Returnable N Series F6 Short Circuit Current Rating 200 kA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865CUL 98 File No. E2875eccn: EAR99 Temperature Rating -22 to 104 °F Terminal Type Lug Type Corrosion-Resistant Dust-Tight Fusible Rainproof Watertight UNSPSC 39122205 UPC 11 78590136957 UPC 12 785901369578 Width 65.4050 in Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Contact Form 4PST Horsepower 50 hp, 60 hp, 150 hp Voltage Rating 600 VAC//VDC HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make, quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Handle |
| Catalog Number | H464DS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 29 in H x 25.25 in W x 8.88 in D |
| Enclosure Type | NEMA 4/4X/5 |
| Gross Weight Per Pack | 0.2132 lb |
| Gross Weight per Pack Metric | 21.32 |
| Gross Weight UOM Metric | kg |
| Height | 26.5120 in |
| Item Group | 00160 |
| Length | 79.3750 in |
| Material | 304 Stainless Steel |
| Mounting Type | Surface |
| Number Of Poles | 4 |
| Number of Wires | 4 |
| Phase | 1/2/3 |
| Returnable | N |
| Series | F6 |
| Short Circuit Current Rating | 200 kA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865CUL 98 File No. E2875eccn: EAR99 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Corrosion-Resistant Dust-Tight Fusible Rainproof Watertight |
| UNSPSC | 39122205 |
| UPC 11 | 78590136957 |
| UPC 12 | 785901369578 |
| Width | 65.4050 in |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Contact Form | 4PST |
| Horsepower | 50 hp, 60 hp, 150 hp |
| Voltage Rating | 600 VAC//VDC |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
