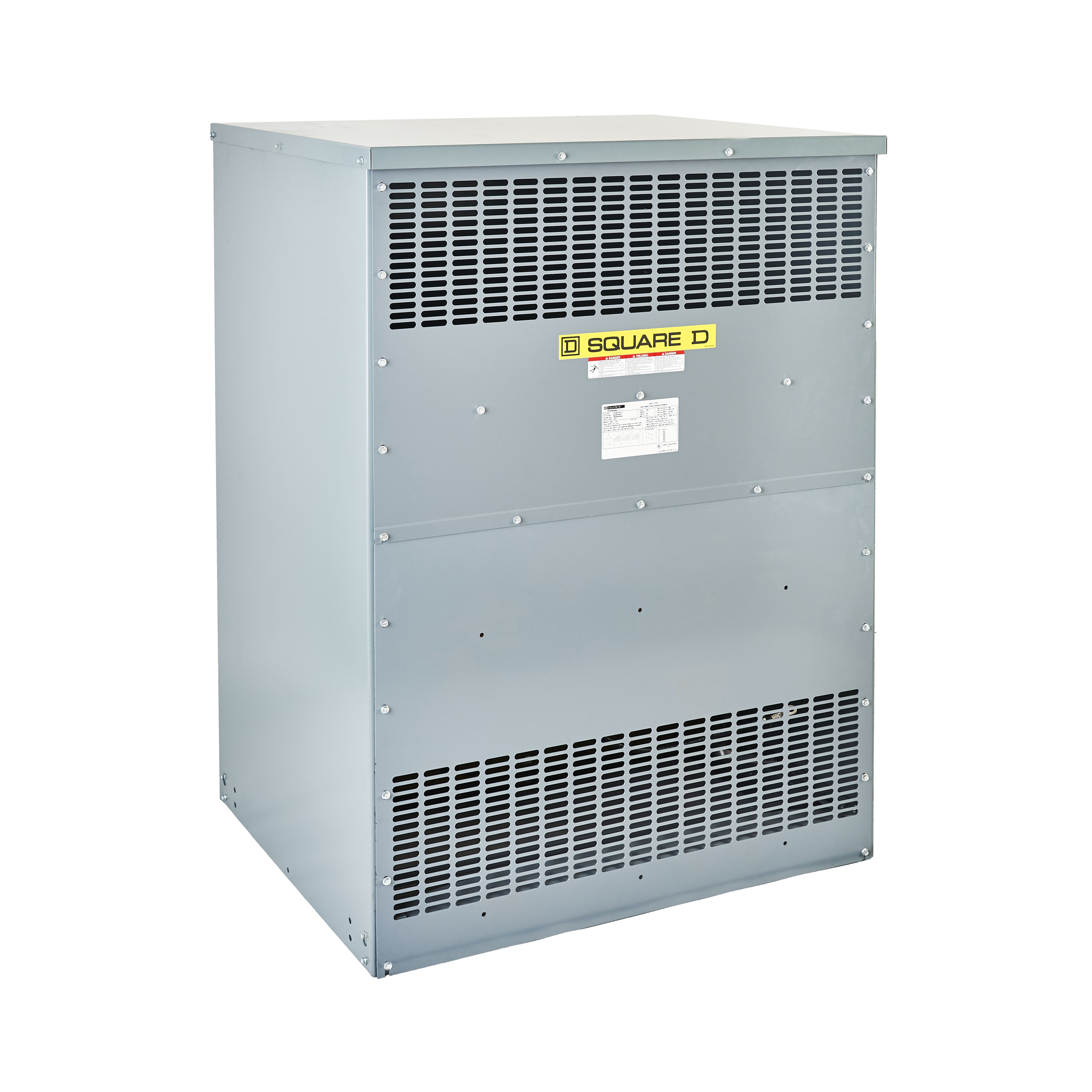

Square D™ EX500T68H Energy Efficient Dry-Type Transformer, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 500 kVA Power Rating, 60 Hz, 3 Phase
Custom_Product_Images_Illustration
Square D™
Square D™ EX500T68H Energy Efficient Dry-Type Transformer, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 500 kVA Power Rating, 60 Hz, 3 Phase
SKU1306549
MFGR #EX500T68H
Call For Price
List: Square D™ Transformer, Energy Efficient Dry-Type, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 500 kVA, 60 Hz, 3, 28.2 kA Maximum, 2/2 Taps, 4/6/8 Hole NEMA Pad, Floor Mount, 220 deg C, 150 deg C, 99.14 % Efficiency, 70.98 in H x 48.27 in W x 37.91 in D
Square D™ Transformer, Energy Efficient Dry-Type, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 500 kVA, 60 Hz, 3, 28.2 kA Maximum, 2/2 Taps, 4/6/8 Hole NEMA Pad, Floor Mount, 220 deg C, 150 deg C, 99.14 % Efficiency, 70.98 in H x 48.27 in W x 37.91 in D
Alternate Catalog Number EX500T68H Application For low voltage electrical distribution applications ARRA Compliant N Buy American Compliant N Catalog Number EX500T68H Cooling Natural Convection Country of Origin MX Currency USD Enclosure UL type 1;UL type 2, with 7400DS30J;UL type 3R, with 7400WS30J;30 EU RoHS Indicator Y Gross Volume Per Pack 222712.00 Gross Volume per Pack Metric 3649581.54 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 14.6057 lb Gross Weight per Pack Metric 1460.57 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Hazard Class N Height 208.2800 in Height [Metric] 208.2800 cm Insulation Class 150 °C ; 220 °C insulated Item Group 16252 Length 142.2400 in Length [Metric] 142.2400 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=439593621&lang=en-us Mounting floor;floor, with 7400FMB;floor, with 7400FMB Returnable Y Standard CSA C22.2 No 47;NEMA ST-20;UL 1561 Type Transformer UNSPSC 39121001 UPC 11 78590172795 UPC 12 785901727958 Width 123.1900 in Width [Metric] 123.1900 cm Winding aluminium Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Primary Voltage 480 V delta Secondary Voltage 208Y/120 V For low voltage electrical distribution applications (2) 2.5% FCAN, (2) 2.5% FCBN tap-offs
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EX500T68H |
| Application | For low voltage electrical distribution applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EX500T68H |
| Cooling | Natural Convection |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | UL type 1;UL type 2, with 7400DS30J;UL type 3R, with 7400WS30J;30 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 222712.00 |
| Gross Volume per Pack Metric | 3649581.54 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 14.6057 lb |
| Gross Weight per Pack Metric | 1460.57 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Hazard Class | N |
| Height | 208.2800 in |
| Height [Metric] | 208.2800 cm |
| Insulation Class | 150 °C ; 220 °C insulated |
| Item Group | 16252 |
| Length | 142.2400 in |
| Length [Metric] | 142.2400 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=439593621&lang=en-us |
| Mounting | floor;floor, with 7400FMB;floor, with 7400FMB |
| Returnable | Y |
| Standard | CSA C22.2 No 47;NEMA ST-20;UL 1561 |
| Type | Transformer |
| UNSPSC | 39121001 |
| UPC 11 | 78590172795 |
| UPC 12 | 785901727958 |
| Width | 123.1900 in |
| Width [Metric] | 123.1900 cm |
| Winding | aluminium |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Primary Voltage | 480 V delta |
| Secondary Voltage | 208Y/120 V |
| For low voltage electrical distribution applications |
| (2) 2.5% FCAN, (2) 2.5% FCBN tap-offs |
