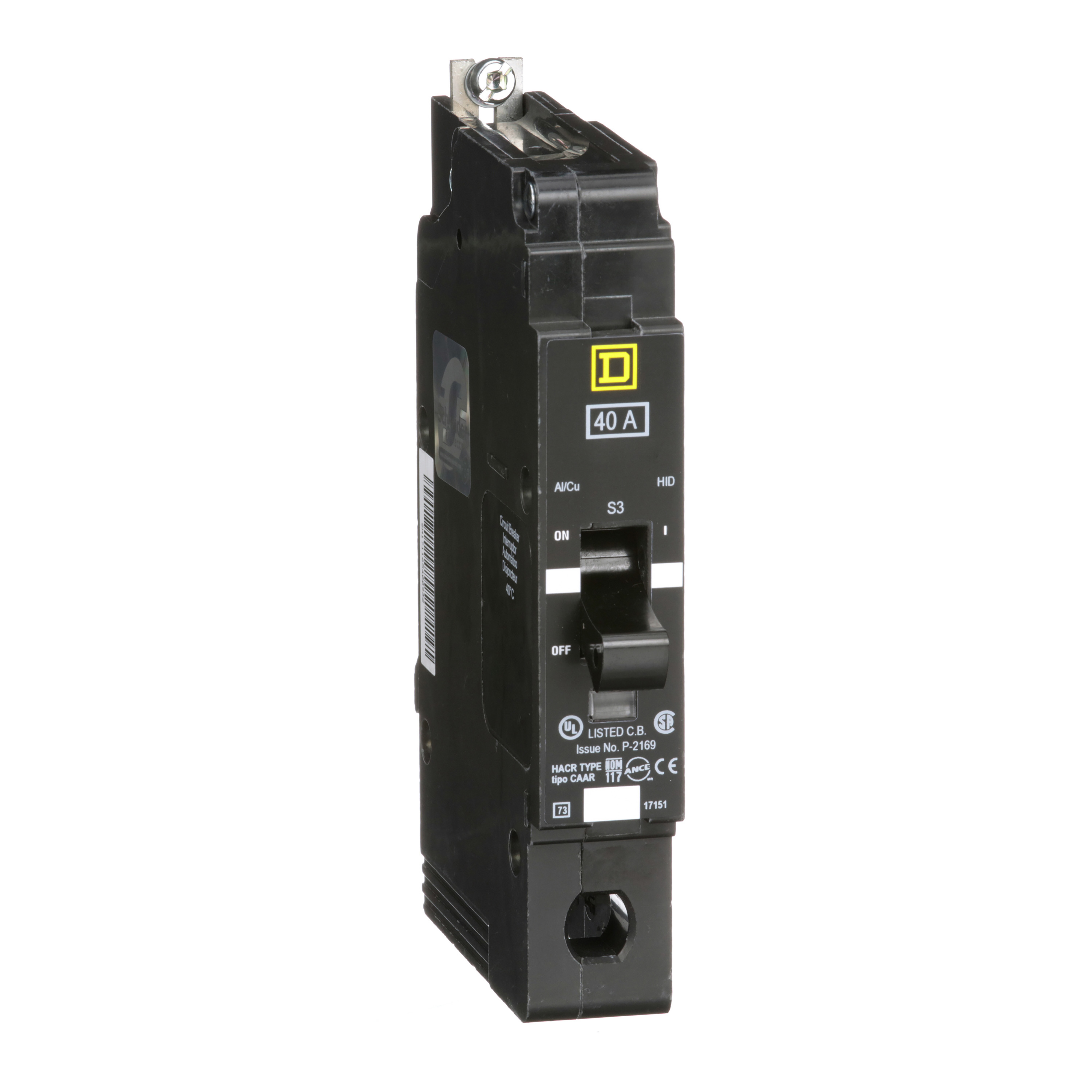

Square D™ EGB14040 Type EGB Circuit Breaker, 277 VAC, 40 A, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™
Square D™ EGB14040 Type EGB Circuit Breaker, 277 VAC, 40 A, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt, 1 Pole
SKU262744
MFGR #EGB14040
$/ea
Square D EGB14040 MINIATURE CIRCUIT BREAKER 277V 40A,1-Pole,277 V AC,277 V AC,4.05 in,40 A,Bolt-On,E-Frame,EGB,HACR rated,Hold 630A - Trip 1800A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),UL Listed - CSA Certified
Square D EGB14040 MINIATURE CIRCUIT BREAKER 277V 40A,1-Pole,277 V AC,277 V AC,4.05 in,40 A,Bolt-On,E-Frame,EGB,HACR rated,Hold 630A - Trip 1800A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),UL Listed - CSA Certified
Alternate Catalog Number EGB14040 Application HID rated;HACR rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EGB14040 Connection AWG 12...AWG 2/0 ALUMINIUM-AWG 14...AWG 2/0 COPPER,LUGS ALUMINIUM Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 5.66 in H x 0.98 in W x 4.05 in D EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 109.08 Gross Volume per Pack Metric 1787.49 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.8970 lb Gross Weight per Pack Metric 589.70 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 4.6000 in Height [Metric] 4.6000 cm Item Group 00936 Length 26.4000 in Length [Metric] 26.4000 cm Material Thermoset Composite Resin Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254340&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard cULus Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENHACR RatedNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand EGB Substitute Product Catalog Number HPAFD Temperature Rating 104 °F Trip Range 630 to 1800 A Type Type EGB UNSPSC 39121603 UPC 11 78590131110 UPC 12 785901311102 Warranty Description Contractual Warranty:18 months Width 15.5000 in Width [Metric] 15.5000 cm Wire Size 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 40 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480Y/277 VAC Trip Type Thermal Magnetic Voltage Rating 277 VAC HID rated;HACR rated; NF panelboard TRIP INDICATOR High intensity discharge rated 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EGB14040 |
| Application | HID rated;HACR rated; NF panelboard |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EGB14040 |
| Connection | AWG 12...AWG 2/0 ALUMINIUM-AWG 14...AWG 2/0 COPPER,LUGS ALUMINIUM |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 5.66 in H x 0.98 in W x 4.05 in D |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 109.08 |
| Gross Volume per Pack Metric | 1787.49 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.8970 lb |
| Gross Weight per Pack Metric | 589.70 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 4.6000 in |
| Height [Metric] | 4.6000 cm |
| Item Group | 00936 |
| Length | 26.4000 in |
| Length [Metric] | 26.4000 cm |
| Material | Thermoset Composite Resin |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254340&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | cULus |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENHACR RatedNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | EGB |
| Substitute Product Catalog Number | HPAFD |
| Temperature Rating | 104 °F |
| Trip Range | 630 to 1800 A |
| Type | Type EGB |
| UNSPSC | 39121603 |
| UPC 11 | 78590131110 |
| UPC 12 | 785901311102 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.5000 in |
| Width [Metric] | 15.5000 cm |
| Wire Size | 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 40 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480Y/277 VAC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277 VAC |
| HID rated;HACR rated; NF panelboard |
| TRIP INDICATOR |
| High intensity discharge rated |
| 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating |
