Steiner serves territories in Northern Illinois, Northwest Indiana and Southern Wisconsin. Please for assistance if outside our sales territory.
Square D™

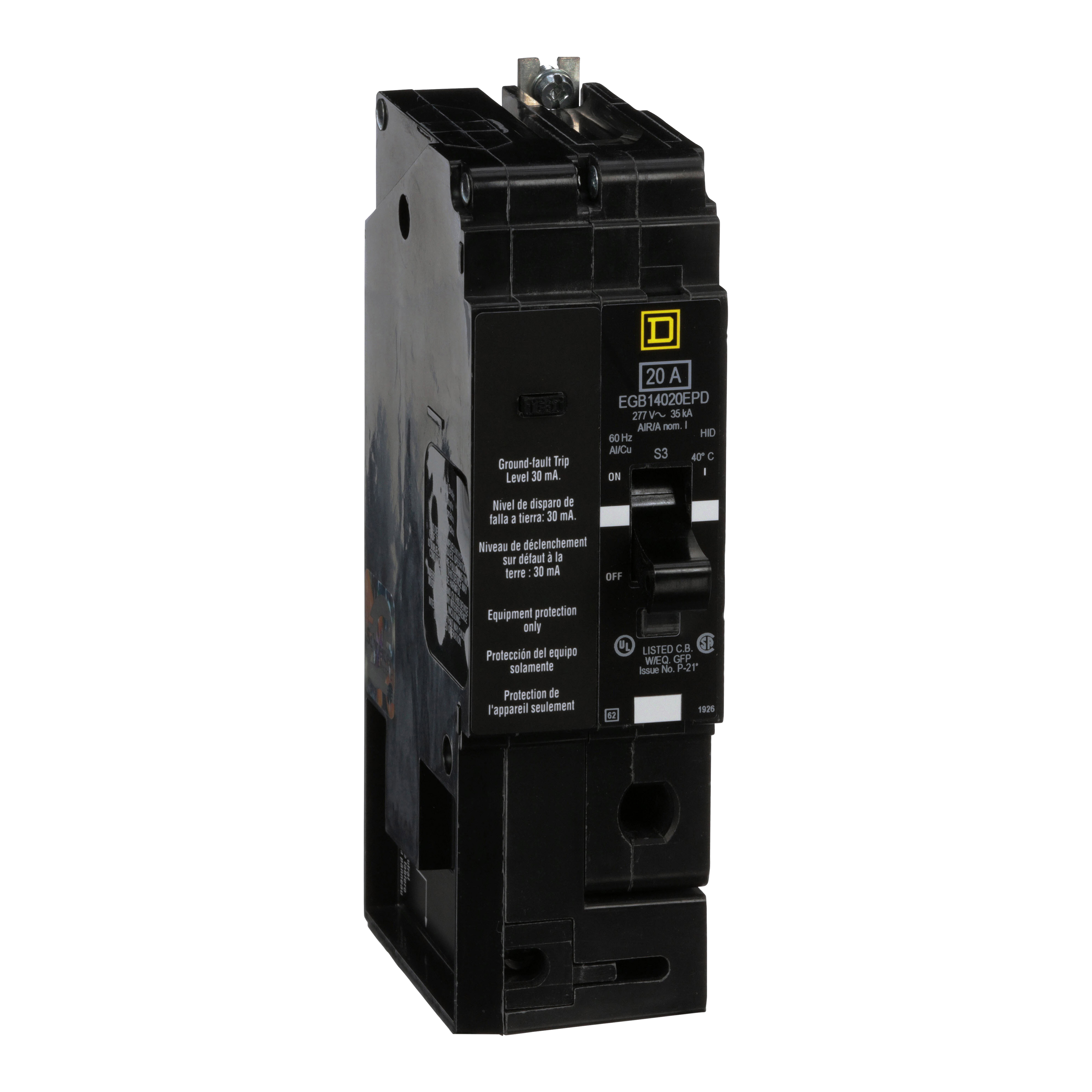

Square D™ EGB14020EPD Type EGB Circuit Breaker, 277 VAC, 20 A, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™
Square D™ EGB14020EPD Type EGB Circuit Breaker, 277 VAC, 20 A, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt, 1 Pole
SKU496703
MFGR #EGB14020EPD
$/ea
Square D EGB14020EPD MINIATURE CIRCUIT BREAKER 277V 20A,1-Pole,20A,35kA,Bolt-On,E-Frame,Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EGB14020EPD MINIATURE CIRCUIT BREAKER 277V 20A,1-Pole,20A,35kA,Bolt-On,E-Frame,Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EGB14020EPD Application Switching Duty rated;HACR rated;HID rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EGB14020EPD Connection AWG 14...AWG 6 COPPER-AWG 12...AWG 4 ALUMINIUM,LUGS ALUMINIUM Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 5.66 in H x 0.98 in W x 4.05 in D EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 100.38 Gross Volume per Pack Metric 1644.84 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 9.3113 lb Gross Weight per Pack Metric 957.08 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 6.3500 in Height [Metric] 6.3500 cm Item Group 00946 Length 18.5420 in Length [Metric] 18.5420 cm Material Thermoset Composite Resin Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254042&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 pH Returnable Y Standard CULUS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENHACR RatedNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand EGB Temperature Rating 104 °F Trip Range 270 to 875 A Type Type EGB UNSPSC 39121603 UPC 11 78590147045 UPC 12 785901470458 Warranty Description Contractual Warranty:18 months Width 13.9700 in Width [Metric] 13.9700 cm Wire Size 12 to 6 AWG Al/14 to 6 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480Y/277 VAC Trip Type Thermal Magnetic Voltage Rating 277 VAC Switching Duty rated;HACR rated;HID rated; NF panelboard TRIP INDICATOR High intensity discharge and switching duty rated 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EGB14020EPD |
| Application | Switching Duty rated;HACR rated;HID rated; NF panelboard |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EGB14020EPD |
| Connection | AWG 14...AWG 6 COPPER-AWG 12...AWG 4 ALUMINIUM,LUGS ALUMINIUM |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 5.66 in H x 0.98 in W x 4.05 in D |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 100.38 |
| Gross Volume per Pack Metric | 1644.84 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 9.3113 lb |
| Gross Weight per Pack Metric | 957.08 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 6.3500 in |
| Height [Metric] | 6.3500 cm |
| Item Group | 00946 |
| Length | 18.5420 in |
| Length [Metric] | 18.5420 cm |
| Material | Thermoset Composite Resin |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254042&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | CULUS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENHACR RatedNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | EGB |
| Temperature Rating | 104 °F |
| Trip Range | 270 to 875 A |
| Type | Type EGB |
| UNSPSC | 39121603 |
| UPC 11 | 78590147045 |
| UPC 12 | 785901470458 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 13.9700 in |
| Width [Metric] | 13.9700 cm |
| Wire Size | 12 to 6 AWG Al/14 to 6 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480Y/277 VAC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277 VAC |
| Switching Duty rated;HACR rated;HID rated; NF panelboard |
| TRIP INDICATOR |
| High intensity discharge and switching duty rated |
| 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating |
