Square D™

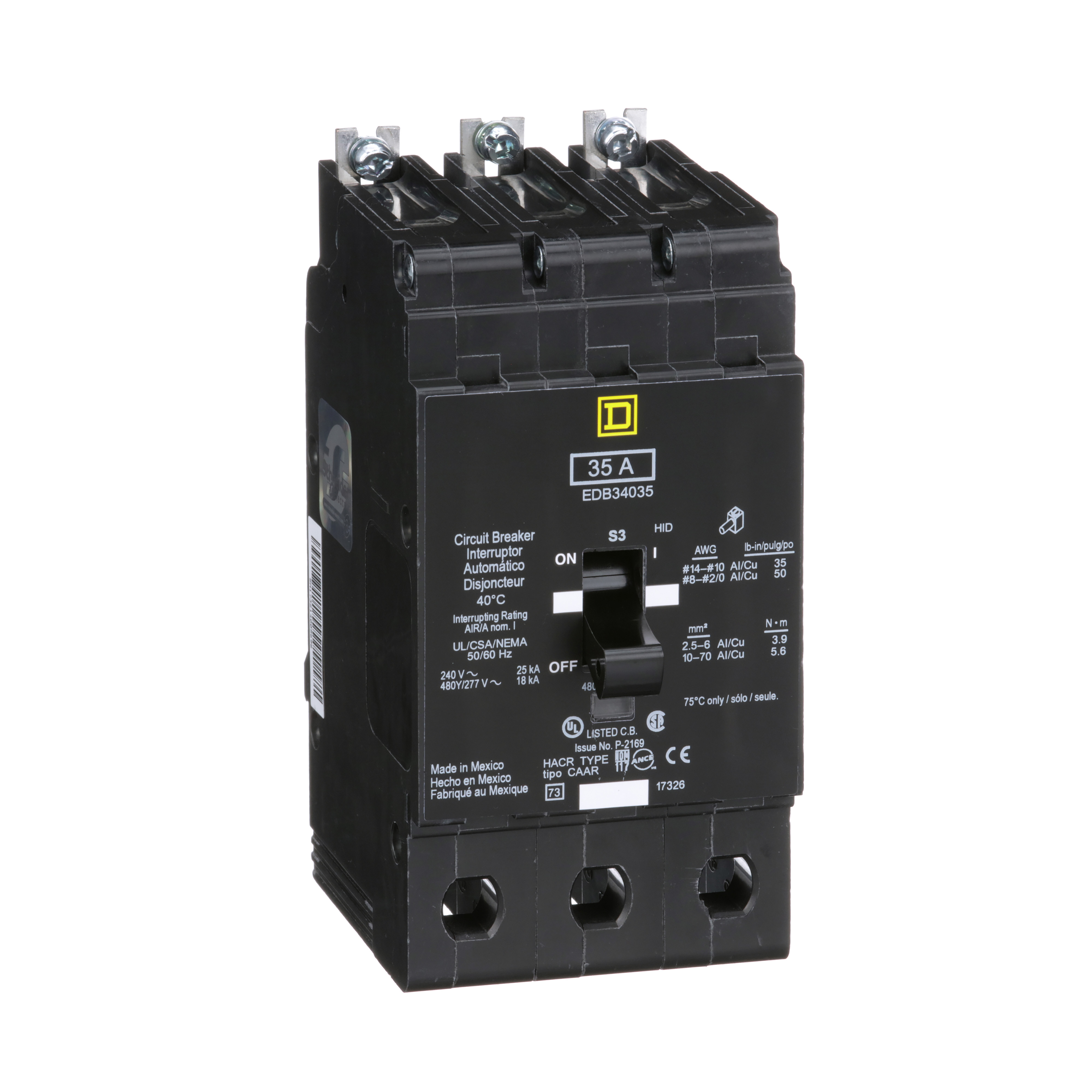

Square D™ EDB34035 Miniature Circuit Breaker, 277/480 VAC, 35 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ EDB34035 Miniature Circuit Breaker, 277/480 VAC, 35 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU34931
MFGR #EDB34035
Call For Price
List: Square D EDB34035 MINIATURE CIRCUIT BREAKER 480Y/277V 35A,18kA,35A,Bolt-On,E frame,E-Frame,Hold 630A - Trip 1800A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EDB34035 MINIATURE CIRCUIT BREAKER 480Y/277V 35A,18kA,35A,Bolt-On,E frame,E-Frame,Hold 630A - Trip 1800A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EDB34035 Application NF panelboard;HID rated;HACR rated ARRA Compliant N Buy American Compliant N Catalog Number EDB34035 Connection LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 4.05 in L x 2.94 in W x 5.66 in H EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 294.62 Gross Volume per Pack Metric 4828.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0159 lb Gross Weight per Pack Metric 1.61 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 12.1920 in Height [Metric] 11.9000 cm Item Group 00931 Length 25.1460 in Length [Metric] 25.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396981&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov Sub Brand E FRAME Substitute Product Catalog Number HPAFD Temperature Rating 104 °F Trip Range 630 to 1800 A Type Molded Case Standard UNSPSC 39121603 UPC 11 78590187527 UPC 12 785901875277 Warranty Description Contractual Warranty:18 months Width 15.7480 in Width [Metric] 15.7000 cm Wire Size 12 to 2 AWG, 14 to 2/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 35 A Interrupt Rating 18 kA Trip Type Thermal Magnetic Voltage Rating 277/480Y VAC NF panelboard;HID rated;HACR rated BOLT-ON Visi-Trip® trip indicator 630 A hold, 1800 A trip current For merchandised NF panelboards 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper wire For merchandised NF panelboards Optional factory-installed electrical accessories include; 120 Vac shunt trip, 1A/1B auxiliary switch and normally open alarm switch Optional handle padlock attachment Optional copper and compression lugs
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EDB34035 |
| Application | NF panelboard;HID rated;HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EDB34035 |
| Connection | LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 4.05 in L x 2.94 in W x 5.66 in H |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 294.62 |
| Gross Volume per Pack Metric | 4828.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0159 lb |
| Gross Weight per Pack Metric | 1.61 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 12.1920 in |
| Height [Metric] | 11.9000 cm |
| Item Group | 00931 |
| Length | 25.1460 in |
| Length [Metric] | 25.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396981&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Sub Brand | E FRAME |
| Substitute Product Catalog Number | HPAFD |
| Temperature Rating | 104 °F |
| Trip Range | 630 to 1800 A |
| Type | Molded Case Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590187527 |
| UPC 12 | 785901875277 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.7480 in |
| Width [Metric] | 15.7000 cm |
| Wire Size | 12 to 2 AWG, 14 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 35 A |
| Interrupt Rating | 18 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277/480Y VAC |
| NF panelboard;HID rated;HACR rated |
| BOLT-ON |
| Visi-Trip® trip indicator |
| 630 A hold, 1800 A trip current |
| For merchandised NF panelboards |
| 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper wire |
| For merchandised NF panelboards |
| Optional factory-installed electrical accessories include; 120 Vac shunt trip, 1A/1B auxiliary switch and normally open alarm switch |
| Optional handle padlock attachment |
| Optional copper and compression lugs |
