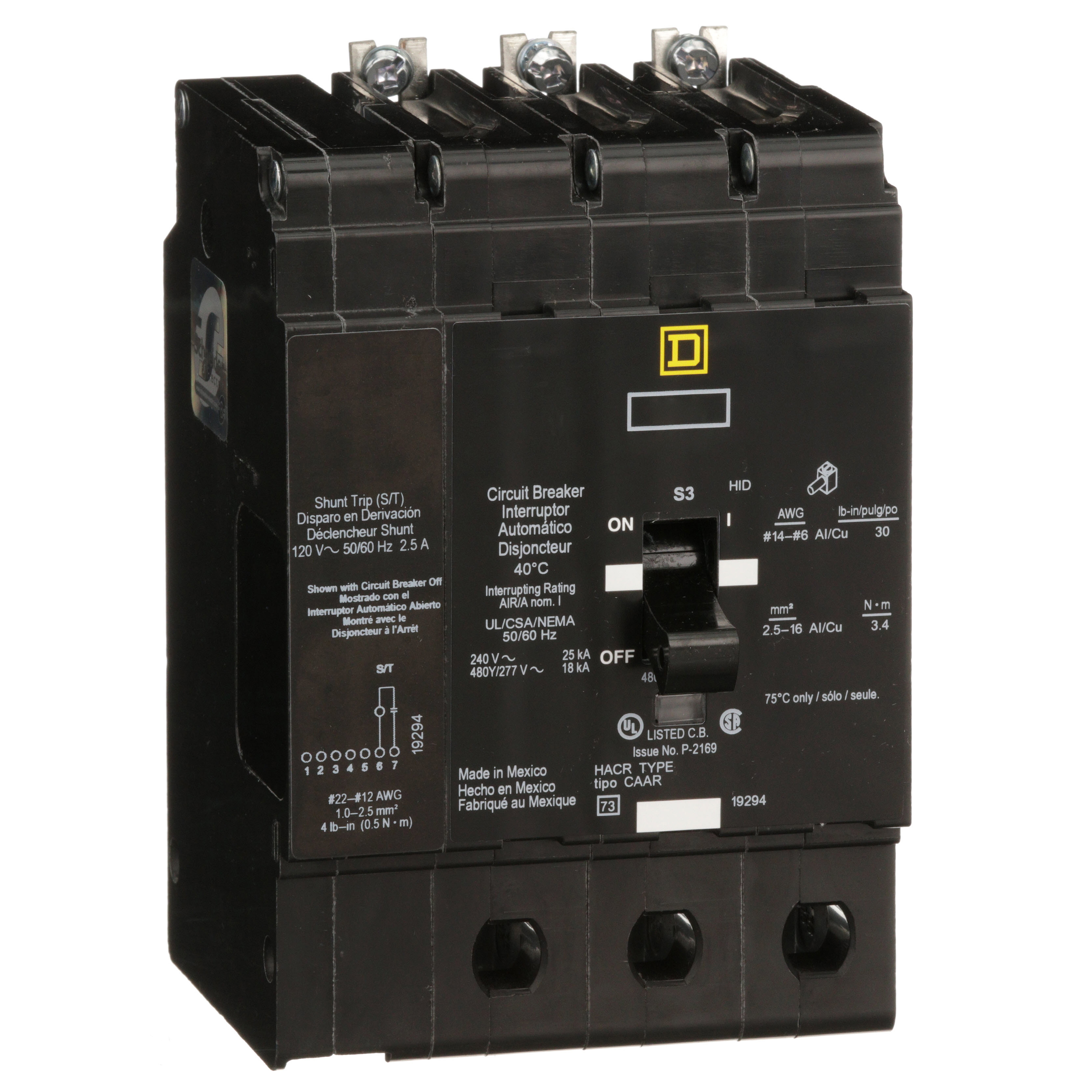

Square D™ EDB34015SA Type EDB Circuit Breaker, 480Y/277 VAC, 15 A, 25 kA at 240 VAC/18 kA at 480Y/277 VAC Interrupt
Custom_Product_Images_Illustration
Square D™ EDB34015SA Type EDB Circuit Breaker, 480Y/277 VAC, 15 A, 25 kA at 240 VAC/18 kA at 480Y/277 VAC Interrupt
SKU252523
MFGR #EDB34015SA
Your Cost: $1,569.87/ea
Square D EDB34015SA MINIATURE CIRCUIT BREAKER 480Y/277V 15A,15A,18kA,3-Pole,Bolt-On,E-Frame,Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EDB34015SA MINIATURE CIRCUIT BREAKER 480Y/277V 15A,15A,18kA,3-Pole,Bolt-On,E-Frame,Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EDB34015SA Application HACR rated;HID rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EDB34015SA Connection AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS ALUMINIUM Connection Type Lug Country of Origin US Currency USD Depth 4.05 in Dimensions 4.05 in L x 2.94 in W x 5.8 in H EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Weight Per Pack 4.2100 lb Gross Weight per Pack Metric 1.91 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 16.0020 in Height [Metric] 16.0020 cm Item Group 00931 Length 25.1460 in Length [Metric] 25.1460 cm Material Thermoset Composite Resin Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396929&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable N Standard cULus Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENHACR RatedNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand EDB Temperature Rating 104 °F Trip Range 270 to 875 A Type Type EDB Ground Fault UNSPSC 39121603 UPC 11 78590115955 UPC 12 785901159551 Warranty Description Contractual Warranty:18 months Width 15.7480 in Width [Metric] 15.7480 cm Wire Size 12 to 6 AWG Al, 14 to 6 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 18/25 kA Trip Type Shunt/Thermal Magnetic Voltage Rating 277/480Y VAC HACR rated;HID rated; NF panelboard TRIP INDICATOR High intensity discharge rated 25 kA at 240 VAC/18 kA at 480Y/277 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EDB34015SA |
| Application | HACR rated;HID rated; NF panelboard |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EDB34015SA |
| Connection | AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS ALUMINIUM |
| Connection Type | Lug |
| Country of Origin | US |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 4.05 in L x 2.94 in W x 5.8 in H |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 4.2100 lb |
| Gross Weight per Pack Metric | 1.91 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 16.0020 in |
| Height [Metric] | 16.0020 cm |
| Item Group | 00931 |
| Length | 25.1460 in |
| Length [Metric] | 25.1460 cm |
| Material | Thermoset Composite Resin |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396929&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | N |
| Standard | cULus |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENHACR RatedNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | EDB |
| Temperature Rating | 104 °F |
| Trip Range | 270 to 875 A |
| Type | Type EDB Ground Fault |
| UNSPSC | 39121603 |
| UPC 11 | 78590115955 |
| UPC 12 | 785901159551 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.7480 in |
| Width [Metric] | 15.7480 cm |
| Wire Size | 12 to 6 AWG Al, 14 to 6 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 18/25 kA |
| Trip Type | Shunt/Thermal Magnetic |
| Voltage Rating | 277/480Y VAC |
| HACR rated;HID rated; NF panelboard |
| TRIP INDICATOR |
| High intensity discharge rated |
| 25 kA at 240 VAC/18 kA at 480Y/277 VAC |
