Square D™

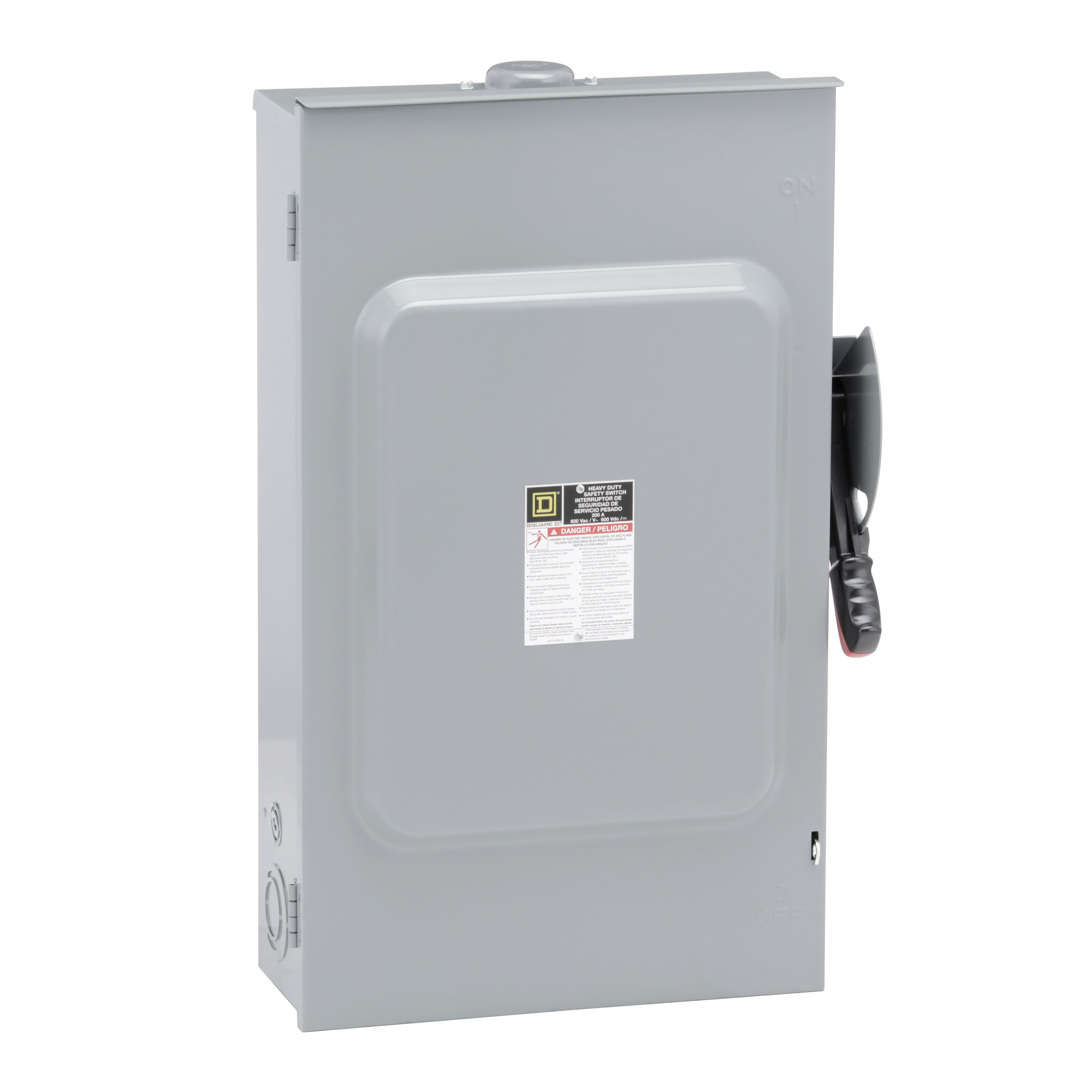

Square D™ CH364NRB Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 200 A, 50/60 hp, 3 Poles, TPST
Custom_Product_Images_Illustration
Square D™
Square D™ CH364NRB Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 200 A, 50/60 hp, 3 Poles, TPST
SKU34082
MFGR #H364NRB
Your Cost: $1,112.50/ea
List: Square D H364NRB SWITCH FUSIBLE HD 600V 200A 3P NEUTRAL,200 A,600 V AC/DC,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
Square D H364NRB SWITCH FUSIBLE HD 600V 200A 3P NEUTRAL,200 A,600 V AC/DC,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
Action SINGLE THROW Actuator Type Handle Alternate Catalog Number H364NRB Application Heavy Duty ARRA Compliant N Buy American Compliant N Catalog Number H364NRB Connection AWG 6...250 KCMIL COPPER OR ALUMINIUM,LUGS Country of Origin US Currency USD Dimensions 29.25 in H x 18.63 in W x 8.5 in D Enclosure NEMA 3R GALVANNEALED STEEL Enclosure Type NEMA 3R Environmental Conditions RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed Gross Volume Per Pack 4949.87 Gross Volume per Pack Metric 81113.54 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 46.2500 lb Gross Weight per Pack Metric 20.98 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 8.2677 in Height [Metric] 21.0820 cm Insulation Type Phenolic Item Group 00009 Length 30.7087 in Length [Metric] 78.4860 cm Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364683&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Phase 3 Returnable N Short Circuit Current Rating 200 kA Size 18.63 IN,29.25 IN,8.5 IN Standard UL listed file E2875 Sub Brand HEAVY DUTY Substitute Product Catalog Number B150 Terminal Type Lug Type Fusible UNSPSC 39122205 UPC 11 78590161631 UPC 12 785901616313 Upsell Product Catalog Number B125 Warranty Description Contractual Warranty:18 months Width 19.2913 in Width [Metric] 49.0220 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Contact Form TPST Horsepower 50 hp, 60 hp Voltage Rating 600 VAC//VDC HEAVY DUTY HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make/quick break operating mechanism Lugs suitable for aluminum or copper conductors Multiple padlock provisions in the "OFF" position Spring reinforced plated copper fuse clips Red and black handles indicate switch position Dual cover interlock Rainproof and sleet/ice proof With bolt-on hub provision
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SINGLE THROW |
| Actuator Type | Handle |
| Alternate Catalog Number | H364NRB |
| Application | Heavy Duty |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | H364NRB |
| Connection | AWG 6...250 KCMIL COPPER OR ALUMINIUM,LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 29.25 in H x 18.63 in W x 8.5 in D |
| Enclosure | NEMA 3R GALVANNEALED STEEL |
| Enclosure Type | NEMA 3R |
| Environmental Conditions | RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed |
| Gross Volume Per Pack | 4949.87 |
| Gross Volume per Pack Metric | 81113.54 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 46.2500 lb |
| Gross Weight per Pack Metric | 20.98 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 8.2677 in |
| Height [Metric] | 21.0820 cm |
| Insulation Type | Phenolic |
| Item Group | 00009 |
| Length | 30.7087 in |
| Length [Metric] | 78.4860 cm |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364683&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | N |
| Short Circuit Current Rating | 200 kA |
| Size | 18.63 IN,29.25 IN,8.5 IN |
| Standard | UL listed file E2875 |
| Sub Brand | HEAVY DUTY |
| Substitute Product Catalog Number | B150 |
| Terminal Type | Lug |
| Type | Fusible |
| UNSPSC | 39122205 |
| UPC 11 | 78590161631 |
| UPC 12 | 785901616313 |
| Upsell Product Catalog Number | B125 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.2913 in |
| Width [Metric] | 49.0220 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Contact Form | TPST |
| Horsepower | 50 hp, 60 hp |
| Voltage Rating | 600 VAC//VDC |
| HEAVY DUTY |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Lugs suitable for aluminum or copper conductors |
| Multiple padlock provisions in the "OFF" position |
| Spring reinforced plated copper fuse clips |
| Red and black handles indicate switch position |
| Dual cover interlock |
| Rainproof and sleet/ice proof |
| With bolt-on hub provision |
