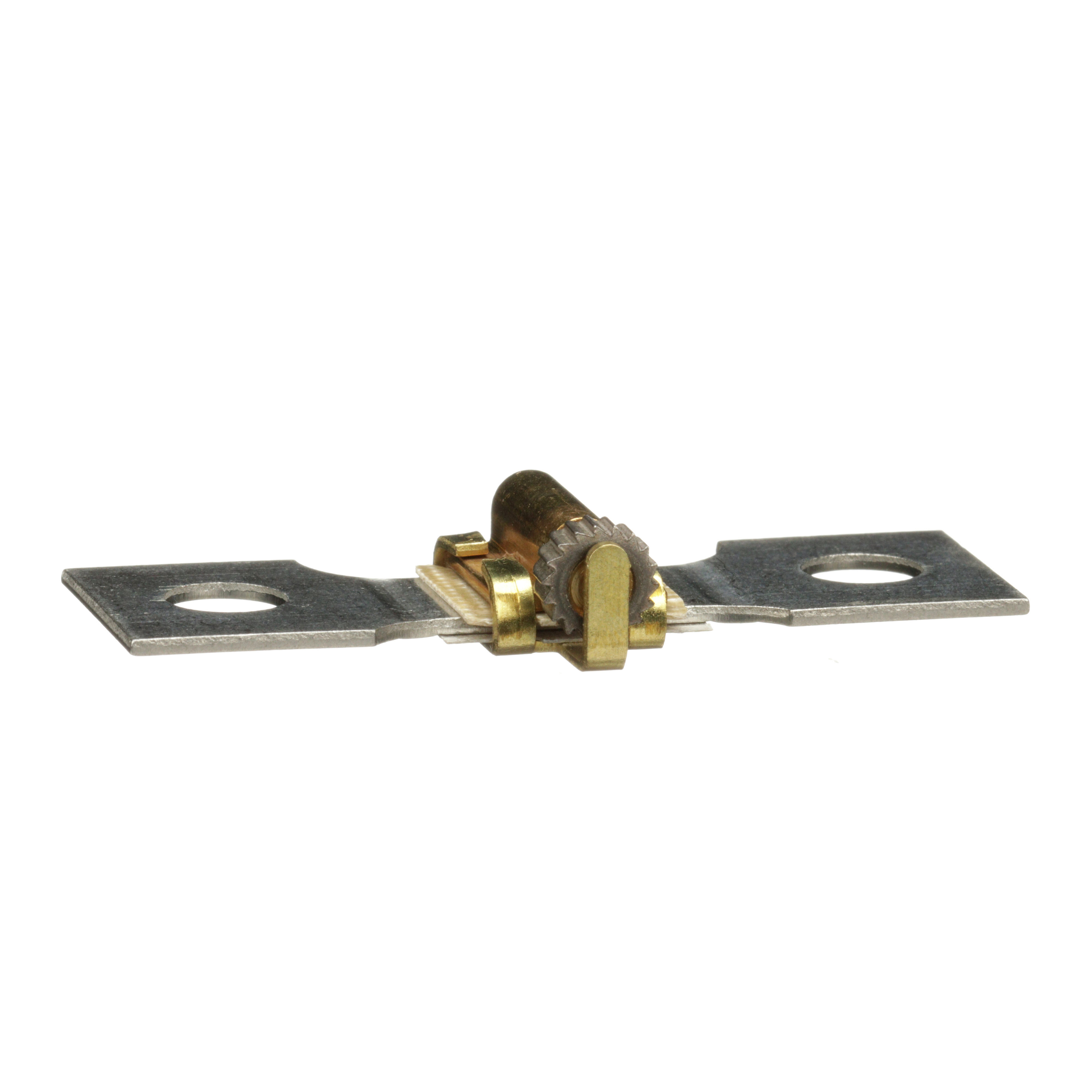

Square D™ CC94.0 Melting Alloy Thermal Unit
Starters
34009
MFG #: CC94.0
Schneider Electric
34.10000
/ ea
Square D CC94.0 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 104,Thermal - Melting Alloy Thermal Unit
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8104877360Den&ext=webp(360 Degree View URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Compliance Cert URL - Square_D_CC94_0_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_D2R593CZX4GMQ8IL.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_CC94_0_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_N753X4GWKH9UYDZI.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_Q0DWO2F4U7NJ3KYA.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_TODBC81G2XKM7A06.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/W3jC7ckgcBo(Video)
- Applications
- Features
| FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS |
| NEMA OVERLOAD RELAYS |
| Melting Alloy Thermal Units |
| One-piece thermal unit construction |
| Provides overload protection for most motors |
| Calibration is set for a range of motor full load currents |
| Repeated tripping does not affect the original calibration |
| Cannot be reset until cooled |
| Melting alloy thermal units are available in three designs: standard trip (Class 20) slow trip (Class 30) quick trip (Class 10) |
