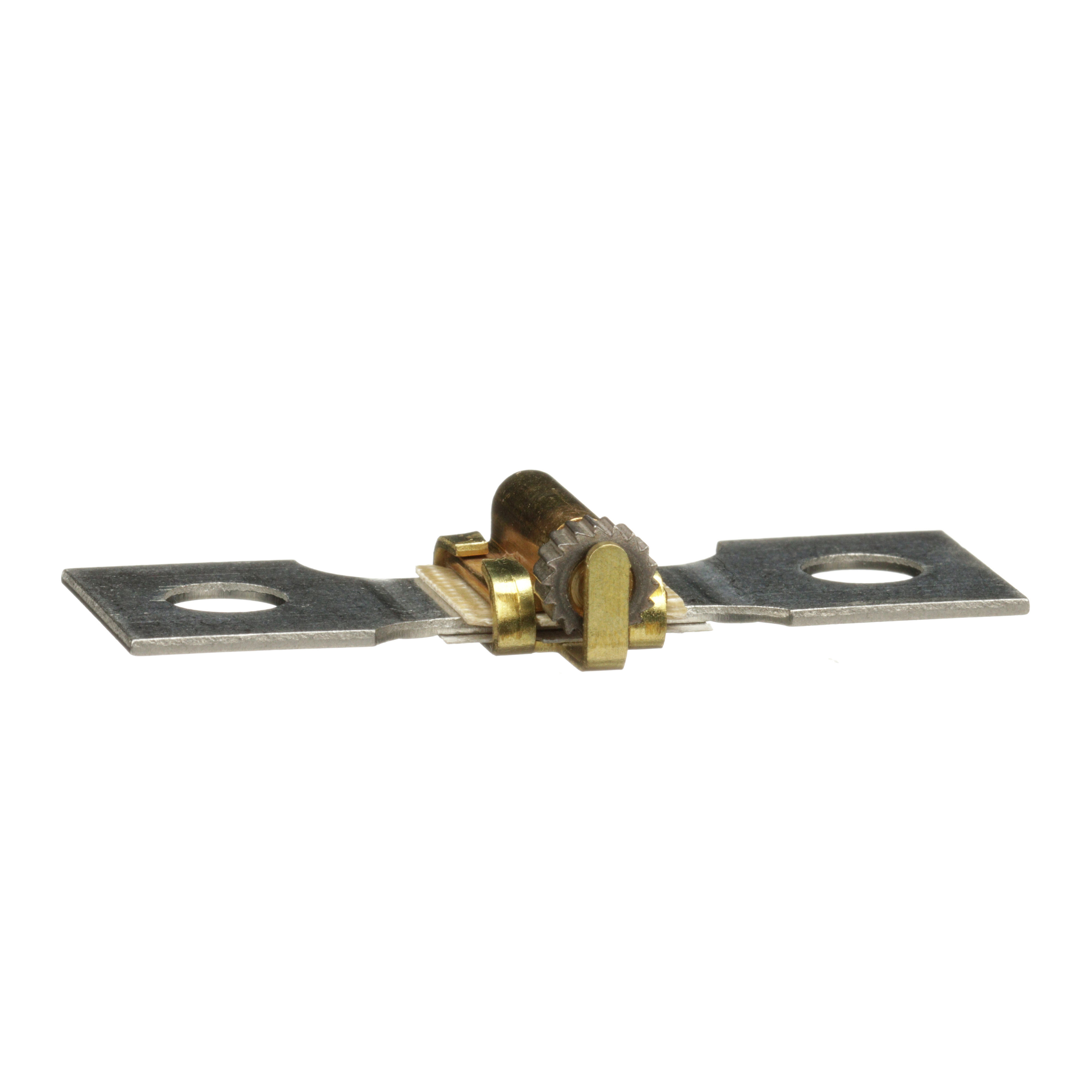

Square D™ CC87.7 Melting Alloy Thermal Unit
Custom_Product_Images_Illustration
Schneider Electric
Square D™ CC87.7 Melting Alloy Thermal Unit
SKU34008
MFGR #CC87.7
Your Cost: $34.10/ea
List: Square D CC87.7 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 103,Thermal - Melting Alloy Thermal Unit
Square D CC87.7 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 103,Thermal - Melting Alloy Thermal Unit
Alternate Catalog Number CC87.7 Amperage Rating NEMA OVERLOAD RELAYS Application FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number CC87.7 Contact Rating MANUAL Country of Origin MX Currency USD EU RoHS Indicator Y Frequency Rating FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS Full Load Current Range DEPENDANT ON OVERLOAD RELAY Full Load Current Rating 49.3 to 113.7 A Gross Volume Per Pack 5.89 Gross Volume per Pack Metric 96.49 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0700 lb Gross Weight per Pack Metric 31.75 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536308000 Height 2.0320 in Height [Metric] 2.0320 cm Item Group 21781 Length 8.1280 in Length [Metric] 8.1280 cm Manufacturer Schneider Electric Maximum Motor Voltage 600VAC Mounting Type Plug-In Power Rating 40C AMBIENT RATED Reset Type Manual Returnable Y Series SCHNEIDER ELECTRIC Size 4.8 in L x 3.4 in W x 2.5 in H Stock Status NONSTOCK Sub Brand SCHNEIDER ELECTRIC Temperature Rating 40 °C Temperature Trip Range 40C AMBIENT RATED Trip Type Standard/Class 103 Type Melting Alloy UNSPSC 39122330 UPC 11 78590158813 UPC 12 785901588139 Voltage Rating THERMAL - MELTING ALLOY THERMAL UNIT Warranty Description Contractual Warranty:18 months Width 5.8420 in Width [Metric] 5.8420 cm FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS NEMA OVERLOAD RELAYS Melting Alloy Thermal Units One-piece thermal unit construction Provides overload protection for most motors Calibration is set for a range of motor full load currents Repeated tripping does not affect the original calibration Cannot be reset until cooled Melting alloy thermal units are available in three designs: standard trip (Class 20) slow trip (Class 30) quick trip (Class 10)
