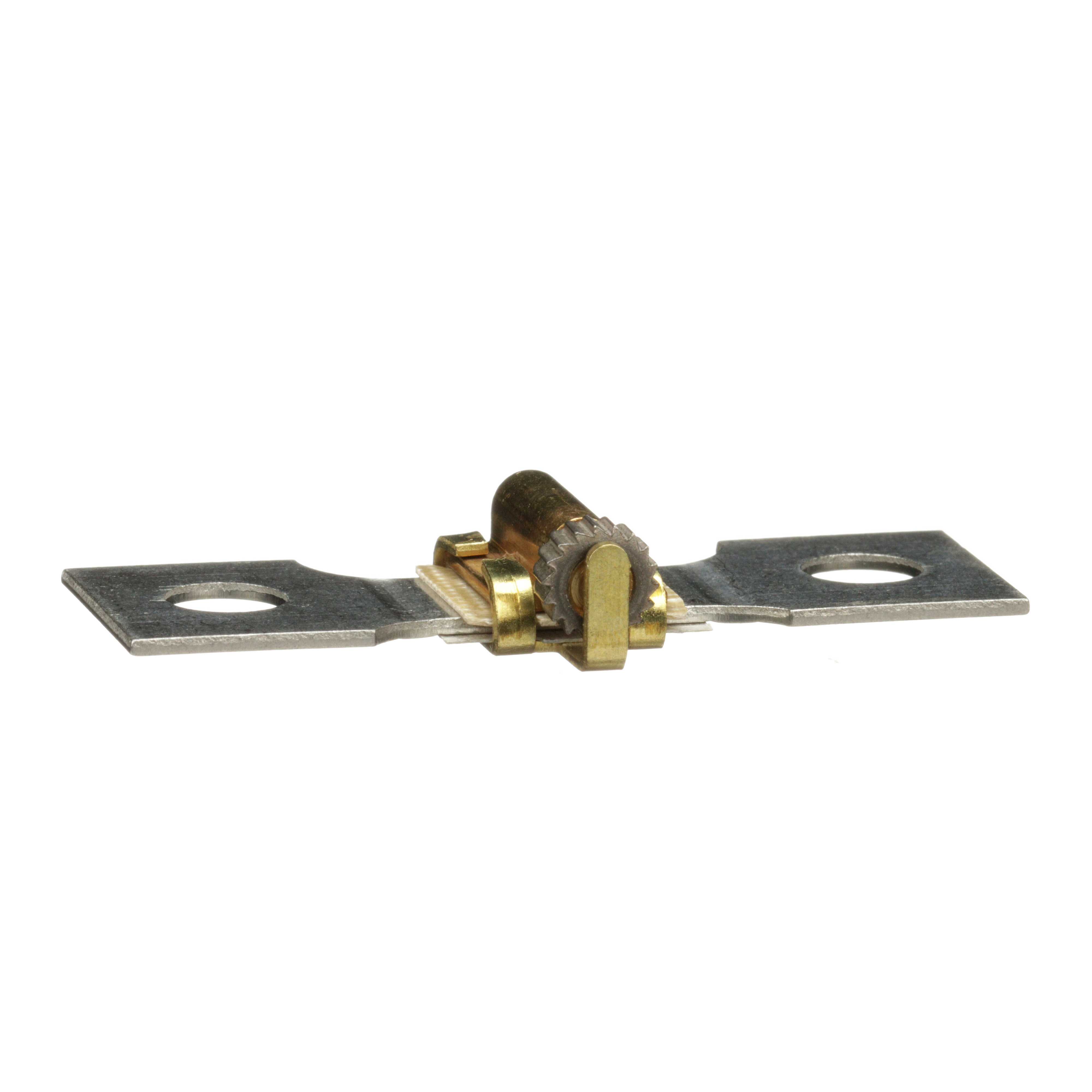

Square D™ CC132.0 Melting Alloy Thermal Unit
SKU34013
MFGR #CC132.0
Your Cost: $34.10/ea
List: Square D CC132.0 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 86,Thermal - Melting Alloy Thermal Unit
Square D CC132.0 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 86,Thermal - Melting Alloy Thermal Unit
Alternate Catalog Number CC132.0 Application FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number CC132.0 Country of Origin MX Currency USD EU RoHS Indicator Y Full Load Current 63.6 to 165.9 A Gross Volume Per Pack 5.89 Gross Volume per Pack Metric 96.49 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1000 lb Gross Weight per Pack Metric 45.36 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536308000 Height 2.0320 in Height [Metric] 2.0320 cm Item Group 21781 Length 8.1280 in Length [Metric] 8.1280 cm Manufacturer Schneider Electric Maximum Motor Voltage 600VAC Mounting Type Plug-In Reset Type Manual Returnable Y Size 4.8 in L x 3.5 in W x 2.4 in H Stock Status NONSTOCK Sub Brand SCHNEIDER ELECTRIC Temperature Rating 40 °C Temperature Trip Range 40C AMBIENT RATED Trip Type Standard/Class 86 Type Melting Alloy UNSPSC 39122330 UPC 11 78590158818 UPC 12 785901588184 Warranty Description Contractual Warranty:18 months Width 5.8420 in Width [Metric] 5.8420 cm FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS NEMA OVERLOAD RELAYS Manual reset Full load current range dependant on overload relay Type CC thermal unit 63.6 to 165.9 A (1 thermal unit), 70.2 to 95.6 A (2 thermal unit), 66.4 to 94.9 A (3 thermal unit) full load current 40 deg C or less
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | CC132.0 |
| Application | FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | CC132.0 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Full Load Current | 63.6 to 165.9 A |
| Gross Volume Per Pack | 5.89 |
| Gross Volume per Pack Metric | 96.49 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1000 lb |
| Gross Weight per Pack Metric | 45.36 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 2.0320 in |
| Height [Metric] | 2.0320 cm |
| Item Group | 21781 |
| Length | 8.1280 in |
| Length [Metric] | 8.1280 cm |
| Manufacturer | Schneider Electric |
| Maximum Motor Voltage | 600VAC |
| Mounting Type | Plug-In |
| Reset Type | Manual |
| Returnable | Y |
| Size | 4.8 in L x 3.5 in W x 2.4 in H |
| Stock Status | NONSTOCK |
| Sub Brand | SCHNEIDER ELECTRIC |
| Temperature Rating | 40 °C |
| Temperature Trip Range | 40C AMBIENT RATED |
| Trip Type | Standard/Class 86 |
| Type | Melting Alloy |
| UNSPSC | 39122330 |
| UPC 11 | 78590158818 |
| UPC 12 | 785901588184 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.8420 in |
| Width [Metric] | 5.8420 cm |
| FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS |
| NEMA OVERLOAD RELAYS |
| Manual reset |
| Full load current range dependant on overload relay |
| Type CC thermal unit |
| 63.6 to 165.9 A (1 thermal unit), 70.2 to 95.6 A (2 thermal unit), 66.4 to 94.9 A (3 thermal unit) full load current |
| 40 deg C or less |
