Square D™

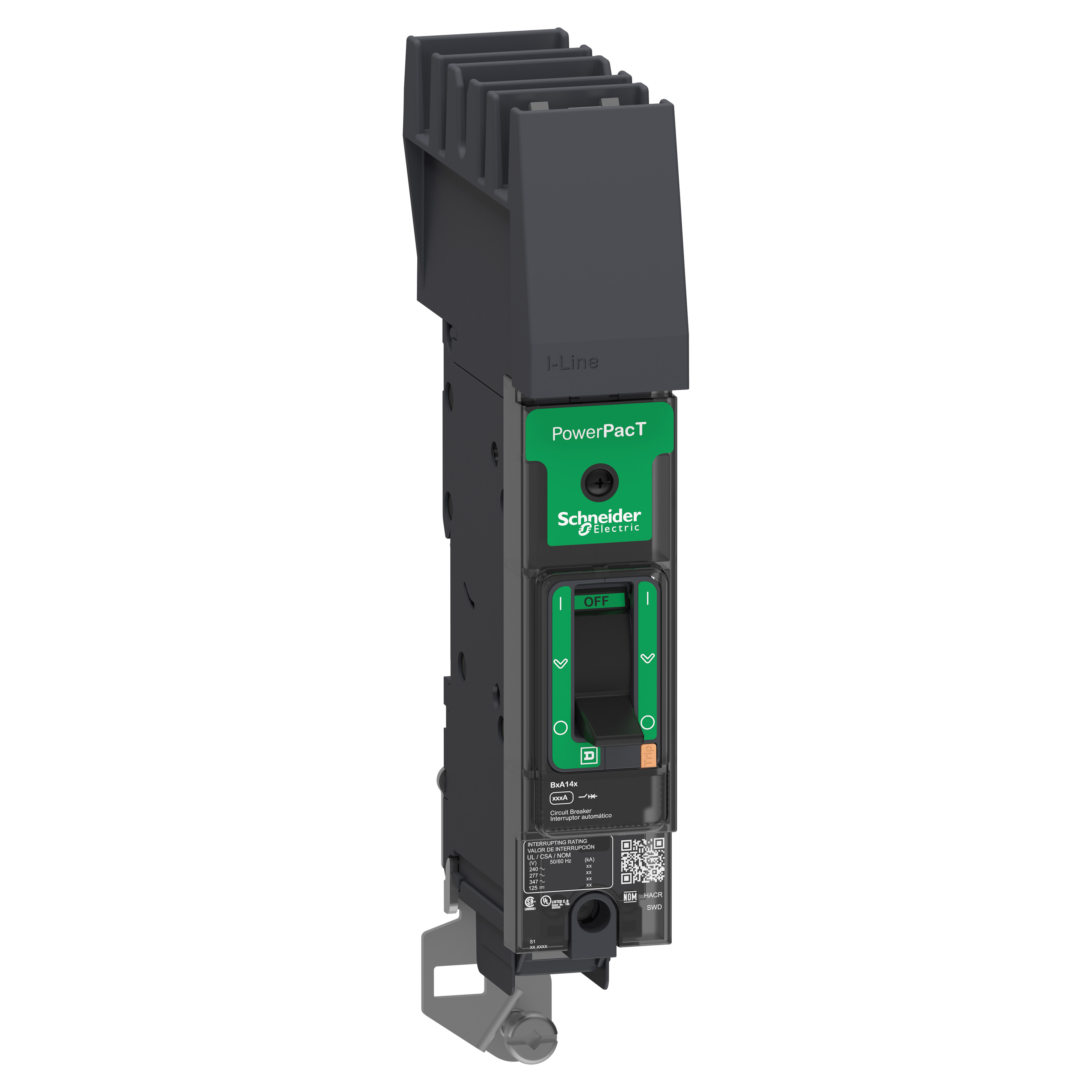

Square D™ BKA160153 MOLDED CASE CIRCUIT BREAKER 347V 15A
Custom_Product_Images_Illustration
Square D™
Square D™ BKA160153 MOLDED CASE CIRCUIT BREAKER 347V 15A
SKUPDW~12432598
MFGR #BKA160153
Price Not Available
Square D BKA160153 MOLDED CASE CIRCUIT BREAKER 347V 15A
Square D BKA160153 MOLDED CASE CIRCUIT BREAKER 347V 15A
Actuator Type Toggle Alternate Catalog Number BKA160153 ARRA Compliant N Buy American Compliant N Catalog Number BKA160153 Color Gray Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 5.39 in H x 1.06 in W x 4.01 in D Enclosure Type NEMA AB4/IP40 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Gross Weight Per Pack 7.9830 lb Gross Weight per Pack Metric 798.30 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 4.3000 in Height [Metric] 4.3000 cm Item Group 01135 Length 32.3000 in Length [Metric] 32.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590678&lang=en-us Mounting Type DIN Rail/Threaded Number Of Poles 1 Phase 1 Returnable Y Temperature Rating -13 to 158 Trip Range 400 to 600 UNSPSC 39121616 Width 21.1000 in Width [Metric] 21.1000 cm Wire Size 14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 100 kA at 240 VAC, 65 kA at 480 VAC/600Y/347 VAC Trip Type LI/Thermal Magnetic Voltage Rating 600Y/347
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | BKA160153 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BKA160153 |
| Color | Gray |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.39 in H x 1.06 in W x 4.01 in D |
| Enclosure Type | NEMA AB4/IP40 |
| EU RoHS Indicator | Y |
| Frame | B |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 7.9830 lb |
| Gross Weight per Pack Metric | 798.30 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.3000 in |
| Height [Metric] | 4.3000 cm |
| Item Group | 01135 |
| Length | 32.3000 in |
| Length [Metric] | 32.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590678&lang=en-us |
| Mounting Type | DIN Rail/Threaded |
| Number Of Poles | 1 |
| Phase | 1 |
| Returnable | Y |
| Temperature Rating | -13 to 158 |
| Trip Range | 400 to 600 |
| UNSPSC | 39121616 |
| Width | 21.1000 in |
| Width [Metric] | 21.1000 cm |
| Wire Size | 14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 100 kA at 240 VAC, 65 kA at 480 VAC/600Y/347 VAC |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 600Y/347 |
