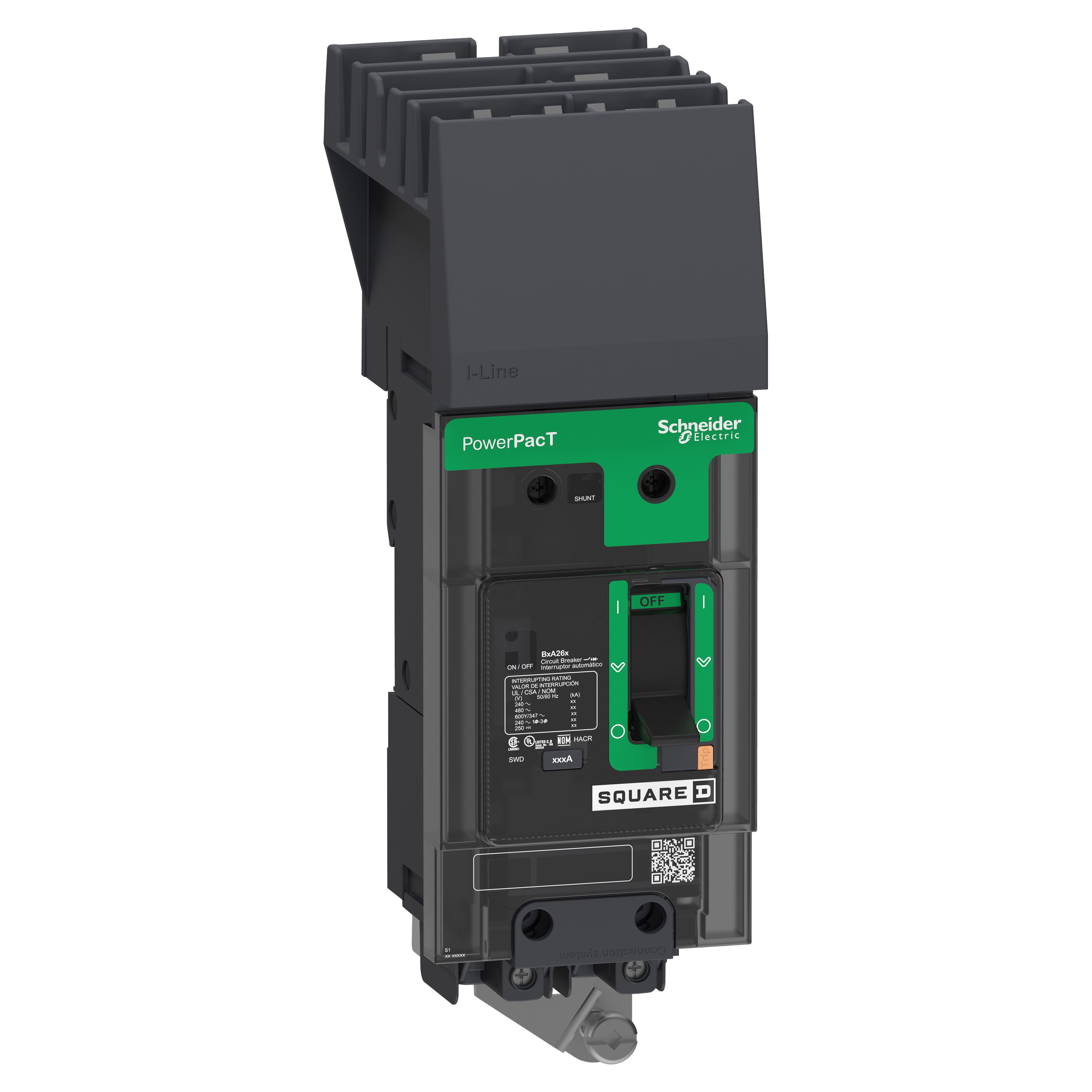

Square D™ BJA261251 MOLDED CASE CIRCUIT B
SKUPDW~12433149
MFGR #BJA261251
Price Not Available
SQD BJA261251 MOLDED CASE CIRCUIT BRKR 600Y/347V 125A
SQD BJA261251 MOLDED CASE CIRCUIT BRKR 600Y/347V 125A
Actuator Type Toggle Alternate Catalog Number BJA261251 ARRA Compliant N Buy American Compliant N Catalog Number BJA261251 Color Gray Connection I-Line connection, line;lugs, load; AWG 14...AWG 2/0 aluminium/copper Connection Type I-Line™/Mechanical Lug Country of Origin US Currency USD Dimensions 5.39 in H x 2.13 in W x 3.5 in D Enclosure Type IP40/IK07 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Hz Gross Weight Per Pack 8.6183 lb Gross Weight per Pack Metric 861.83 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 13.7000 in Height [Metric] 13.7000 cm Item Group 01135 Length 8.9000 in Length [Metric] 8.9000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590492&lang=en-us Number Of Poles 2 Returnable Y Standards ARRA CompliantBuy American Act CompliantUL 489CSA C22.2 No. 5EN/IEC 60947-2EN/IEC 60947-5-1GB 14048.2NMX J-266NEMA AB1CCC/CE MarkedEAC/NOM Certifiedeccn: EAR99 Temperature Rating -13 to 158 °F Trip Range 1000 to 1500 A Type Type BJA UNSPSC 39121616 UPC 11 78590105881 UPC 12 785901058816 Width 5.4000 in Width [Metric] 5.4000 cm Wire Size 14 to 2/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 600Y/347 VAC/250 VDC I-LINE MOUNT READY-TO-INSTALL - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS In case of a short circuit, increased magnetic flux causes the plug-on connectors of the circuit breaker to tighten their grasp on the busbars I-Line™ circuit breakers come with aluminum mechanical load side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs 100 kA at 240 VAC, 65 kA at 277 VAC, 25 kA at 347 VAC, 50 kA at 250 VDC interrupt rating AB-phase connection Manual reset
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | BJA261251 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BJA261251 |
| Color | Gray |
| Connection | I-Line connection, line;lugs, load; AWG 14...AWG 2/0 aluminium/copper |
| Connection Type | I-Line™/Mechanical Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.39 in H x 2.13 in W x 3.5 in D |
| Enclosure Type | IP40/IK07 |
| EU RoHS Indicator | Y |
| Frame | B |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 8.6183 lb |
| Gross Weight per Pack Metric | 861.83 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.7000 in |
| Height [Metric] | 13.7000 cm |
| Item Group | 01135 |
| Length | 8.9000 in |
| Length [Metric] | 8.9000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590492&lang=en-us |
| Number Of Poles | 2 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantUL 489CSA C22.2 No. 5EN/IEC 60947-2EN/IEC 60947-5-1GB 14048.2NMX J-266NEMA AB1CCC/CE MarkedEAC/NOM Certifiedeccn: EAR99 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 1000 to 1500 A |
| Type | Type BJA |
| UNSPSC | 39121616 |
| UPC 11 | 78590105881 |
| UPC 12 | 785901058816 |
| Width | 5.4000 in |
| Width [Metric] | 5.4000 cm |
| Wire Size | 14 to 2/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600Y/347 VAC/250 VDC |
| I-LINE MOUNT READY-TO-INSTALL - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS |
| In case of a short circuit, increased magnetic flux causes the plug-on connectors of the circuit breaker to tighten their grasp on the busbars |
| I-Line™ circuit breakers come with aluminum mechanical load side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs |
| 100 kA at 240 VAC, 65 kA at 277 VAC, 25 kA at 347 VAC, 50 kA at 250 VDC interrupt rating |
| AB-phase connection |
| Manual reset |
