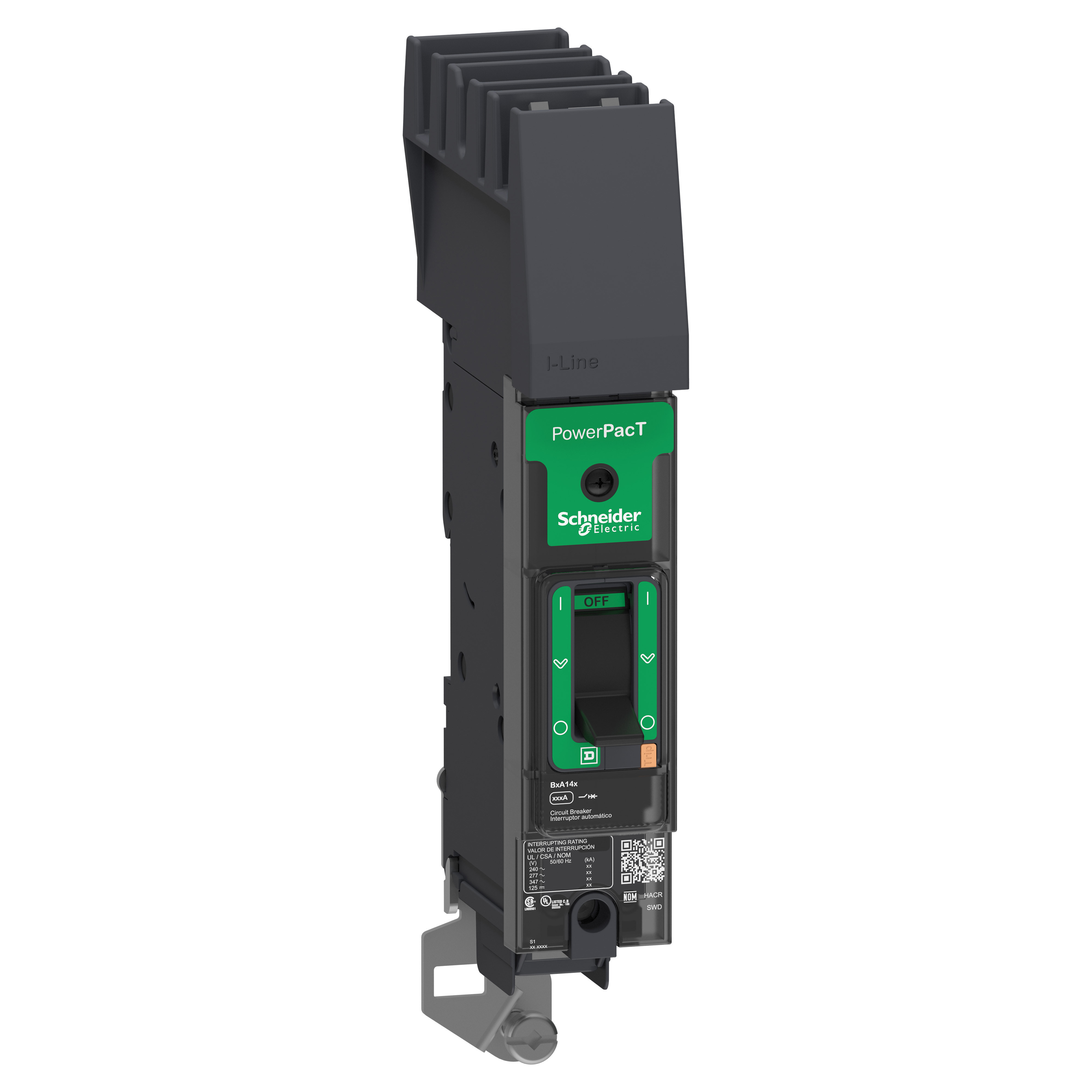

Square D™ BJA161001 MOLDED CASE CIRCUIT B
SKUPDW~12433134
MFGR #BJA161001
Your Cost: $609.59/ea
List: Square D BJA161001 MOLDED CASE CIRCUIT BREAKER 347V 100A
Square D BJA161001 MOLDED CASE CIRCUIT BREAKER 347V 100A
Actuator HANDLE AND PUSH-TO-TRIP BUTTON Actuator Type Toggle Alternate Catalog Number BJA161001 Application For providing overload and short circuit protection ARRA Compliant N Auxiliary Contacts AVAILABLE SEPARATELY Buy American Compliant N Catalog Number BJA161001 Color Gray Connection LINE: I-LINE CONNECTION / LOAD: LUG TERMINAL Connection Type I-Line™/Mechanical Lug Country of Origin UKN Dimensions 5.39 in H x 1.06 in W x 3.5 in D Enclosure MOLDED CASE Enclosure Type IP40/IK07 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Hz Gross Weight Per Pack 1.0980 lb Gross Weight per Pack Metric 498.95 Gross Weight UOM Metric g Height 9.7 in Item Group 01135 Length 1.48 Load Rating 100KA AT 240VAC - 65KA AT 277VAC - 25KA AT 347VAC Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590475&lang=en-us Number Of Poles 1 Operating Temperature -25 to 70 °C Phase 1 pH Reset Type MANUAL RESET Returnable N Standard UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING Sub Brand SQUARE D Substitute Product Catalog Number LV426962 Temperature Rating -13 to 158 °F Trip Range 1000 to 1500 A Type Type BJA UNSPSC 39121601 UPC 11 785901057154 UPC 12 785901057154 Width 5.17 in Wire Size 14 to 2/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 600Y/347 VAC/250 VDC VAC FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE MOUNT READY-TO-INSTALL - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS In case of a short circuit, increased magnetic flux causes the plug-on connectors of the circuit breaker to tighten their grasp on the busbars I-Line™ circuit breakers come with aluminum mechanical load side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs 100 kA at 240 VAC, 65 kA at 277 VAC, 25 kA at 347 VAC, 50 kA at 250 VDC interrupt rating A-phase connection Manual reset
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | HANDLE AND PUSH-TO-TRIP BUTTON |
| Actuator Type | Toggle |
| Alternate Catalog Number | BJA161001 |
| Application | For providing overload and short circuit protection |
| ARRA Compliant | N |
| Auxiliary Contacts | AVAILABLE SEPARATELY |
| Buy American Compliant | N |
| Catalog Number | BJA161001 |
| Color | Gray |
| Connection | LINE: I-LINE CONNECTION / LOAD: LUG TERMINAL |
| Connection Type | I-Line™/Mechanical Lug |
| Country of Origin | UKN |
| Dimensions | 5.39 in H x 1.06 in W x 3.5 in D |
| Enclosure | MOLDED CASE |
| Enclosure Type | IP40/IK07 |
| EU RoHS Indicator | Y |
| Frame | B |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 1.0980 lb |
| Gross Weight per Pack Metric | 498.95 |
| Gross Weight UOM Metric | g |
| Height | 9.7 in |
| Item Group | 01135 |
| Length | 1.48 |
| Load Rating | 100KA AT 240VAC - 65KA AT 277VAC - 25KA AT 347VAC |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590475&lang=en-us |
| Number Of Poles | 1 |
| Operating Temperature | -25 to 70 °C |
| Phase | 1 pH |
| Reset Type | MANUAL RESET |
| Returnable | N |
| Standard | UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING |
| Sub Brand | SQUARE D |
| Substitute Product Catalog Number | LV426962 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 1000 to 1500 A |
| Type | Type BJA |
| UNSPSC | 39121601 |
| UPC 11 | 785901057154 |
| UPC 12 | 785901057154 |
| Width | 5.17 in |
| Wire Size | 14 to 2/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600Y/347 VAC/250 VDC VAC |
| FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE MOUNT READY-TO-INSTALL - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS |
| In case of a short circuit, increased magnetic flux causes the plug-on connectors of the circuit breaker to tighten their grasp on the busbars |
| I-Line™ circuit breakers come with aluminum mechanical load side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs |
| 100 kA at 240 VAC, 65 kA at 277 VAC, 25 kA at 347 VAC, 50 kA at 250 VDC interrupt rating |
| A-phase connection |
| Manual reset |
