Square D™ BJA160801 MOLDED CASE CIRCUIT B
Custom_Product_Images_Illustration
Square D™
Square D™ BJA160801 MOLDED CASE CIRCUIT B
SKUPDW~12433132
MFGR #BJA160801
Price Not Available

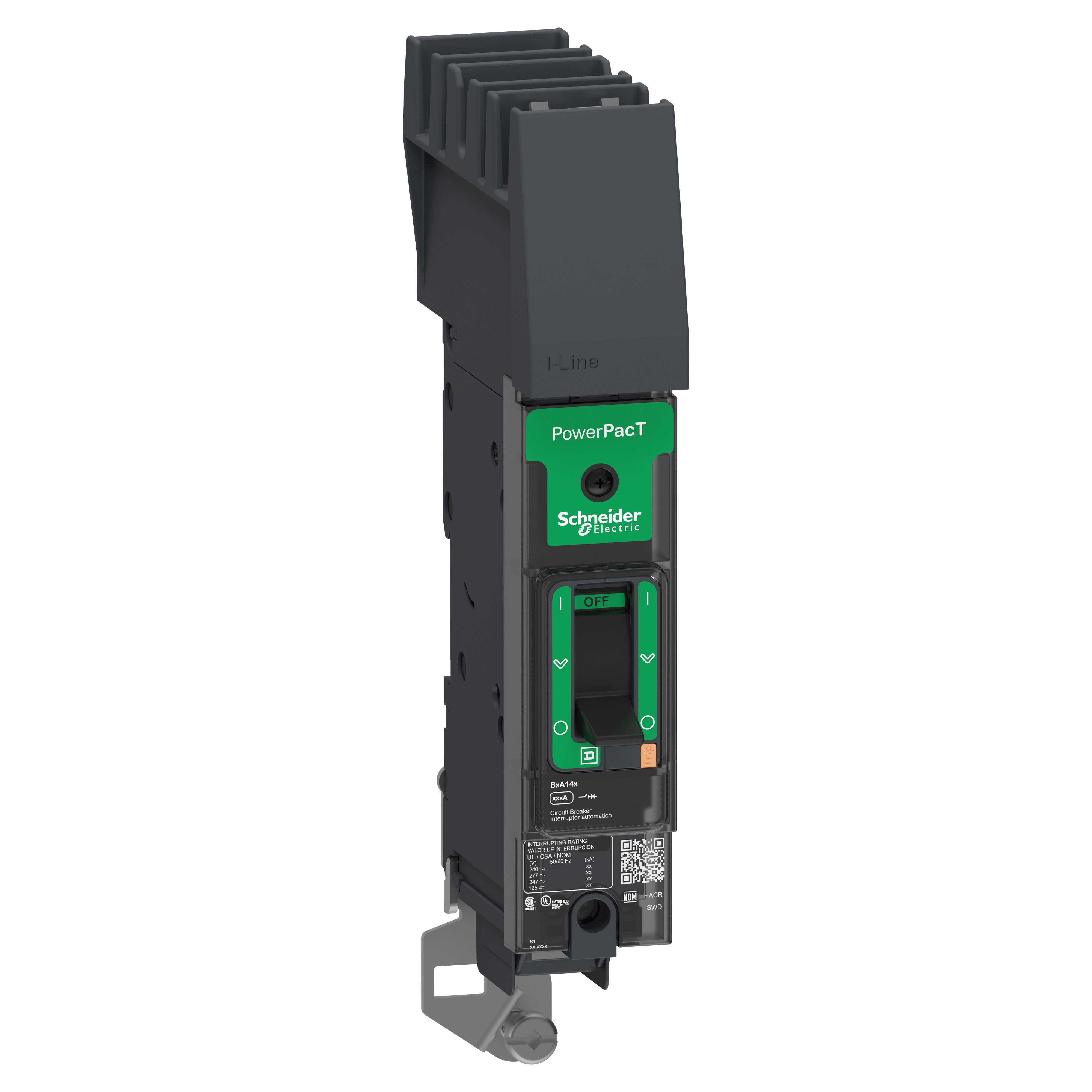

Square D BJA160801 MOLDED CASE CIRCUIT BREAKER 347V 80A
Square D BJA160801 MOLDED CASE CIRCUIT BREAKER 347V 80A
Actuator HANDLE AND PUSH-TO-TRIP BUTTON Actuator Type Toggle Alternate Catalog Number BJA160801 Application For providing overload and short circuit protection ARRA Compliant N Auxiliary Contacts AVAILABLE SEPARATELY Buy American Compliant N Catalog Number BJA160801 Color Gray Connection LINE: I-LINE CONNECTION / LOAD: LUG TERMINAL Connection Type I-Line™/Mechanical Lug Country of Origin UKN Currency USD Dimensions 5.39 in H x 1.06 in W x 3.5 in D Enclosure MOLDED CASE Enclosure Type IP40/IK07 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Hz Gross Weight Per Pack 1.1000 lb Gross Weight per Pack Metric 498.95 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 5.34 in Height [Metric] 13.7000 cm Item Group 01135 Length 3.47 in Length [Metric] 8.9000 cm Load Rating 100KA AT 240VAC - 65KA AT 277VAC - 25KA AT 347VAC Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590473&lang=en-us Number Of Poles 1 Operating Temperature -25 to 70 °C Phase 1 pH Returnable Y Standard UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING Sub Brand SQUARE D Substitute Product Catalog Number LV426907 Temperature Rating -13 to 158 °F Trip Range 800 to 1200 A Type Type BJA UNSPSC 39121601 UPC 11 78590105713 UPC 12 785901057130 Width 1.05 in Width [Metric] 2.7000 cm Wire Size 14 to 2/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 80 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 600Y/347 VAC/250 VDC VAC FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE MOUNT READY-TO-INSTALL - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS In case of a short circuit, increased magnetic flux causes the plug-on connectors of the circuit breaker to tighten their grasp on the busbars I-Line™ circuit breakers come with aluminum mechanical load side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs 100 kA at 240 VAC, 65 kA at 277 VAC, 25 kA at 347 VAC, 50 kA at 250 VDC interrupt rating A-phase connection Manual reset
