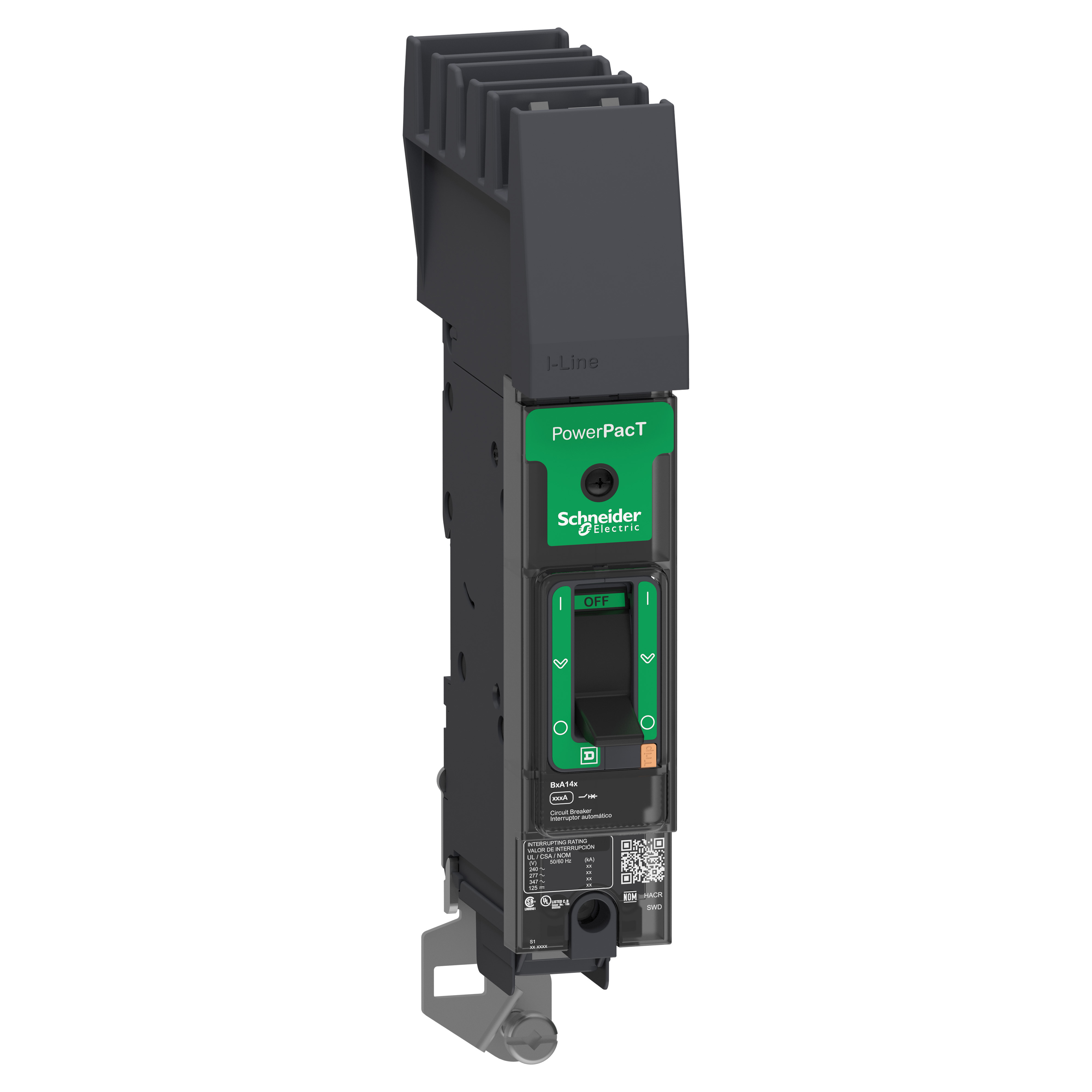

Square D™ BJA160401 MOLDED CASE CIRCUIT BREAKER 347V 40A
SKUPDW~12433127
MFGR #BJA160401
Price Not Available
MOLDED CASE CIRCUIT BREAKER 347V 40A
MOLDED CASE CIRCUIT BREAKER 347V 40A
Actuator HANDLE AND PUSH-TO-TRIP BUTTON Actuator Type Toggle Alternate Catalog Number BJA160401 Application For providing overload and short circuit protection ARRA Compliant N Auxiliary Contacts AVAILABLE SEPARATELY Buy American Compliant N Catalog Number BJA160401 Color Gray Connection LINE: I-LINE CONNECTION / LOAD: LUG TERMINAL Connection Type I-Line™/Mechanical Lug Country of Origin MX Currency USD Dimensions 5.39 in H x 1.06 in W x 3.5 in D Enclosure MOLDED CASE Enclosure Type IP40/IK07 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Hz Gross Weight Per Pack 4.9895 lb Gross Weight per Pack Metric 498.95 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 13.7000 in Height [Metric] 13.7000 cm Item Group 01135 Length 8.9000 in Length [Metric] 8.9000 cm Load Rating 100KA AT 240VAC - 65KA AT 277VAC - 25KA AT 347VAC Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590468&lang=en-us Number Of Poles 1 Operating Temperature -25 to 70 °C Phase 1 pH Returnable Y Standard UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING Sub Brand SQUARE D Substitute Product Catalog Number LV426907 Temperature Rating -13 to 158 °F Trip Range 400 to 600 A Type Type BJA UNSPSC 39121601 UPC 11 78590106744 UPC 12 785901067443 Width 2.7000 in Width [Metric] 2.7000 cm Wire Size 14 to 2/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 40 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 600Y/347 VAC FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION I-LinE MOUNT READY-TO-inSTALL - FIELD-inSTALLABLE ACCESSORIES - FIELD inSTALLABLE LUGS I-Line™ circuit breakers use blow on type line side connectors In case of a short circuit, increased magnetic flux causes the plug on connectors of the circuit breaker to tighten their grasp on the busbars I-Line™ connectors and circuit breaker mounting bracket are integral parts of I-Line™ circuit breakers and cannot be removed or replaced I-Line™ circuit breakers come with aluminum mechanical load-side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC interrupt rating A phase connection I-Line™ ON end, aluminum mechanical lug OFF end terminations
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | HANDLE AND PUSH-TO-TRIP BUTTON |
| Actuator Type | Toggle |
| Alternate Catalog Number | BJA160401 |
| Application | For providing overload and short circuit protection |
| ARRA Compliant | N |
| Auxiliary Contacts | AVAILABLE SEPARATELY |
| Buy American Compliant | N |
| Catalog Number | BJA160401 |
| Color | Gray |
| Connection | LINE: I-LINE CONNECTION / LOAD: LUG TERMINAL |
| Connection Type | I-Line™/Mechanical Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.39 in H x 1.06 in W x 3.5 in D |
| Enclosure | MOLDED CASE |
| Enclosure Type | IP40/IK07 |
| EU RoHS Indicator | Y |
| Frame | B |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 4.9895 lb |
| Gross Weight per Pack Metric | 498.95 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.7000 in |
| Height [Metric] | 13.7000 cm |
| Item Group | 01135 |
| Length | 8.9000 in |
| Length [Metric] | 8.9000 cm |
| Load Rating | 100KA AT 240VAC - 65KA AT 277VAC - 25KA AT 347VAC |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590468&lang=en-us |
| Number Of Poles | 1 |
| Operating Temperature | -25 to 70 °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING |
| Sub Brand | SQUARE D |
| Substitute Product Catalog Number | LV426907 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 400 to 600 A |
| Type | Type BJA |
| UNSPSC | 39121601 |
| UPC 11 | 78590106744 |
| UPC 12 | 785901067443 |
| Width | 2.7000 in |
| Width [Metric] | 2.7000 cm |
| Wire Size | 14 to 2/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 40 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600Y/347 VAC |
| FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LinE MOUNT READY-TO-inSTALL - FIELD-inSTALLABLE ACCESSORIES - FIELD inSTALLABLE LUGS |
| I-Line™ circuit breakers use blow on type line side connectors |
| In case of a short circuit, increased magnetic flux causes the plug on connectors of the circuit breaker to tighten their grasp on the busbars |
| I-Line™ connectors and circuit breaker mounting bracket are integral parts of I-Line™ circuit breakers and cannot be removed or replaced |
| I-Line™ circuit breakers come with aluminum mechanical load-side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs |
| 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC interrupt rating |
| A phase connection |
| I-Line™ ON end, aluminum mechanical lug OFF end terminations |
