Square D™ BGA261101 MOLDED CASE CIRCUIT B
SKUPDW~12433117
MFGR #BGA261101
Price Not Available

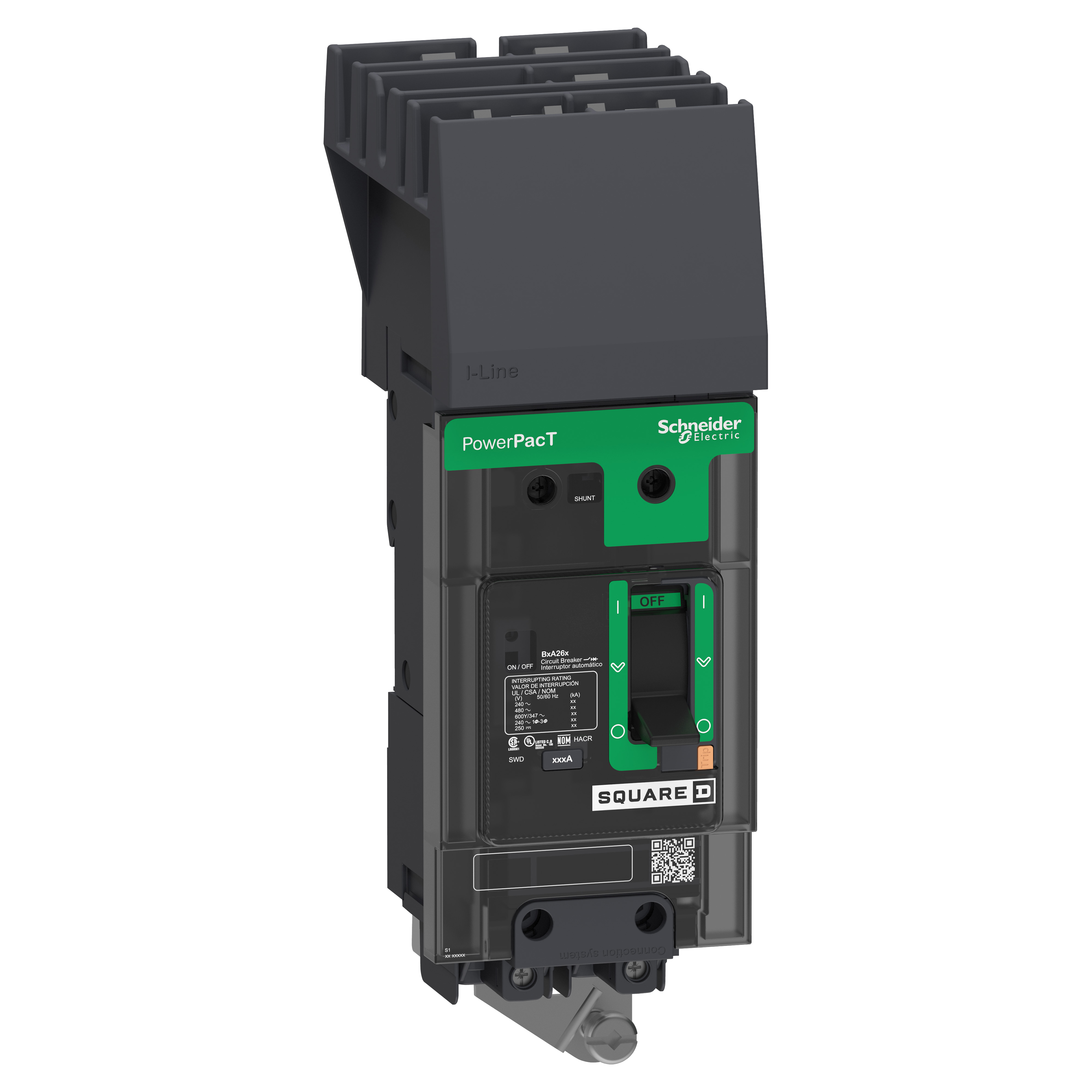

Square D BGA261101 MOLDED CASE CIRCUIT BRKR 600Y/347V 110A
Square D BGA261101 MOLDED CASE CIRCUIT BRKR 600Y/347V 110A
Actuator HANDLE AND PUSH-TO-TRIP BUTTON Actuator Type Toggle Alternate Catalog Number BGA261101 Application For providing overload and short circuit protection ARRA Compliant N Auxiliary Contacts AVAILABLE SEPARATELY Buy American Compliant N Catalog Number BGA261101 Color Gray Connection LINE: I-LINE CONNECTION / LOAD: LUG TERMINAL Connection Type I-Line™/Mechanical Lug Country of Origin US Dimensions 5.39 in H x 2.13 in W x 3.5 in D Enclosure MOLDED CASE Enclosure Type IP40/IK07 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Hz Gross Weight Per Pack 8.6183 lb Gross Weight per Pack Metric 861.83 Gross Weight UOM Metric g Height 5.39 in Item Group 01134 Length 2.98 Load Rating 65KA AT 240VAC - 35KA AT 480VAC - 18KA AT 600Y/347VAC Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590279&lang=en-us Number Of Poles 2 Operating Temperature -25 to 70 °C Returnable N Standard UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING Sub Brand SQUARE D Temperature Rating -13 to 158 °F Trip Range 1000 to 1500 A Type Type BGA UNSPSC 39121601 UPC 11 78590105504 UPC 12 785901055044 Width 2.13 in Wire Size 14 to 2/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 110 A Interrupt Rating 18 kA Trip Type Thermal Magnetic Voltage Rating 600Y/347 VAC/250 VDC VAC FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE MOUNT READY-TO-INSTALL - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS In case of a short circuit, increased magnetic flux causes the plug-on connectors of the circuit breaker to tighten their grasp on the busbars I-Line™ circuit breakers come with aluminum mechanical load side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC, 10 kA at 250 VDC interrupt rating AB-phase connection Manual reset
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | HANDLE AND PUSH-TO-TRIP BUTTON |
| Actuator Type | Toggle |
| Alternate Catalog Number | BGA261101 |
| Application | For providing overload and short circuit protection |
| ARRA Compliant | N |
| Auxiliary Contacts | AVAILABLE SEPARATELY |
| Buy American Compliant | N |
| Catalog Number | BGA261101 |
| Color | Gray |
| Connection | LINE: I-LINE CONNECTION / LOAD: LUG TERMINAL |
| Connection Type | I-Line™/Mechanical Lug |
| Country of Origin | US |
| Dimensions | 5.39 in H x 2.13 in W x 3.5 in D |
| Enclosure | MOLDED CASE |
| Enclosure Type | IP40/IK07 |
| EU RoHS Indicator | Y |
| Frame | B |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 8.6183 lb |
| Gross Weight per Pack Metric | 861.83 |
| Gross Weight UOM Metric | g |
| Height | 5.39 in |
| Item Group | 01134 |
| Length | 2.98 |
| Load Rating | 65KA AT 240VAC - 35KA AT 480VAC - 18KA AT 600Y/347VAC |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590279&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -25 to 70 °C |
| Returnable | N |
| Standard | UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING |
| Sub Brand | SQUARE D |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 1000 to 1500 A |
| Type | Type BGA |
| UNSPSC | 39121601 |
| UPC 11 | 78590105504 |
| UPC 12 | 785901055044 |
| Width | 2.13 in |
| Wire Size | 14 to 2/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 110 A |
| Interrupt Rating | 18 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600Y/347 VAC/250 VDC VAC |
| FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE MOUNT READY-TO-INSTALL - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS |
| In case of a short circuit, increased magnetic flux causes the plug-on connectors of the circuit breaker to tighten their grasp on the busbars |
| I-Line™ circuit breakers come with aluminum mechanical load side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC, 10 kA at 250 VDC interrupt rating |
| AB-phase connection |
| Manual reset |
