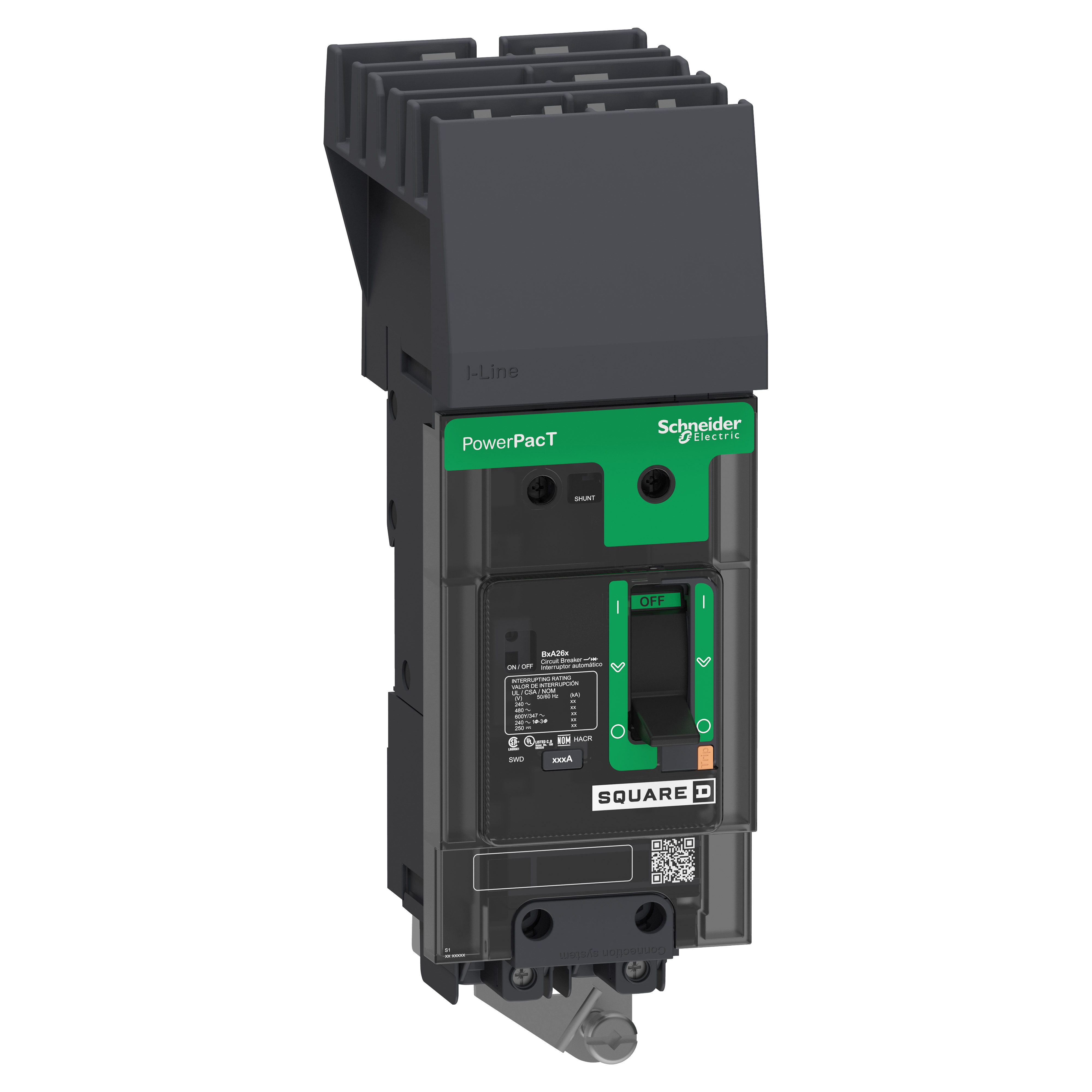

Square D™ BDA261002 MOLDED CASE CIRCUIT BRKR 600Y/347V 100A

Custom_Product_Images_Illustration

SKU1095737

MFGR #BDA261002

Your Cost: $611.60/ea

List: ~~$980.00~~ /ea

Square D BDA261002 MOLDED CASE CIRCUIT BRKR 600Y/347V 100A

: Actuator Type
Toggle
Alternate Catalog Number
BDA261002
ARRA Compliant
N
Buy American Compliant
N
Catalog Number
BDA261002
Color
Gray
Connection Type
Line/Load Lug
Country of Origin
MX
Currency
USD
Dimensions
5.39 in H x 2.12 in W x 4.01 in D
Enclosure Type
NEMA AB4/IP40
EU RoHS Indicator
Y
Frame
B
Frequency Rating
50/60
Gross Volume Per Pack
451.00
Gross Volume per Pack Metric
7390.54
Gross Volume UOM
CI
Gross Volume UOM Metric
cm3
Gross Weight Per Pack
3.1500 lb
Gross Weight per Pack Metric
1.43
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536200020
Height
4.64 in
Height [Metric]
11.9000 cm
Item Group
01133
Length
12.68 in
Length [Metric]
32.5000 cm
Material Composition Declaration
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442589986&lang=en-us
Mounting Type
DIN Rail/Threaded
Number Of Poles
2
Phase
1
Returnable
Y
Temperature Rating
-13 to 158
Trip Range
1000 to 1500
UNSPSC
39121601
Width
8.03 in
Width [Metric]
20.6000 cm
Wire Size
14 to 2/0 AWG Al/Cu
Stock Status
NONSTOCK
Brand
Square D™
Manufacturer
Schneider Electric
Amperage Rating
100 A
Interrupt Rating
25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600Y/347 VAC
Trip Type
Thermal Magnetic
Voltage Rating
600Y/347
: 360 Degree View
360 Degree View
Brochure
Brochure
Computer~Aided [CAD|BIM] Model
Computer~Aided [CAD|BIM] Model
Install Instructions 1
Seller Home Page
Spec Sheet
Tech Drawing
Tech Drawing

Actuator Type	Toggle
Alternate Catalog Number	BDA261002
ARRA Compliant	N
Buy American Compliant	N
Catalog Number	BDA261002
Color	Gray
Connection Type	Line/Load Lug
Country of Origin	MX
Currency	USD
Dimensions	5.39 in H x 2.12 in W x 4.01 in D
Enclosure Type	NEMA AB4/IP40
EU RoHS Indicator	Y
Frame	B
Frequency Rating	50/60
Gross Volume Per Pack	451.00
Gross Volume per Pack Metric	7390.54
Gross Volume UOM	CI
Gross Volume UOM Metric	cm3
Gross Weight Per Pack	3.1500 lb
Gross Weight per Pack Metric	1.43
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536200020
Height	4.64 in
Height [Metric]	11.9000 cm
Item Group	01133
Length	12.68 in
Length [Metric]	32.5000 cm
Material Composition Declaration	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442589986&lang=en-us
Mounting Type	DIN Rail/Threaded
Number Of Poles	2
Phase	1
Returnable	Y
Temperature Rating	-13 to 158
Trip Range	1000 to 1500
UNSPSC	39121601
Width	8.03 in
Width [Metric]	20.6000 cm
Wire Size	14 to 2/0 AWG Al/Cu
Stock Status	NONSTOCK
Brand	Square D™
Manufacturer	Schneider Electric
Amperage Rating	100 A
Interrupt Rating	25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600Y/347 VAC
Trip Type	Thermal Magnetic
Voltage Rating	600Y/347
