Square D™

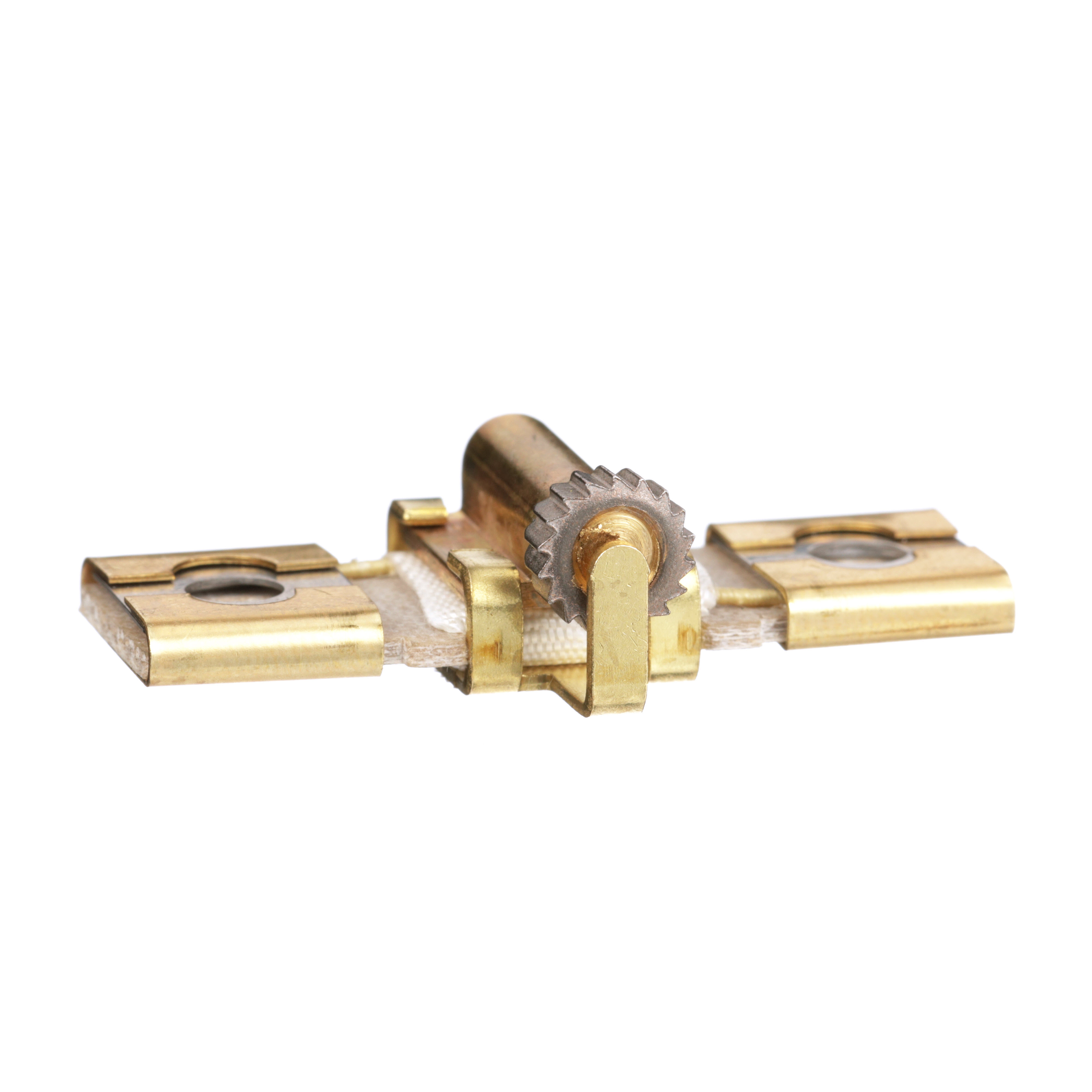

Square D™ B2.10 Thermal Unit, 600 VAC
Custom_Product_Images_Illustration
Square D™
Square D™ B2.10 Thermal Unit, 600 VAC
SKU33962
MFGR #B2.10
Call For Price
List: Square D B2.10 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 56,Thermal - Melting Alloy Thermal Unit
Square D B2.10 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 56,Thermal - Melting Alloy Thermal Unit
FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS NEMA OVERLOAD RELAYS Melting Alloy Thermal Units One-piece thermal unit construction Provides overload protection for most motors Calibration is set for a range of motor full load currents Repeated tripping does not affect the original calibration Cannot be reset until cooled Melting alloy thermal units are available in three designs: standard trip (Class 20) slow trip (Class 30) quick trip (Class 10)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | B2.10 |
| Application | FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | B2.10 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Full Load Current | 1.34 to 1.64 A |
| Gross Volume Per Pack | 2.40 |
| Gross Volume per Pack Metric | 39.33 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.2680 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 2.0000 in |
| Height [Metric] | 2.0000 cm |
| Item Group | 21781 |
| Length | 5.8000 in |
| Length [Metric] | 5.8000 cm |
| Manufacturer | Schneider Electric |
| Maximum Motor Voltage | 600VAC |
| Mounting Type | Plug-In |
| Reset Type | Manual |
| Returnable | Y |
| Size | 4.8 in L x 3.4 in W x 0.8 in H |
| Standard | CE |
| Standards | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | SCHNEIDER ELECTRIC |
| Temperature Rating | 40 °C |
| Temperature Trip Range | 40C AMBIENT RATED |
| Trip Type | Standard/Class 56 |
| Type | Melting Alloy |
| UNSPSC | 39122330 |
| UPC 11 | 78590158733 |
| UPC 12 | 785901587330 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.8000 in |
| Width [Metric] | 2.8000 cm |
| FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS |
| NEMA OVERLOAD RELAYS |
| Melting Alloy Thermal Units |
| One-piece thermal unit construction |
| Provides overload protection for most motors |
| Calibration is set for a range of motor full load currents |
| Repeated tripping does not affect the original calibration |
| Cannot be reset until cooled |
| Melting alloy thermal units are available in three designs: standard trip (Class 20) slow trip (Class 30) quick trip (Class 10) |
