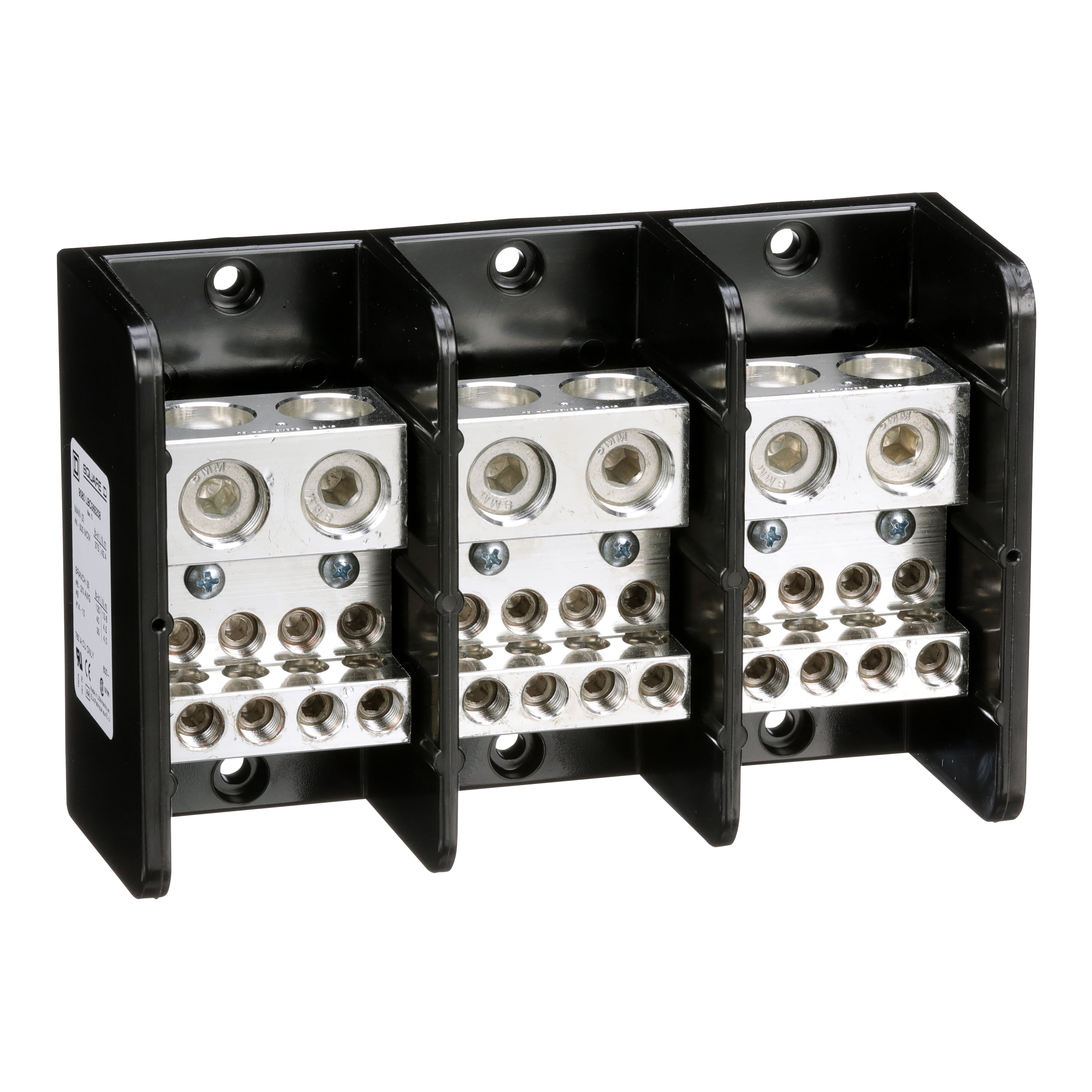

Square D™ 9080LBC365208 PWR DISTR BLK 600
SKU32087
MFGR #9080LBC365208
Your Cost: $671.20/ea
List: Square D 9080LBC365208 POWER DISTRIBUTION BLOCK 600V 760A,(2)#4 to 500 AWG/kcmil (8)#14 to #2/0 AWG,600 V AC,760A Copper Only,9080LB,9080LB53,General Purpose Phenolic,Lugs Tin Plated Copper,Power Distribution Block
Square D 9080LBC365208 POWER DISTRIBUTION BLOCK 600V 760A,(2)#4 to 500 AWG/kcmil (8)#14 to #2/0 AWG,600 V AC,760A Copper Only,9080LB,9080LB53,General Purpose Phenolic,Lugs Tin Plated Copper,Power Distribution Block
Alternate Catalog Number 9080LBC365208 Amperage Rating 760 A Application 9080LB,9080LB53 ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9080LBC365208 Connection LOAD LUG 40 LBF.IN AWG 8 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER-LOAD LUG 120 LBF.IN AWG 6...AWG 1 COPPER,TIN PLATED COPPER LUGS Country of Origin US Currency USD Dimensions 5.5 in H x 8.54 in W x 3.13 in D EU RoHS Indicator Y Gross Volume Per Pack 193.95 Gross Volume per Pack Metric 3178.29 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.3600 lb Gross Weight per Pack Metric 2.43 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 9.6520 in Height [Metric] 9.6520 cm Item Group 21711 Length 22.3520 in Length [Metric] 22.3520 cm Manufacturer Schneider Electric Material Phenolic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373043&lang=en-us Mounting SURFACE MOUNT Number Of Poles 3 Primary Connections|Pole 2 Returnable Y Secondary Connection|Pole 8 Series 9080LB Short Circuit Current Rating 100 kA Size 3.13 IN,5.5 IN,8.54 IN Standard CSA FILE 70361 CLASS 6228 01-UL RECOGNIZED E60616 CCN XCFR2-CE Stock Status NONSTOCK Substitute Product Catalog Number 9080LB53 Type 9080LB53,POWER DISTRIBUTION BLOCK UNSPSC 39121410 UPC 11 78590109769 UPC 12 785901097693 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 14.7320 in Width [Metric] 14.7320 cm Wire Size 4 AWG to 500 kcmil, 14 to 2/0 AWG 9080LB,9080LB53 LUGS TIN PLATED COPPER,PHENOLIC BLOCK (2) 4 AWG to 500 kcmil Cu line, (8) 14 to 2/0 AWG Cu load Lugs tin plated copper connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080LBC365208 |
| Amperage Rating | 760 A |
| Application | 9080LB,9080LB53 |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9080LBC365208 |
| Connection | LOAD LUG 40 LBF.IN AWG 8 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER-LOAD LUG 120 LBF.IN AWG 6...AWG 1 COPPER,TIN PLATED COPPER LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.5 in H x 8.54 in W x 3.13 in D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 193.95 |
| Gross Volume per Pack Metric | 3178.29 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.3600 lb |
| Gross Weight per Pack Metric | 2.43 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 9.6520 in |
| Height [Metric] | 9.6520 cm |
| Item Group | 21711 |
| Length | 22.3520 in |
| Length [Metric] | 22.3520 cm |
| Manufacturer | Schneider Electric |
| Material | Phenolic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373043&lang=en-us |
| Mounting | SURFACE MOUNT |
| Number Of Poles | 3 |
| Primary Connections|Pole | 2 |
| Returnable | Y |
| Secondary Connection|Pole | 8 |
| Series | 9080LB |
| Short Circuit Current Rating | 100 kA |
| Size | 3.13 IN,5.5 IN,8.54 IN |
| Standard | CSA FILE 70361 CLASS 6228 01-UL RECOGNIZED E60616 CCN XCFR2-CE |
| Stock Status | NONSTOCK |
| Substitute Product Catalog Number | 9080LB53 |
| Type | 9080LB53,POWER DISTRIBUTION BLOCK |
| UNSPSC | 39121410 |
| UPC 11 | 78590109769 |
| UPC 12 | 785901097693 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.7320 in |
| Width [Metric] | 14.7320 cm |
| Wire Size | 4 AWG to 500 kcmil, 14 to 2/0 AWG |
| 9080LB,9080LB53 |
| LUGS TIN PLATED COPPER,PHENOLIC BLOCK |
| (2) 4 AWG to 500 kcmil Cu line, (8) 14 to 2/0 AWG Cu load |
| Lugs tin plated copper connection |
