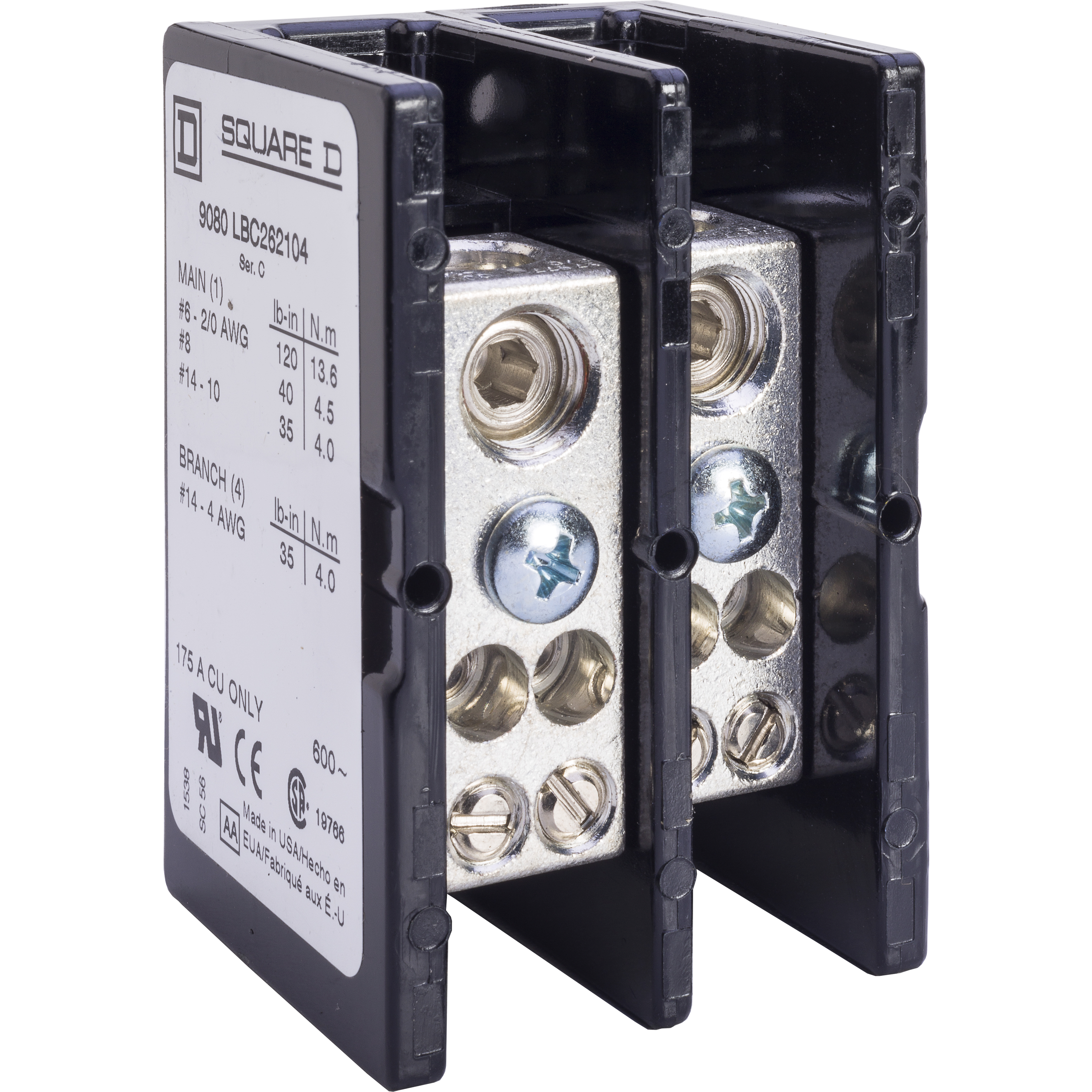

Square D™ 9080LBC262104 POWER DISTRIBUTIO
SKU96837
MFGR #9080LBC262104
Your Cost: $175.14/ea
Square D 9080LBC262104 POWER DISTRIBUTION BLOCK 600V 175A T-LB,(1)#14 to #2/0 AWG (4)#14 to #4 AWG,175A Copper Only,2-Pole,600 V AC,9080LB,9080LB22,General Purpose Phenolic,Lugs Tin Plated Copper,Power Distribution Block
Square D 9080LBC262104 POWER DISTRIBUTION BLOCK 600V 175A T-LB,(1)#14 to #2/0 AWG (4)#14 to #4 AWG,175A Copper Only,2-Pole,600 V AC,9080LB,9080LB22,General Purpose Phenolic,Lugs Tin Plated Copper,Power Distribution Block
Alternate Catalog Number 9080LBC262104 Application 9080LB,9080LB22 ARRA Compliant N Buy American Compliant N Catalog Number 9080LBC262104 Connection LINE LUG 40 LBF.IN AWG 8 COPPER-LINE LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 4 COPPER,TIN PLATED COPPER LUGS Country of Origin US Currency USD Dimensions 2.88 in H x 1.94 in W x 1.78 in D EU RoHS Indicator Y Gross Volume Per Pack 10.44 Gross Volume per Pack Metric 171.08 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5700 lb Gross Weight per Pack Metric 258.55 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538903000 Height 1.9685 in Height [Metric] 5.0800 cm Item Group 21711 Length 1.9685 in Length [Metric] 4.5720 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373027&lang=en-us Mounting SURFACE MOUNT Number Of Poles 2 Primary Connections|Pole 1 Returnable Y Secondary Connection|Pole 4 Series 9080LB Short Circuit Current Rating 65 kA Size 1.78 IN,1.94 IN,2.88 IN in Standard UL RECOGNIZED E60616 CCN XCFR2-CE-CSA FILE 70361 CLASS 6228 01 Substitute Product Catalog Number 9080LB22 Type 9080LB22,POWER DISTRIBUTION BLOCK UNSPSC 39121410 UPC 11 78590115710 UPC 12 785901157106 Warranty Description Contractual Warranty:18 months Width 2.7559 in Width [Metric] 7.3660 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 175 A Material Phenolic Voltage Rating 600 VAC Wire Size 14 to 2/0 AWG, 14 to 4 AWG 9080LB,9080LB22 LUGS TIN PLATED COPPER,PHENOLIC BLOCK (1) 14 to 2/0 AWG Cu line, (4) 14 to 4 AWG Cu load Lugs tin plated copper connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080LBC262104 |
| Application | 9080LB,9080LB22 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9080LBC262104 |
| Connection | LINE LUG 40 LBF.IN AWG 8 COPPER-LINE LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 4 COPPER,TIN PLATED COPPER LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.88 in H x 1.94 in W x 1.78 in D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 10.44 |
| Gross Volume per Pack Metric | 171.08 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5700 lb |
| Gross Weight per Pack Metric | 258.55 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538903000 |
| Height | 1.9685 in |
| Height [Metric] | 5.0800 cm |
| Item Group | 21711 |
| Length | 1.9685 in |
| Length [Metric] | 4.5720 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373027&lang=en-us |
| Mounting | SURFACE MOUNT |
| Number Of Poles | 2 |
| Primary Connections|Pole | 1 |
| Returnable | Y |
| Secondary Connection|Pole | 4 |
| Series | 9080LB |
| Short Circuit Current Rating | 65 kA |
| Size | 1.78 IN,1.94 IN,2.88 IN in |
| Standard | UL RECOGNIZED E60616 CCN XCFR2-CE-CSA FILE 70361 CLASS 6228 01 |
| Substitute Product Catalog Number | 9080LB22 |
| Type | 9080LB22,POWER DISTRIBUTION BLOCK |
| UNSPSC | 39121410 |
| UPC 11 | 78590115710 |
| UPC 12 | 785901157106 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.7559 in |
| Width [Metric] | 7.3660 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 175 A |
| Material | Phenolic |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 2/0 AWG, 14 to 4 AWG |
| 9080LB,9080LB22 |
| LUGS TIN PLATED COPPER,PHENOLIC BLOCK |
| (1) 14 to 2/0 AWG Cu line, (4) 14 to 4 AWG Cu load |
| Lugs tin plated copper connection |
