Square D™

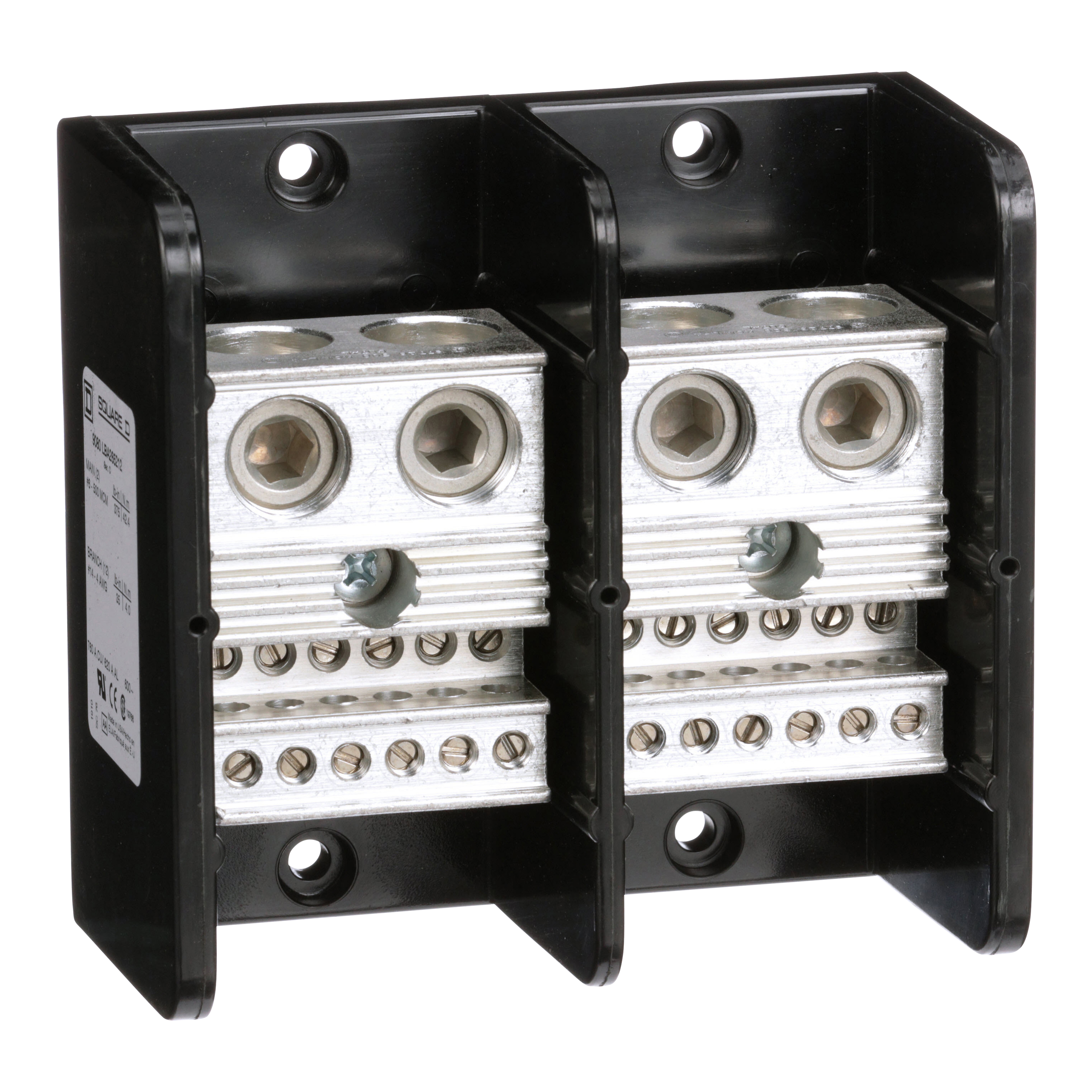

Square D™ 9080LBA265212 POWER DISTRIBUTIO
Custom_Product_Images_Illustration
Square D™
Square D™ 9080LBA265212 POWER DISTRIBUTIO
SKU402159
MFGR #9080LBA265212
Your Cost: $289.57/ea
List: Square D 9080LBA265212 POWER DISTRIBUTION BLOCK 600V 760A T-LB,(2)#4 to 500 AWG/kcmil (12)#14 to #4 AWG,2-Pole,600 V AC,760A 620A,9080LB,9080LB52,General Purpose Phenolic,Lugs Tin Plated Aluminum,Power Distribution Block
Square D 9080LBA265212 POWER DISTRIBUTION BLOCK 600V 760A T-LB,(2)#4 to 500 AWG/kcmil (12)#14 to #4 AWG,2-Pole,600 V AC,760A 620A,9080LB,9080LB52,General Purpose Phenolic,Lugs Tin Plated Aluminum,Power Distribution Block
Alternate Catalog Number 9080LBA265212 Amperage Rating 620/760 A Application 9080LB,9080LB52 ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9080LBA265212 Connection LOAD LUG 35 LBF.IN AWG 14...AWG 4 COPPER OR ALUMINIUM-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS Country of Origin US Currency USD Dimensions 5.5 in H x 5.88 in W x 3.13 in D EU RoHS Indicator Y Gross Volume Per Pack 180.67 Gross Volume per Pack Metric 2960.64 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.7100 lb Gross Weight per Pack Metric 1.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 3.5433 in Height [Metric] 8.8900 cm Item Group 21711 Length 9.0551 in Length [Metric] 22.6060 cm Manufacturer Schneider Electric Material Phenolic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372977&lang=en-us Mounting SURFACE MOUNT Number Of Poles 2 Primary Connections|Pole 2 Returnable Y Secondary Connection|Pole 12 Series 9080LB Short Circuit Current Rating 100 kA Size 3.13 IN,5.5 IN,5.88 IN in Standard CE-UL RECOGNIZED E60616 CCN XCFR2-CSA FILE 70361 CLASS 6228 01 Stock Status NONSTOCK Substitute Product Catalog Number 9080LB52 Type 9080LB52,POWER DISTRIBUTION BLOCK UNSPSC 39121410 UPC 11 78590115708 UPC 12 785901157083 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 5.9055 in Width [Metric] 14.7320 cm Wire Size 4 AWG to 500 kcmil, 14 to 4 AWG 9080LB,9080LB52 LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK (2) 4 AWG to 500 kcmil Al/Cu line, (12) 14 to 4 AWG Al/Cu load Lugs tin plated aluminum connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080LBA265212 |
| Amperage Rating | 620/760 A |
| Application | 9080LB,9080LB52 |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9080LBA265212 |
| Connection | LOAD LUG 35 LBF.IN AWG 14...AWG 4 COPPER OR ALUMINIUM-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.5 in H x 5.88 in W x 3.13 in D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 180.67 |
| Gross Volume per Pack Metric | 2960.64 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.7100 lb |
| Gross Weight per Pack Metric | 1.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 3.5433 in |
| Height [Metric] | 8.8900 cm |
| Item Group | 21711 |
| Length | 9.0551 in |
| Length [Metric] | 22.6060 cm |
| Manufacturer | Schneider Electric |
| Material | Phenolic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372977&lang=en-us |
| Mounting | SURFACE MOUNT |
| Number Of Poles | 2 |
| Primary Connections|Pole | 2 |
| Returnable | Y |
| Secondary Connection|Pole | 12 |
| Series | 9080LB |
| Short Circuit Current Rating | 100 kA |
| Size | 3.13 IN,5.5 IN,5.88 IN in |
| Standard | CE-UL RECOGNIZED E60616 CCN XCFR2-CSA FILE 70361 CLASS 6228 01 |
| Stock Status | NONSTOCK |
| Substitute Product Catalog Number | 9080LB52 |
| Type | 9080LB52,POWER DISTRIBUTION BLOCK |
| UNSPSC | 39121410 |
| UPC 11 | 78590115708 |
| UPC 12 | 785901157083 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.9055 in |
| Width [Metric] | 14.7320 cm |
| Wire Size | 4 AWG to 500 kcmil, 14 to 4 AWG |
| 9080LB,9080LB52 |
| LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK |
| (2) 4 AWG to 500 kcmil Al/Cu line, (12) 14 to 4 AWG Al/Cu load |
| Lugs tin plated aluminum connection |
