Square D™

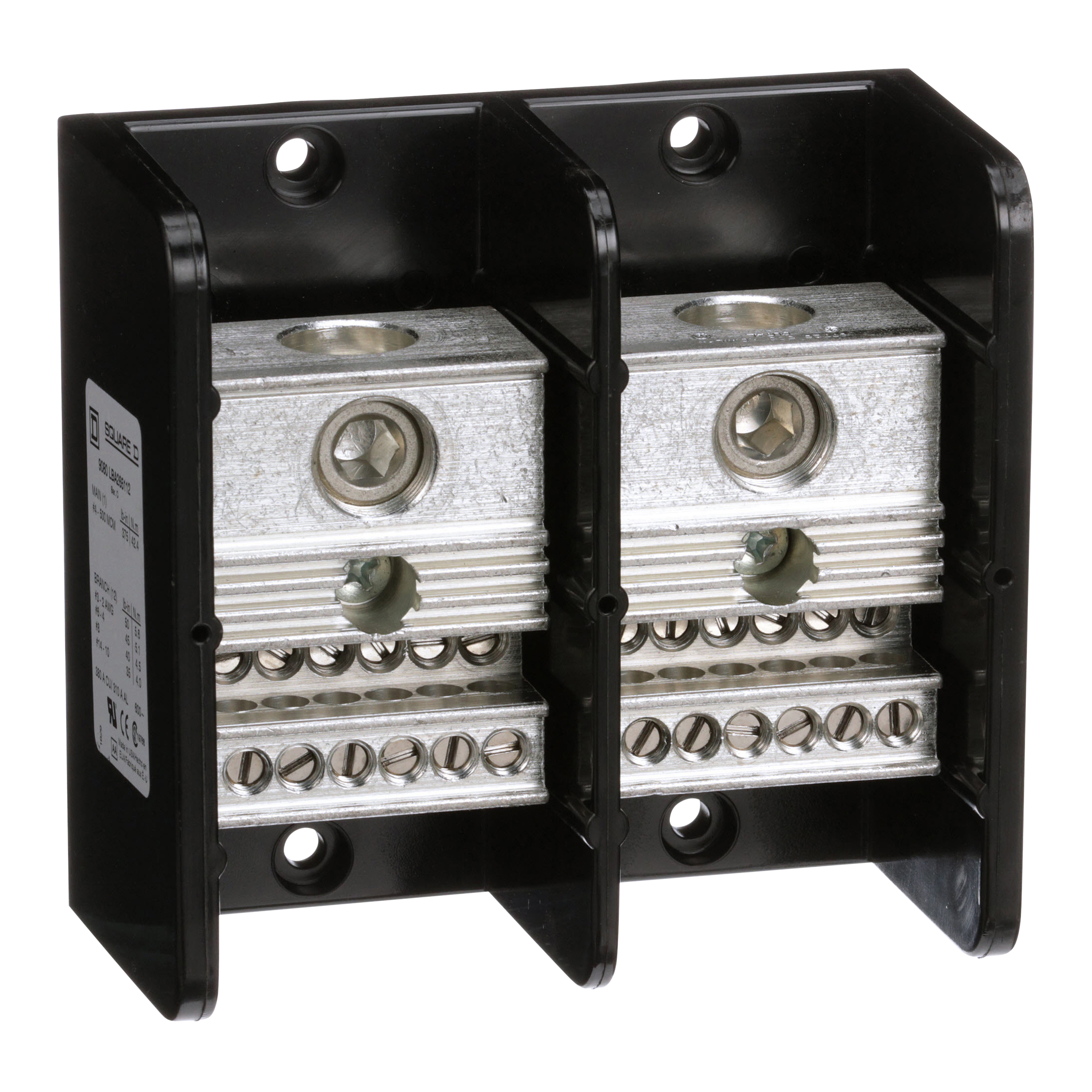

Square D™ 9080LBA265112 POWER DISTRIBUTIO
Custom_Product_Images_Illustration
Square D™
Square D™ 9080LBA265112 POWER DISTRIBUTIO
SKU280236
MFGR #9080LBA265112
Your Cost: $227.51/ea
List: Square D 9080LBA265112 POWER DISTRIBUTION BLOCK 600V 380A T-LB,(1)#4 to 500 AWG/kcmil (12)#14 to #2 AWG,2-Pole,380A 310A,600 V AC,9080LB,9080LB52,General Purpose Phenolic,Lugs Tin Plated Aluminum,Power Distribution Block
Square D 9080LBA265112 POWER DISTRIBUTION BLOCK 600V 380A T-LB,(1)#4 to 500 AWG/kcmil (12)#14 to #2 AWG,2-Pole,380A 310A,600 V AC,9080LB,9080LB52,General Purpose Phenolic,Lugs Tin Plated Aluminum,Power Distribution Block
Alternate Catalog Number 9080LBA265112 Amperage Rating 310/380 A Application 9080LB,9080LB52 ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9080LBA265112 Country of Origin US Currency USD Dimensions 5.5 in H x 3.17 in W x 3.13 in D EU RoHS Indicator Y Gross Volume Per Pack 177.59 Gross Volume per Pack Metric 2910.17 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.8900 lb Gross Weight per Pack Metric 1.31 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 8.8900 in Height [Metric] 8.8900 cm Item Group 21711 Length 21.8440 in Length [Metric] 21.8440 cm Manufacturer Schneider Electric Material Phenolic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372969&lang=en-us Mounting Surface Mount Number Of Poles 2 Primary Connections|Pole 1 Returnable Y Secondary Connection|Pole 12 Series 9080LB Short Circuit Current Rating 65 kA Size 3.13 IN,3.17 IN,5.5 IN in Standard CE-CSA FILE 70361 CLASS 6228 01-UL RECOGNIZED E60616 CCN XCFR2 Stock Status NONSTOCK Substitute Product Catalog Number 9080LB52 Type 9080LB52,POWER DISTRIBUTION BLOCK UNSPSC 39121410 UPC 11 78590115704 UPC 12 785901157045 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 14.9860 in Width [Metric] 14.9860 cm Wire Size 4 AWG to 500 kcmil, 14 to 2 AWG 9080LB,9080LB52 LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK (1) 4 AWG to 500 kcmil Al/Cu line, (12) 14 to 2 AWG Al/Cu load Lugs tin plated aluminum connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080LBA265112 |
| Amperage Rating | 310/380 A |
| Application | 9080LB,9080LB52 |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9080LBA265112 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.5 in H x 3.17 in W x 3.13 in D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 177.59 |
| Gross Volume per Pack Metric | 2910.17 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.8900 lb |
| Gross Weight per Pack Metric | 1.31 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 8.8900 in |
| Height [Metric] | 8.8900 cm |
| Item Group | 21711 |
| Length | 21.8440 in |
| Length [Metric] | 21.8440 cm |
| Manufacturer | Schneider Electric |
| Material | Phenolic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372969&lang=en-us |
| Mounting | Surface Mount |
| Number Of Poles | 2 |
| Primary Connections|Pole | 1 |
| Returnable | Y |
| Secondary Connection|Pole | 12 |
| Series | 9080LB |
| Short Circuit Current Rating | 65 kA |
| Size | 3.13 IN,3.17 IN,5.5 IN in |
| Standard | CE-CSA FILE 70361 CLASS 6228 01-UL RECOGNIZED E60616 CCN XCFR2 |
| Stock Status | NONSTOCK |
| Substitute Product Catalog Number | 9080LB52 |
| Type | 9080LB52,POWER DISTRIBUTION BLOCK |
| UNSPSC | 39121410 |
| UPC 11 | 78590115704 |
| UPC 12 | 785901157045 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.9860 in |
| Width [Metric] | 14.9860 cm |
| Wire Size | 4 AWG to 500 kcmil, 14 to 2 AWG |
| 9080LB,9080LB52 |
| LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK |
| (1) 4 AWG to 500 kcmil Al/Cu line, (12) 14 to 2 AWG Al/Cu load |
| Lugs tin plated aluminum connection |
