Square D™

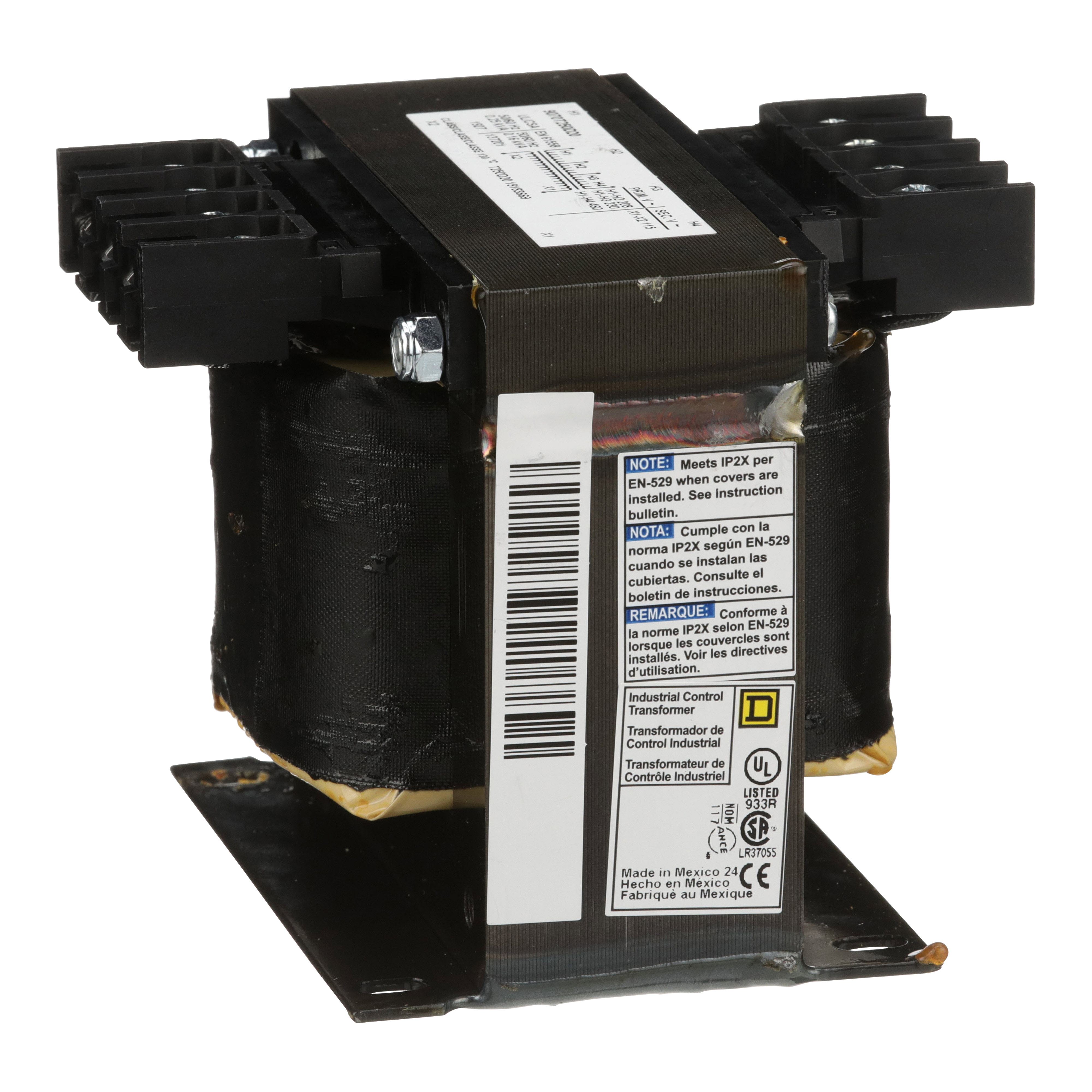

Square D™ 9070T250D20 Type T Industrial Control Transformer, 208/230/460 VAC Primary, 115 VAC Secondary, 160/250 VA Power Rating, 50/60 Hz, 1 Phase
Custom_Product_Images_Illustration
Square D™
Square D™ 9070T250D20 Type T Industrial Control Transformer, 208/230/460 VAC Primary, 115 VAC Secondary, 160/250 VA Power Rating, 50/60 Hz, 1 Phase
SKU1158369
MFGR #9070T250D20
Your Cost: $535.78/ea
Square D™ Control Transformer, Type T Industrial, Series: 9070, 208/230/460 VAC Primary, 115 VAC Secondary, 160/250 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 130 deg C Insulation, Open Enclosure, 80 deg C, 90.3 % Efficiency, 3.84 in H x 4.5 in W x 4.74 in D Dimensions
Square D™ Control Transformer, Type T Industrial, Series: 9070, 208/230/460 VAC Primary, 115 VAC Secondary, 160/250 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 130 deg C Insulation, Open Enclosure, 80 deg C, 90.3 % Efficiency, 3.84 in H x 4.5 in W x 4.74 in D Dimensions
Alternate Catalog Number 9070T250D20 Application Industrial Markets, OEM Commercial and Electrical Equipment Applications ARRA Compliant N Buy American Compliant N Catalog Number 9070T250D20 Country of Origin MX Currency USD Enclosure NOT RATED (OPEN DEVICE) EU RoHS Indicator Y Gross Volume Per Pack 340.34 Gross Volume per Pack Metric 5577.15 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 9.2200 lb Gross Weight per Pack Metric 4.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 16.5100 in Height [Metric] 16.5100 cm Item Group 16201 KVA Rating 250 VA,250 VA UL-250 VA CSA-250 VA NOM-160 VA CE Length 19.5580 in Length [Metric] 19.5580 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452945&lang=en-us Mounting Panel Returnable Y Standard CE-CSA FILE LR37055 GUIDE 184-N-90-UL LISTED FILE E61239 Temperature Rating 80 DEGREES C Type INDUSTRIAL CONTROL TRANSFORMER UNSPSC 39121002 UPC 11 78590190512 UPC 12 785901905127 Warranty Description Contractual Warranty:10 Years Width 17.2720 in Width [Metric] 17.2720 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Primary Voltage 208/230/460 V,208/230/460 V 115 V Secondary Voltage 115 V Industrial Markets, OEM Commercial and Electrical Equipment Applications INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes Copper winding
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9070T250D20 |
| Application | Industrial Markets, OEM Commercial and Electrical Equipment Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9070T250D20 |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NOT RATED (OPEN DEVICE) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 340.34 |
| Gross Volume per Pack Metric | 5577.15 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 9.2200 lb |
| Gross Weight per Pack Metric | 4.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 16.5100 in |
| Height [Metric] | 16.5100 cm |
| Item Group | 16201 |
| KVA Rating | 250 VA,250 VA UL-250 VA CSA-250 VA NOM-160 VA CE |
| Length | 19.5580 in |
| Length [Metric] | 19.5580 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452945&lang=en-us |
| Mounting | Panel |
| Returnable | Y |
| Standard | CE-CSA FILE LR37055 GUIDE 184-N-90-UL LISTED FILE E61239 |
| Temperature Rating | 80 DEGREES C |
| Type | INDUSTRIAL CONTROL TRANSFORMER |
| UNSPSC | 39121002 |
| UPC 11 | 78590190512 |
| UPC 12 | 785901905127 |
| Warranty Description | Contractual Warranty:10 Years |
| Width | 17.2720 in |
| Width [Metric] | 17.2720 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Primary Voltage | 208/230/460 V,208/230/460 V 115 V |
| Secondary Voltage | 115 V |
| Industrial Markets, OEM Commercial and Electrical Equipment Applications |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes |
| Copper winding |
